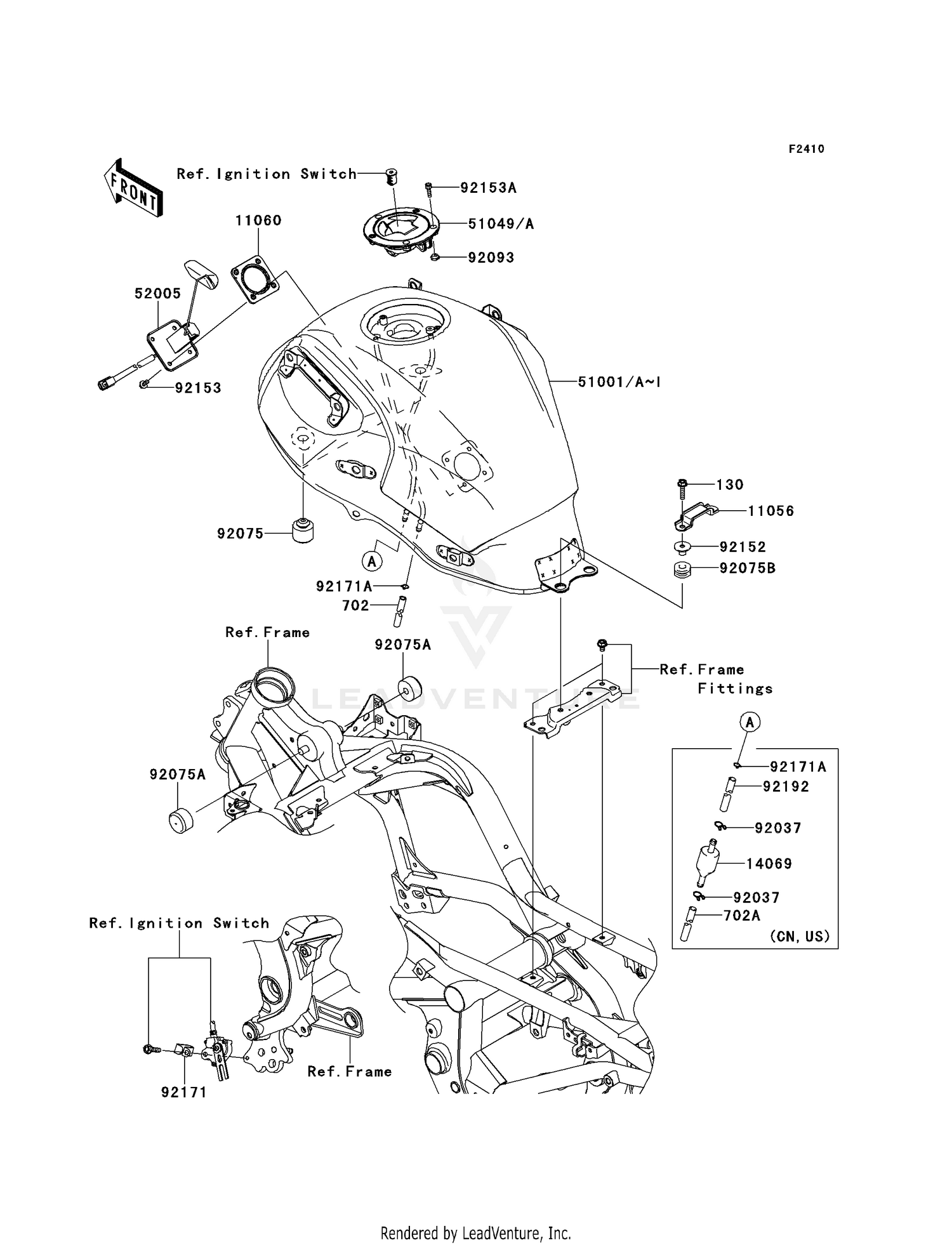

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET,SEAT
11056-0361
|
$6.06 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,FUEL GAUGE
11060-1952
|
$20.44 | ||
|
Available to order. Add to View Price |
|||
|
#14069
BREATHER,FUEL TANK
14069-1004
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#51001
TANK-COMP-FUEL,P.S.YE
51001-0387-15G
|
$1,096.17 | ||
|
Available to order. Add to View Price |
|||
|
#51001B
TANK-COMP-FUEL,M.F.S.
51001-0387-15V
|
$1,096.17 | ||
|
Available to order. Add to View Price |
|||
|
#51001F
TANK-COMP-FUEL,P.S.YE
51001-0388-15G
|
$1,096.17 | ||
|
Available to order. Add to View Price |
|||
|
#51001H
TANK-COMP-FUEL,M.F.S.
51001-0388-15V
|
$1,096.17 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-0039
Superseded by 51049-0744
|
$130.51 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,FUEL
52005-0023
|
$192.05 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1002
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,FUEL TANK
92075-125
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,10X24X12
92075-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,6.5X10X13.1
92152-0910
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,5X12
92153-1421
Superseded by 92154-1856
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,5X16
92153-1616
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0911
|
$7.41 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP,8X0.7
92171-1973
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP,8X0.7
92171-1973
|
$1.31 | ||
|
Unavailable |
|||
|
#130
BOLT-FLANGED,6X25
130BA0625
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,6X9X750
702A06750
|
$21.19 | ||
|
Available to order. Add to View Price |
|||
|
#702A
TUBE-RUBBER,7X10X800
702A07100
Superseded by 702A07800
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,BREATHER
92192-0828
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
