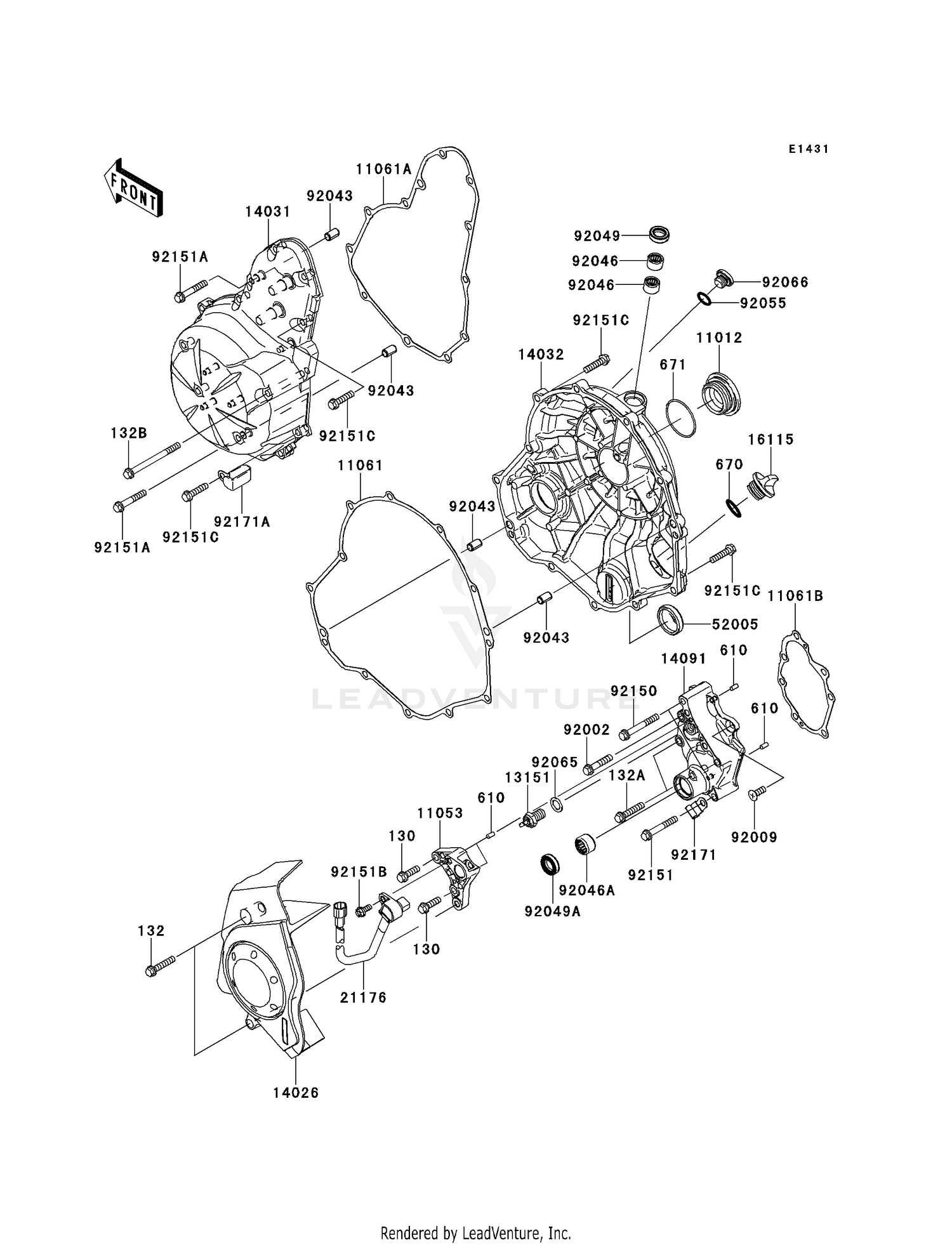

Engine Cover(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X20
130BA0620
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X30
132BB0630
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X30
132BC0630
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,6X70
132BC0670
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#610
ROLLER,4X8
610A0408
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,20MM
670B2020
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,40MM
671B2540
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,GENERATOR
11012-1817
|
$28.93 | ||
|
Available to order. Add to View Price |
|||
|
#11053
BRACKET
11053-1739
|
$27.42 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET,CLUTCH COVER
11061-0164
|
$20.73 | ||
|
Available to order. Add to View Price |
|||
|
#11061A
GASKET,GENERATOR COVER
11061-0165
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#11061B
GASKET,TRANSMISSION COVER
11061-0166
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#13151
SWITCH-COMP,NEUTRAL
13151-1080
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#14026
COVER-CHAIN
14026-0076
Superseded by 14026-0092
|
$70.24 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR
14031-0096
|
$114.36 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH
14032-0115
|
$181.22 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,TRANSMISSION
14091-0720
|
$80.09 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-1053
|
$11.77 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,SPEED
21176-0065
|
$126.01 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-0071
|
$24.34 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X30
92002-1534
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X16
92009-1360
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6.2X8X14
92043-1263
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,HK1210FM
92046-1010
Superseded by 92046-0034
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,HK1312
92046-1148
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,CLUTCH RELEASE
92049-1475
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,TC13225.5
92049-1519
|
$13.07 | ||
|
Available to order. Add to View Price |
|||
|
#92055
O RING,METER GEAR
92055-1011
Superseded by 92055-1021
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92065
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-0154
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT-FLANGED-SMALL,6X45
92150-1884
Superseded by 132BB0645
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,6X40
92151-1131
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,6X35
92151-1135
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92151B
BOLT,FLANGED,5X12
92151-1305
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#92151C
BOLT,FLANGED-SMALL,6X25
92151-1930
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0813
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-0911
|
$7.41 | ||
|
Available to order. Add to View Price |
|||
