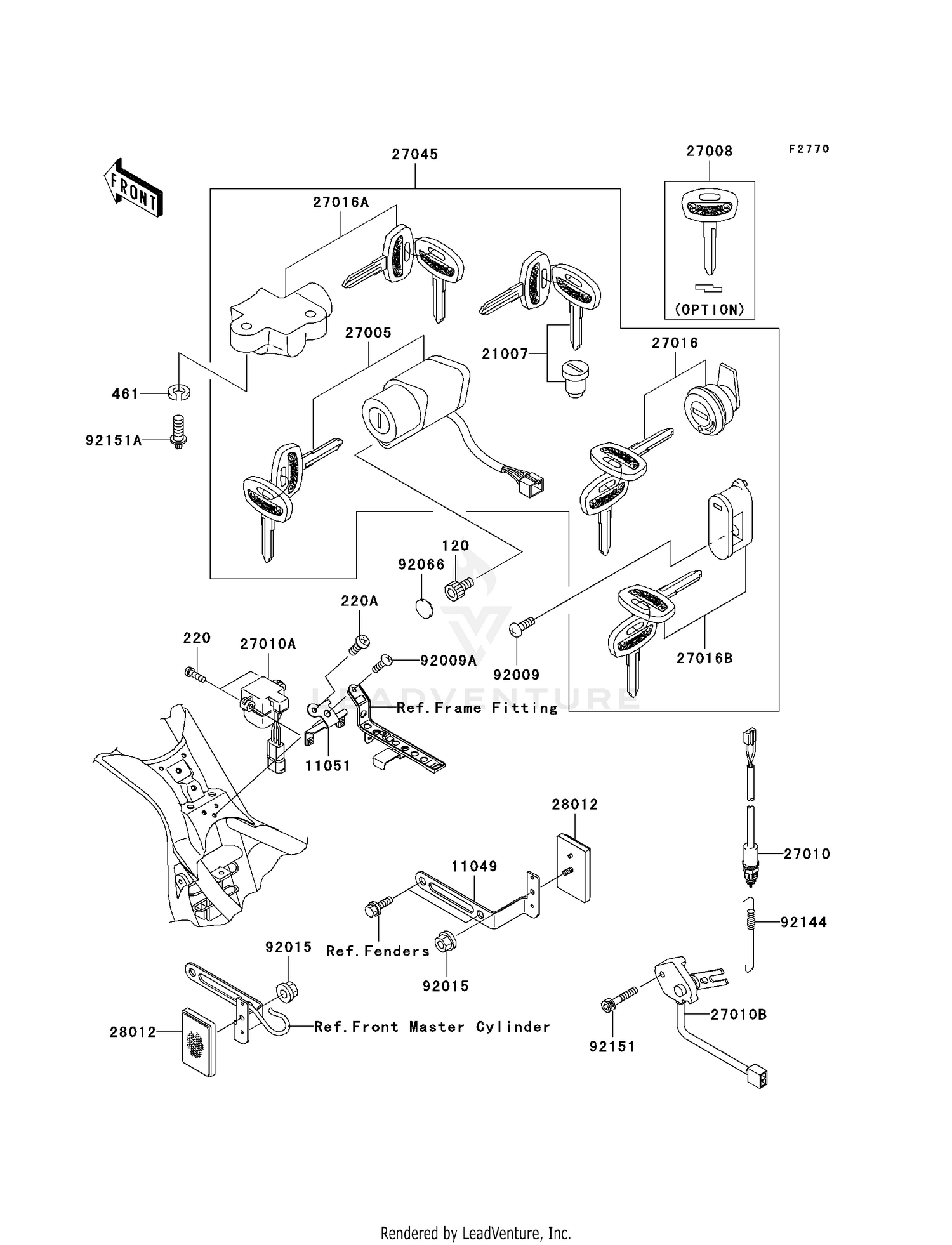

2005 Kawasaki VULCAN 1500 CLASSIC IGNITION SWITCH/LOCKS/REFLECTORS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,5X12
120P0512
Superseded by 120CA0512
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X20
220C0420
Superseded by 220AB0420
|
$0.94 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,6X12
220C0612
Superseded by 220AB0612
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461L0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#11049
BRACKET
11049-1820
|
$11.06 | ||
|
Available to order. Add to View Price |
|||
|
#11051
BRACKET,DOWN SENSOR
11051-1763
|
$13.55 | ||
|
Available to order. Add to View Price |
|||
|
#21007
SWITCH-ASSY,TANK CAP
21007-5047
Superseded by 27045-5024
|
$68.03 | ||
|
Available to order. Add to View Price |
|||
|
#27005
SWITCH-ASSY-IGNITION
27005-1256
|
$170.41 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK
27008-1208
|
$24.58 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,REAR BRAKE
27010-1412
|
$34.21 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,DOWN SENSOR
27010-1416
|
$176.73 | ||
|
Available to order. Add to View Price |
|||
|
#27010B
SWITCH,SIDE STAND
27010-1464
|
$68.82 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,PAD
27016-5267
Superseded by 27016-5182
|
$68.48 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK-ASSY,STEERING
27016-5269
|
$65.14 | ||
|
Available to order. Add to View Price |
|||
|
#27016B
LOCK-ASSY,HELMET
27016-5316
Superseded by 27016-5311
|
$63.44 | ||
|
Available to order. Add to View Price |
|||
|
#27045
SWITCH-ASSY
27045-5245
|
$563.43 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX,FR
28012-1009
|
$24.59 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,5X12
92009-1296
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X16
92009-1621
Superseded by 92009-1694
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,5MM
92015-1656
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1435
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,REAR BRAKE SWITCH
92144-1141
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X35
92151-1390
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,TORX,6X22
92151-1946
Superseded by 92154-1858
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
