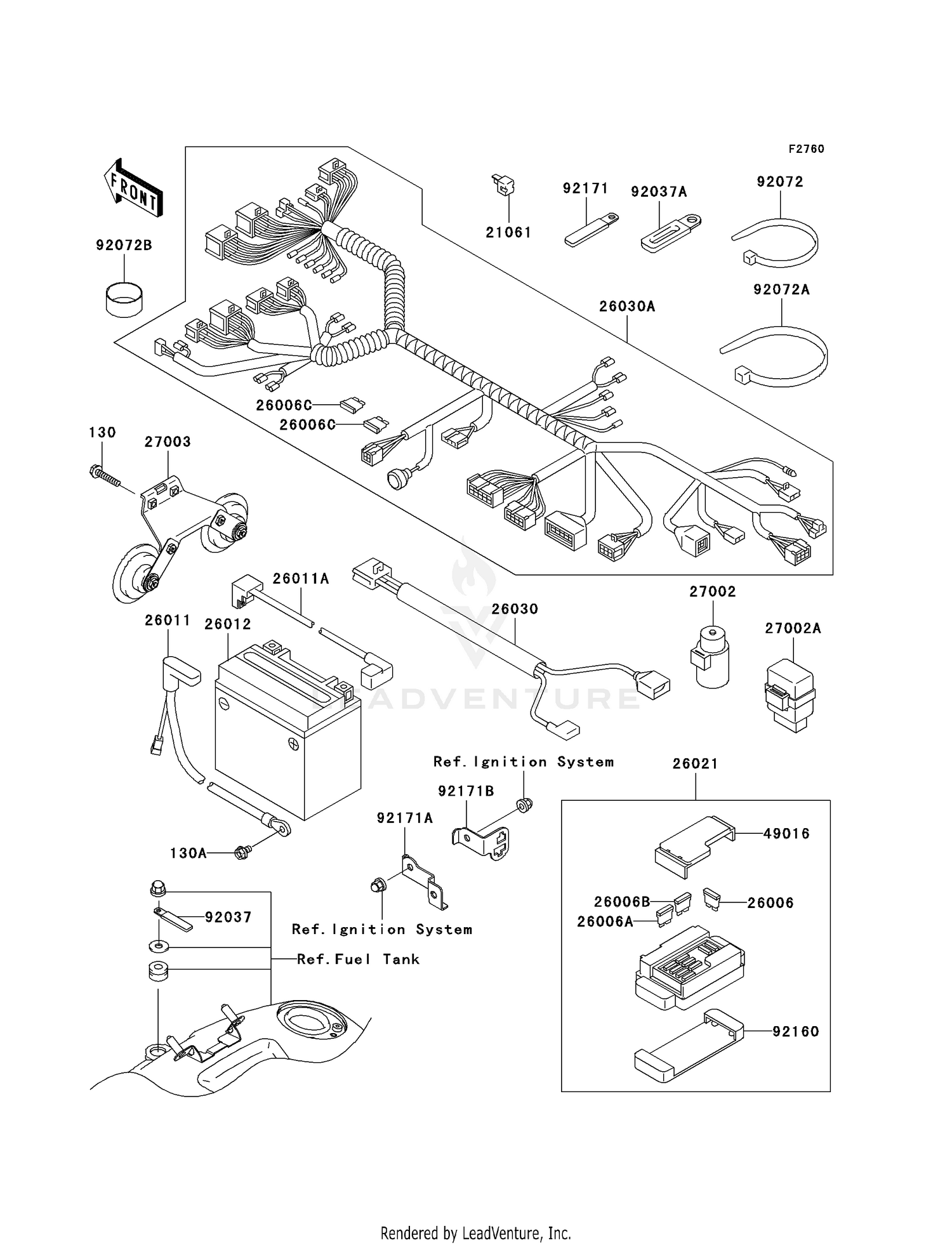

Chassis Electrical Equipment Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X30
130J0630
Superseded by 130BB0630
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X10
130V0610
Superseded by 130BA0610
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#21061
RECTIFIER
21061-1003
|
$28.45 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,BLADE,30A,GREEN
26006-1006
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006A
FUSE,BLADE,10A,RED
26006-1007
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26006B
FUSE,BLADE,15A,BLUE
26006-1061
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#26006C
FUSE,BLADE,15A,BLUE
26006-1069
Superseded by 26006-1061
|
$5.29 | ||
|
Unavailable |
|||
|
#26011
WIRE-LEAD,BATTERY(-)
26011-1750
|
$55.62 | ||
|
Available to order. Add to View Price |
|||
|
#26011A
WIRE-LEAD,BATTERY(+)
26011-1764
|
$46.02 | ||
|
Available to order. Add to View Price |
|||
|
#26012
BATTERY,FTZ16-BS,12V 18AH
26012-1371
Superseded by 26012-0954
|
$164.50 | ||
|
Available to order. Add to View Price |
|||
|
#26021
JUNCTION BOX
26021-0002
Superseded by 26021-0076
|
$163.50 | ||
|
Available to order. Add to View Price |
|||
|
#26030
HARNESS,SUB
26030-1450
|
$20.23 | ||
|
Available to order. Add to View Price |
|||
|
#26030A
HARNESS,MAIN
26030-1852
|
$566.49 | ||
|
Available to order. Add to View Price |
|||
|
#27002
RELAY-ASSY
27002-1051
|
$50.53 | ||
|
Available to order. Add to View Price |
|||
|
#27002A
RELAY-ASSY,SIGNAL LAMP
27002-1113
|
$111.12 | ||
|
Available to order. Add to View Price |
|||
|
#27003
HORN
27003-1406
|
$172.14 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,FUSE
49016-0005
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HARNESS
92037-113
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1780
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=202
92072-1195
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=365
92072-1197
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND
92072-1393
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,JUNCTION BOX
92160-1650
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,L=60
92171-0652
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-1262
|
$7.46 | ||
|
Available to order. Add to View Price |
|||
|
#92171B
CLAMP,HARNESS
92171-1263
|
$7.46 | ||
|
Available to order. Add to View Price |
|||
