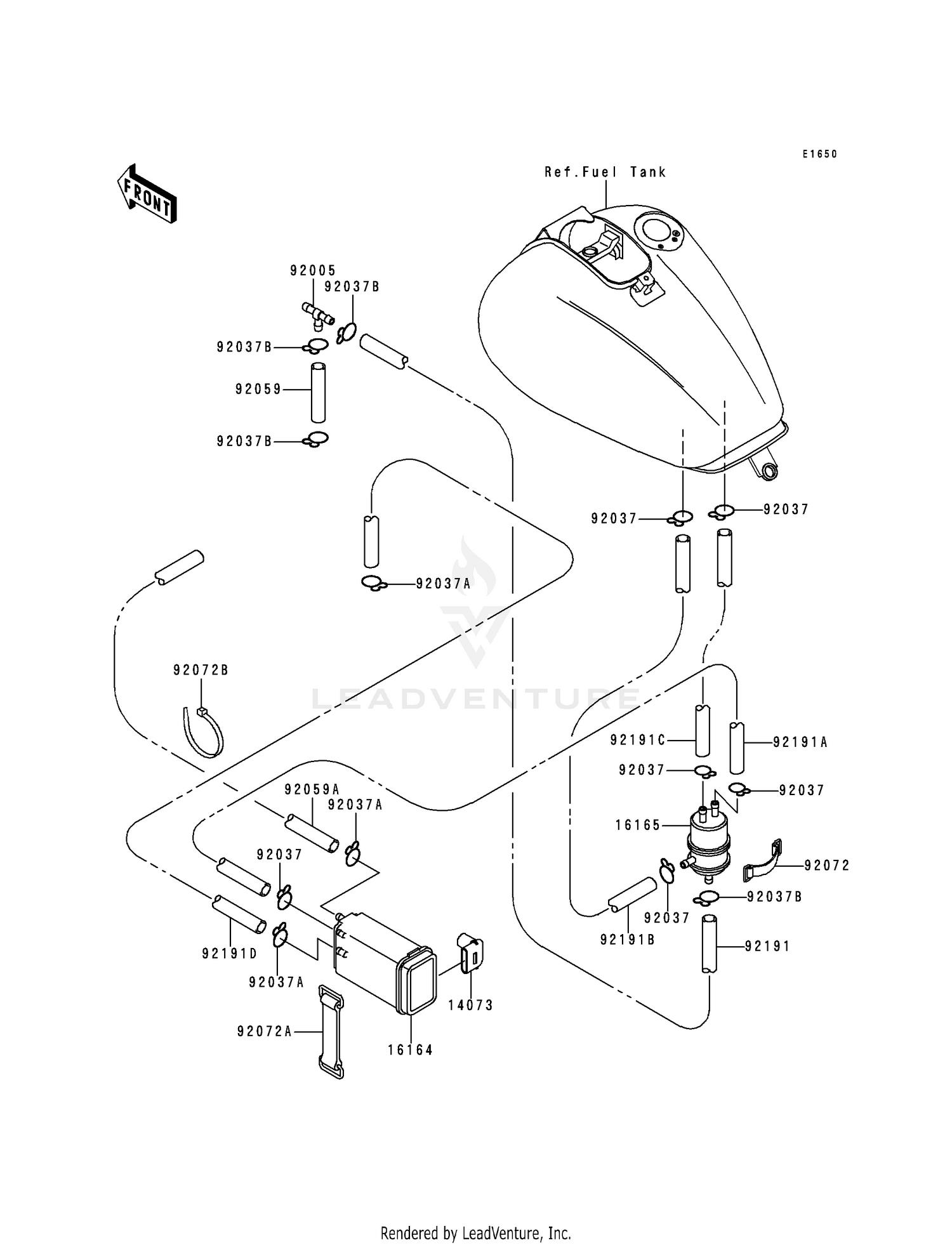

Fuel Evaporative System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14073
DUCT,CANISTER
14073-1219
|
$20.06 | ||
|
Available to order. Add to View Price |
|||
|
#16164
CANISTER
16164-1070
|
$139.30 | ||
|
Available to order. Add to View Price |
|||
|
#16165
SEPARATOR
16165-1001
|
$86.53 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,TUBE,T-TYPE
92005-1017
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,HOSE
92037-1104
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP
92037-1712
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,4X9X935,WHITE
92059-1193
Superseded by 92059-1916
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,7X12X1250,GREEN
92059-1398
Superseded by 92190-1443
|
$39.55 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=50
92072-066
Superseded by 92072-1419
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,BATTERY
92072-1188
|
$13.26 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,L=202
92072-1195
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,WHITE
92191-1062
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#92191A
TUBE,5X8X232,BLUE
92191-1070
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#92191B
TUBE,TANK-SEPARATOR,R
92191-1120
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#92191C
TUBE,TANK-SEPARATOR,B
92191-1121
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#92191D
TUBE
92191-1267
|
$25.10 | ||
|
Available to order. Add to View Price |
|||
