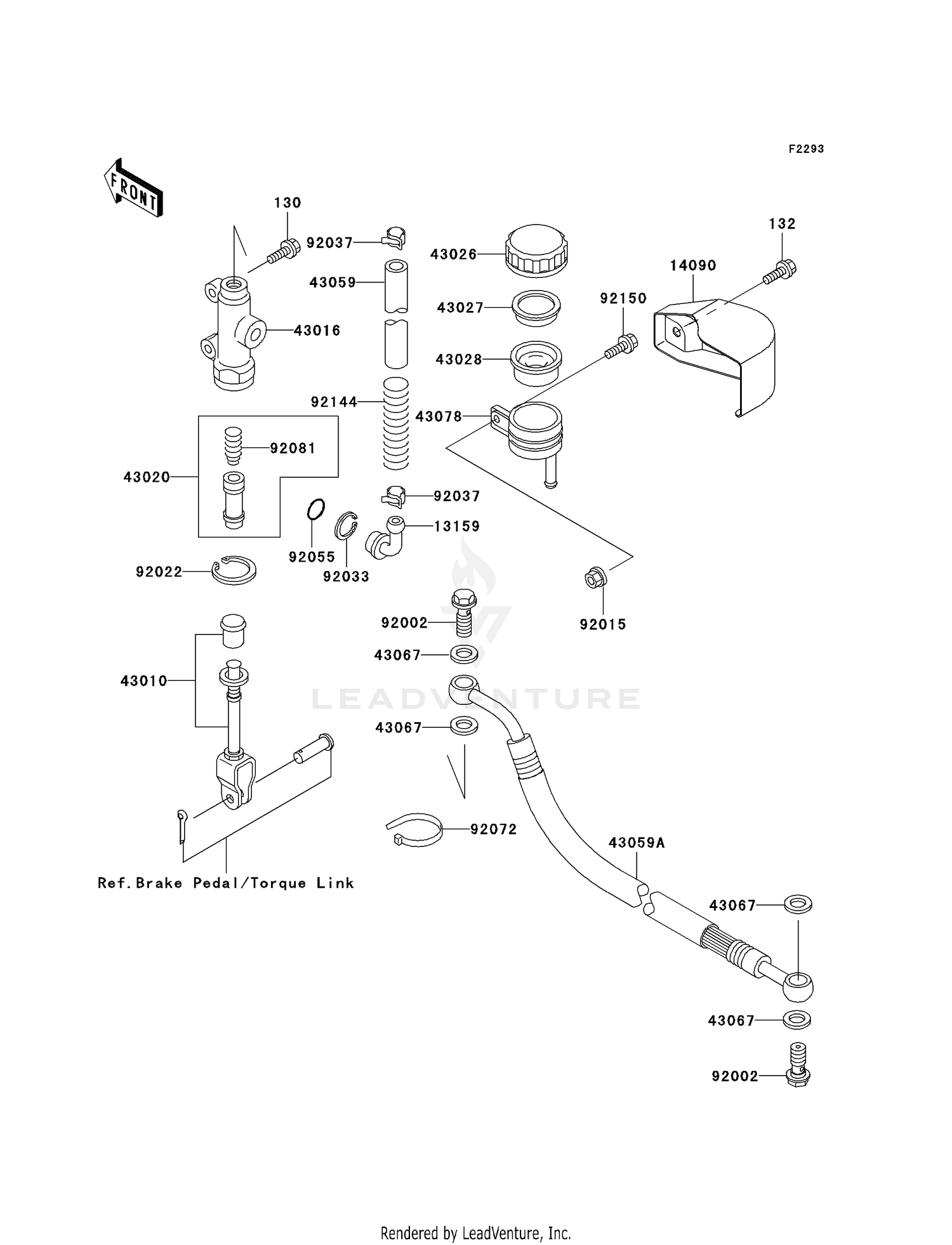

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X30
130J0830
Superseded by 130BB0830
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X12
132E0612
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR,RR MASTER CYLINDER
13159-1052
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,RESERVOIR
14090-1705
Superseded by 14090-1939
|
$76.08 | ||
|
Available to order. Add to View Price |
|||
|
#43010
ROD-ASSY-BRAKE
43010-1055
|
$66.41 | ||
|
Available to order. Add to View Price |
|||
|
#43016
CYLINDER-MASTER,RR
43016-1122
|
$186.32 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1057
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1051
|
$32.90 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1051
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,MASTER CYLINDER
43028-1057
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#43059
HOSE-BRAKE,RR MASTER
43059-1939
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#43059A
HOSE-BRAKE,RR
43059-1959
|
$116.57 | ||
|
Available to order. Add to View Price |
|||
|
#43067
WASHER-SEAL,10.1X14.5X1.5
43067-001
Superseded by 49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR,RR MASTER CYLINDER
43078-1082
|
$27.16 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1700
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022
RING-SNAP,20.9X24.6X1.2
92022-1601
Superseded by 92033-0079
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20.5MM
92033-1186
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,BRAKE HOSE
92037-1547
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,14.8X2.4
92055-1251
Superseded by 92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=202
92072-1195
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,MASTER CYLINDER
92081-1737
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,PROTECTOR
92144-1513
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X25
92150-1829
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
