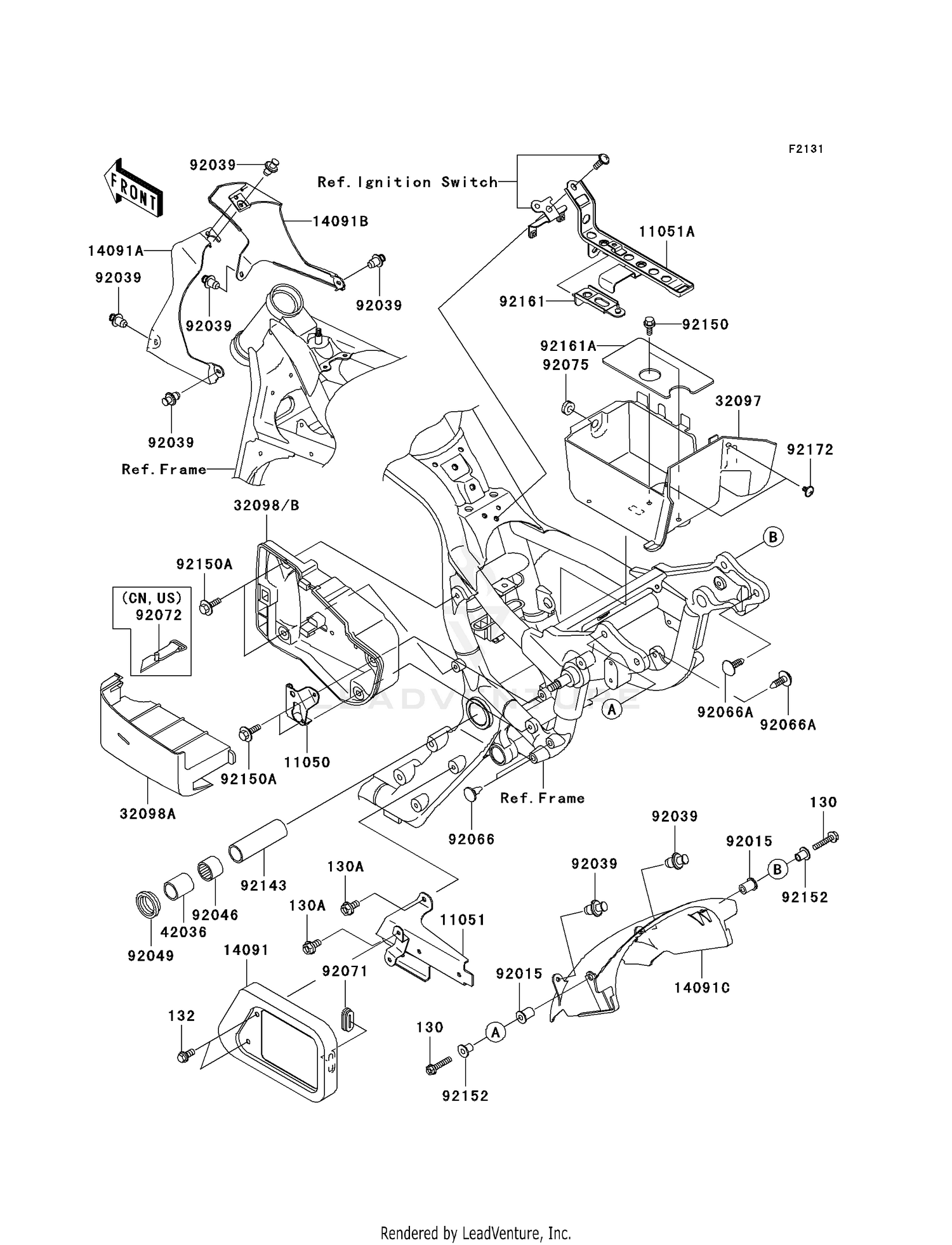

Frame Fittings Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED
130J0525
Superseded by 130BB0525
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X12
130J0612
Superseded by 130BB0612
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X12
132J0612
Superseded by 132BB0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#11050
BRACKET,SIDE COVER LO
11050-1958
|
$19.73 | ||
|
Available to order. Add to View Price |
|||
|
#11051
BRACKET,REGULATOR
11051-1163
|
$66.88 | ||
|
Available to order. Add to View Price |
|||
|
#11051A
BRACKET,BATTERY BAND
11051-1798
|
$31.11 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,REGULATOR
14091-1079
|
$55.86 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,HEAD PIPE,LH
14091-1285
|
$98.43 | ||
|
Available to order. Add to View Price |
|||
|
#14091B
COVER,HEAD PIPE,RH
14091-1286
|
$120.79 | ||
|
Available to order. Add to View Price |
|||
|
#14091C
COVER,SEAT UNDER
14091-1354
|
$90.49 | ||
|
Available to order. Add to View Price |
|||
|
#32097
CASE-BATTERY
32097-1175
|
$38.41 | ||
|
Available to order. Add to View Price |
|||
|
#32098
CASE-TOOL
32098-1125
|
$135.80 | ||
|
Available to order. Add to View Price |
|||
|
#32098A
CASE-TOOL,COVER
32098-1126
|
$131.46 | ||
|
Available to order. Add to View Price |
|||
|
#32098B
CASE-TOOL
32098-1127
|
$135.80 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,L=45
42036-1330
|
$28.55 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,WELL,5MM
92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-1227
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,BM2824
92046-1202
|
$24.21 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,28X34X5.7
92049-1181
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1103
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG
92066-1553
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-0013
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND
92072-1331
|
$23.96 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1067
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,20.2X27X90
92143-1878
|
$33.16 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X14
92150-1133
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT
92150-1198
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1304
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,BATTERY BAND
92161-1096
|
$12.17 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,BATTERY
92161-1097
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X10
92172-0005
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
