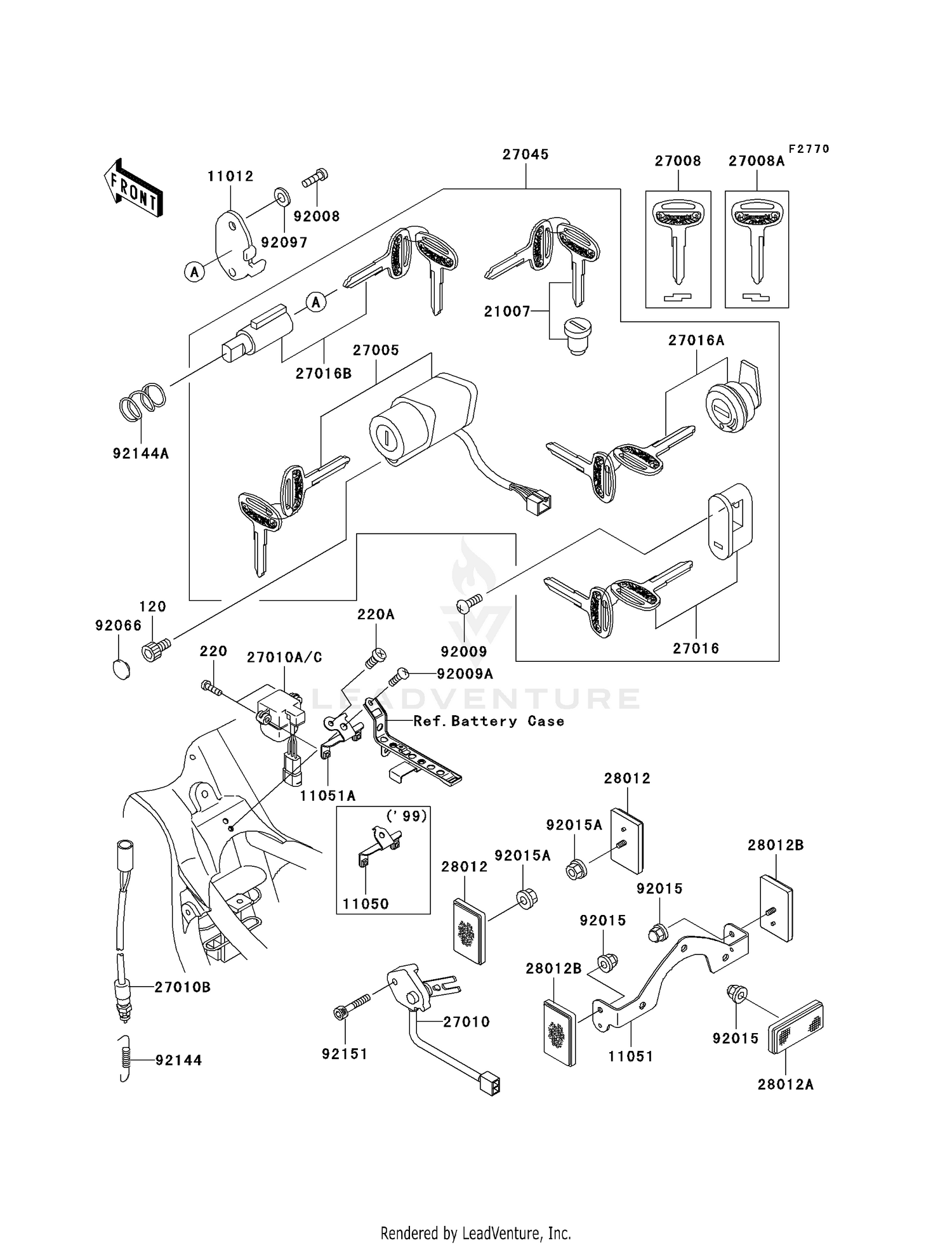

Ignition Switch/locks/reflectors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,5X12
120P0512
Superseded by 120CA0512
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X20
220C0420
Superseded by 220AB0420
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,STEERING LOCK
11012-1586
|
$7.46 | ||
|
Available to order. Add to View Price |
|||
|
#11050
BRACKET
11050-1954
|
$9.41 | ||
|
Available to order. Add to View Price |
|||
|
#11051
BRACKET,REFLECTOR
11051-1100
|
$14.08 | ||
|
Available to order. Add to View Price |
|||
|
#21007
SWITCH-ASSY,TANK CAP
21007-5041
Superseded by 27045-5024
|
$69.96 | ||
|
Available to order. Add to View Price |
|||
|
#27005
SWITCH-ASSY-IGNITION
27005-1215
|
$191.96 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK,#A
27008-1179
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#27008A
KEY-LOCK,BLANK,#B
27008-1180
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,SIDE STAND
27010-1359
Superseded by 27010-1464
|
$70.77 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH
27010-1393
|
$148.95 | ||
|
Available to order. Add to View Price |
|||
|
#27010B
SWITCH,REAR BRAKE
27010-1412
|
$35.18 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,HELMET
27016-5243
Superseded by 27016-5311
|
$65.23 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK-ASSY,PAD
27016-5244
Superseded by 27016-5182
|
$70.42 | ||
|
Available to order. Add to View Price |
|||
|
#27016B
LOCK-ASSY,STEERING
27016-5255
|
$82.59 | ||
|
Available to order. Add to View Price |
|||
|
#27045
SWITCH-ASSY
27045-5082
Superseded by 27045-5272
|
$441.26 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX
28012-1003
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX
28012-1077
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#28012B
REFLECTOR-REFLEX
28012-1088
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#92008
SCREW,3.51MM
92008-007
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,5X12
92009-1296
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X16
92009-1621
Superseded by 92009-1694
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGE CAP,5MM
92015-1263
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,5MM
92015-1656
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-1435
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#92097
WASHER,WAVE
92097-003
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,REAR BRAKE SWITCH
92144-1141
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,STEERING LOCK
92144-1222
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X35
92151-1390
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
