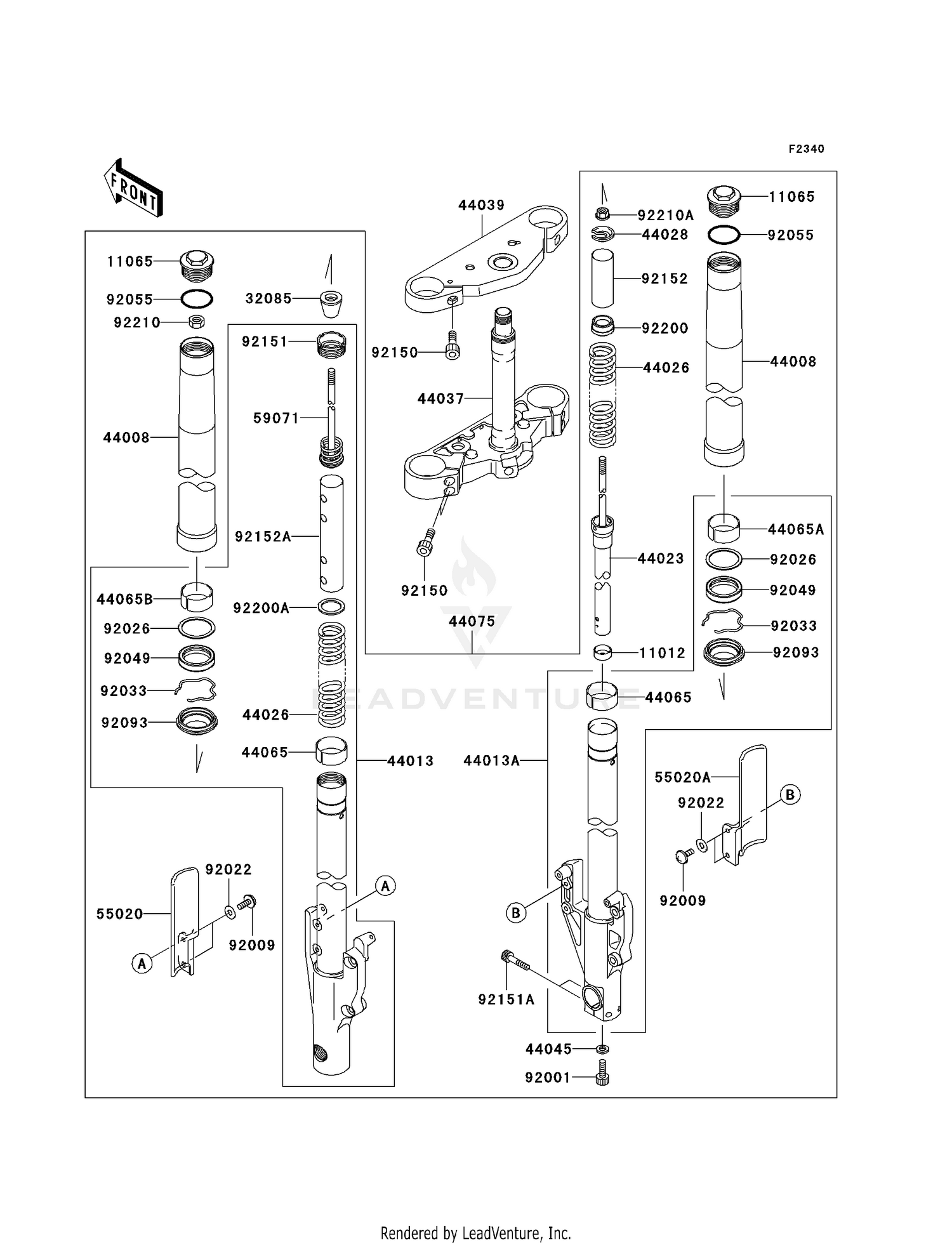

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
11012-1761
|
$33.57 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-1207
|
$44.25 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER
32085-1537
|
$34.63 | ||
|
Available to order. Add to View Price |
|||
|
#44008
PIPE-FORK OUTER
44008-1053
|
$1,061.12 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER,LH
44013-1489
|
$682.48 | ||
|
Available to order. Add to View Price |
|||
|
#44013A
PIPE-FORK INNER,RH
44013-1490
|
$682.48 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-1158
|
$490.91 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1732
|
$102.13 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE-FORK SPRING
44028-1076
|
$13.68 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1421
|
$814.76 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1317
|
$306.97 | ||
|
Available to order. Add to View Price |
|||
|
#44045
GASKET,FORK CYLINDER BOLT
44045-051
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK,LH
44065-1137
|
$25.64 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK
44065-1138
Superseded by 44065-1139
|
$17.08 | ||
|
Available to order. Add to View Price |
|||
|
#44065B
BUSHING-FRONT FORK
44065-1139
|
$17.08 | ||
|
Unavailable |
|||
|
#44075
DAMPER-SET-FORK
44075-1145
|
$1,370.15 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,FORK,LH
55020-1749
Superseded by 55020-0076
|
$51.44 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,FORK,RH
55020-1750
Superseded by 55020-0077
|
$51.44 | ||
|
Available to order. Add to View Price |
|||
|
#59071
JOINT
59071-1188
|
$56.66 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FORK CYLINDER
92001-1464
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X16
92009-1776
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X16X1.0
92022-1654
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1598
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1222
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1590
|
$29.42 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FORK CAP
92055-1497
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,DUST
92093-1551
|
$29.15 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8MM
92150-1031
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT
92151-1971
|
$12.04 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT
92151-1974
|
$12.61 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,FORK,L=85
92152-1337
|
$31.88 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR
92152-1381
|
$31.88 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1576
|
$23.96 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-1604
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-1330
|
$23.61 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT
92210-1346
|
$12.04 | ||
|
Available to order. Add to View Price |
|||
