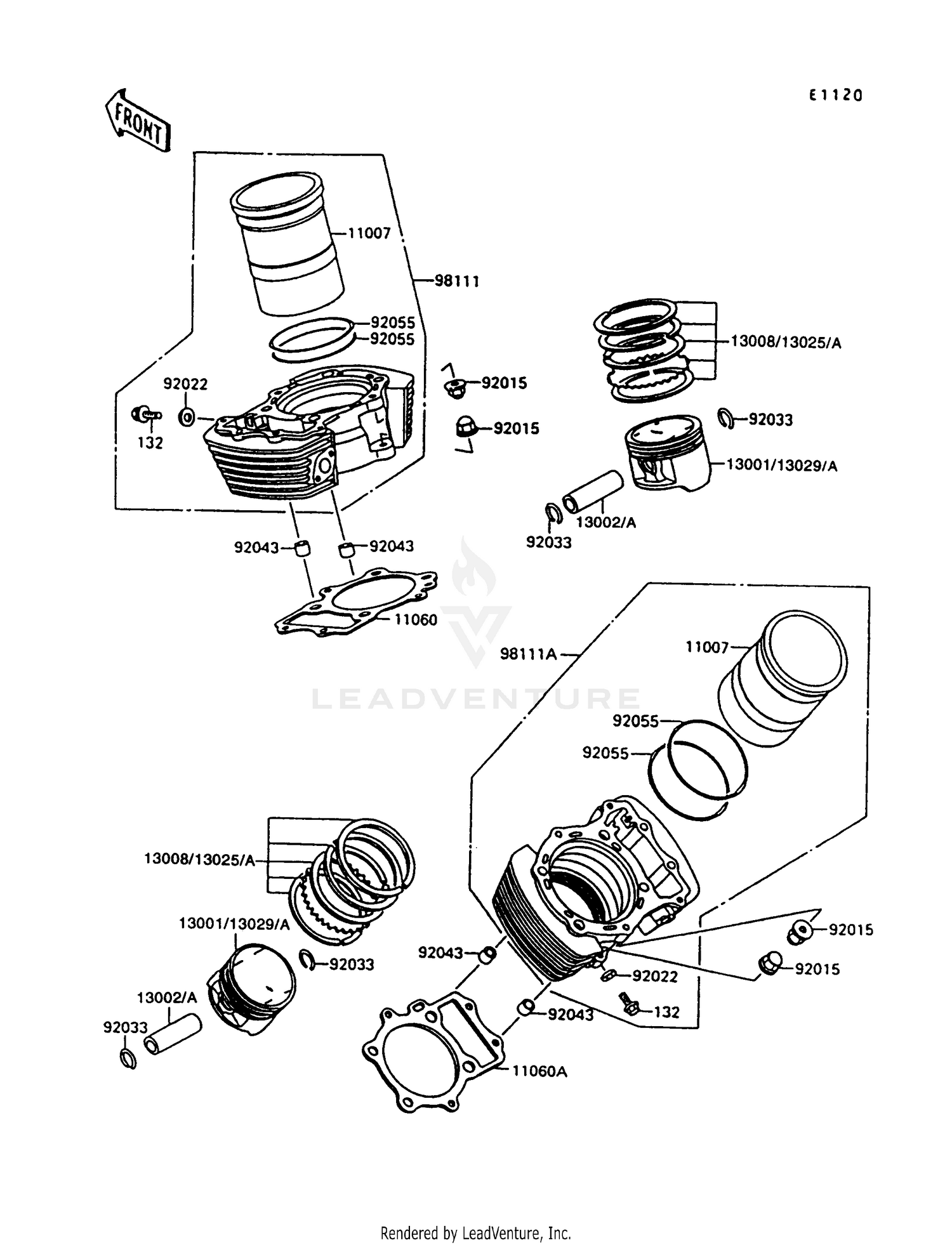

1998 Kawasaki VULCAN 1500 CYLINDER/PISTON(S) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL
132E0610
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#11007
LINER-CYLINDER
11007-1097
Superseded by 11007-1176
|
$192.97 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,CYLINDER BASE,
11060-1737
Superseded by 11061-1083
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#11060A
GASKET,CYLINDER BASE,RR
11060-1738
Superseded by 11061-1523
|
$16.81 | ||
|
Unavailable |
|||
|
#13001
PISTON-ENGINE,STD
13001-1469
|
$152.51 | ||
|
Available to order. Add to View Price |
|||
|
#13002A
PIN-PISTON
13002-1107
|
$35.07 | ||
|
Available to order. Add to View Price |
|||
|
#13008
RING-SET-PISTON,STD
13008-1172
|
$90.12 | ||
|
Available to order. Add to View Price |
|||
|
#13025
RING-SET-PISTON L,O/S 0.50
13025-1081
|
$96.61 | ||
|
Available to order. Add to View Price |
|||
|
#13029
PISTON-ENGINE L,O/S 0.50
13029-1173
|
$163.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CAP,8MM
92015-1371
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1226
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,13X16X14
92043-1349
Superseded by 92043-1608
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,110.5X2.5
92055-1371
|
$9.90 | ||
|
Available to order. Add to View Price |
|||
|
#98111
CYLINDER-COMP-ENGINE,FR
98111-1052
|
$779.74 | ||
|
Available to order. Add to View Price |
|||
|
#98111A
CYLINDER-COMP-ENGINE,RR
98111-1053
|
$779.74 | ||
|
Available to order. Add to View Price |
|||
