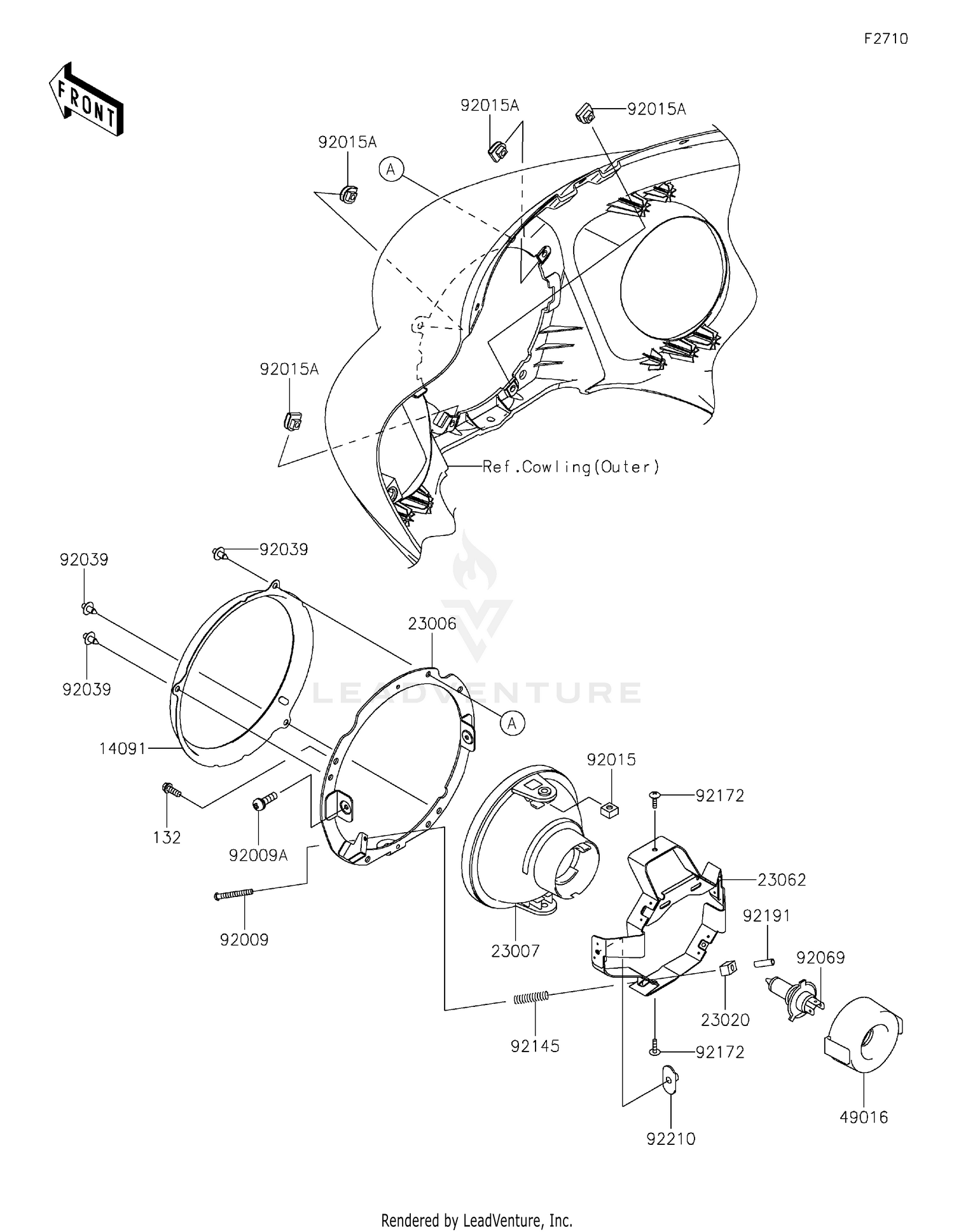

Headlight(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X16
132BA0616
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,RETAINER
14091-1620
|
$91.62 | ||
|
Available to order. Add to View Price |
|||
|
#23006
RIM-LAMP
23006-0016
|
$83.92 | ||
|
Available to order. Add to View Price |
|||
|
#23007
LENS-COMP,HEAD LAMP
23007-1396
|
$141.11 | ||
|
Available to order. Add to View Price |
|||
|
#23020
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#23062
BRACKET-COMP,HEAD LAMP
23062-1132
|
$48.51 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,SOCKET
49016-1203
|
$11.71 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,FOCUS ADJUST,4X60
92009-1816
|
$5.72 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X16
92009-1879
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,5MM
92015-1157
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CLIP,6MM
92015-1904
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-0083
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 60/55W,H4
92069-0050
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,HEAD LAMP LENS
92145-1268
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,TAPPING,4X16
92172-0391
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,3.5X5.5X19
92191-1217
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,SPECIAL,5MM
92210-1060
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
