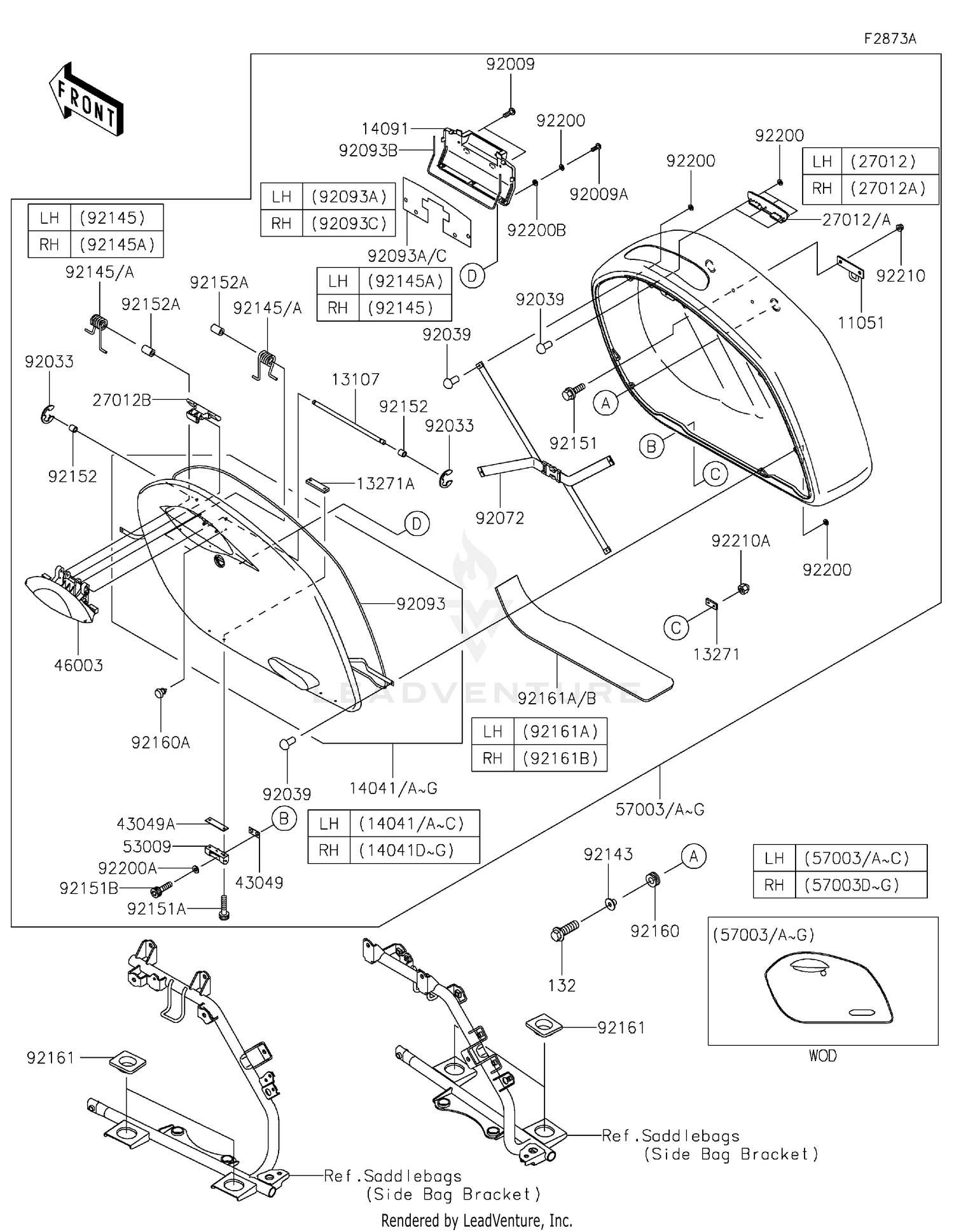

Saddlebags(side Bag) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11051
BRACKET,SIDE BAG BODY
11051-1104
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT
13107-1403
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE
13271-1146
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#13271A
PLATE
13271-1147
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
|
#14041
COVER-COMP,BAG,LH,C.I.BLUE
14041-0056-25U
|
$233.33 | ||
|
Available to order. Add to View Price |
|||
|
#14041A
COVER-COMP,BAG,LH,M.S.BLACK
14041-0056-660
|
$233.33 | ||
|
Available to order. Add to View Price |
|||
|
#14041B
COVER-COMP,BAG,LH,P.C.WHITE
14041-0056-667
|
$245.07 | ||
|
Available to order. Add to View Price |
|||
|
#14041C
COVER-COMP,BAG,LH,C.C.RED
14041-0056-L1
|
$245.07 | ||
|
Available to order. Add to View Price |
|||
|
#14041D
COVER-COMP,BAG,RH,C.I.BLUE
14041-0057-25U
|
$245.07 | ||
|
Available to order. Add to View Price |
|||
|
#14041E
COVER-COMP,BAG,RH,M.S.BLACK
14041-0057-660
|
$233.33 | ||
|
Available to order. Add to View Price |
|||
|
#14041F
COVER-COMP,BAG,RH,P.C.WHITE
14041-0057-667
|
$245.07 | ||
|
Available to order. Add to View Price |
|||
|
#14041G
COVER-COMP,BAG,RH,C.C.RED
14041-0057-L1
|
$245.07 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,LID MAINTENANCE
14091-1069
|
$18.63 | ||
|
Available to order. Add to View Price |
|||
|
#27012
HOOK,LOCK PLATE,LH
27012-1571
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#27012A
HOOK,LOCK PLATE,RH
27012-1572
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#27012B
HOOK,HANDLE
27012-1575
|
$18.85 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING
43049-1084
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#43049A
PACKING
43049-1086
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#46003
HANDLE,SIDE BAG
46003-1505
|
$179.87 | ||
|
Available to order. Add to View Price |
|||
|
#53009
HINGE,SIDE BAG
53009-1104
|
$24.91 | ||
|
Available to order. Add to View Price |
|||
|
#57003
BAG-ASSY,LH,C.I.BLUE
57003-0060-25U
|
$1,066.00 | ||
|
Available to order. Add to View Price |
|||
|
#57003A
BAG-ASSY,LH,M.S.BLACK
57003-0060-660
|
$1,066.00 | ||
|
Available to order. Add to View Price |
|||
|
#57003B
BAG-ASSY,LH,P.C.WHITE
57003-0060-667
|
$1,066.00 | ||
|
Available to order. Add to View Price |
|||
|
#57003C
BAG-ASSY,LH,C.C.RED
57003-0060-L1
|
$1,066.00 | ||
|
Available to order. Add to View Price |
|||
|
#57003D
BAG-ASSY,RH,C.I.BLUE
57003-0061-25U
|
$1,066.00 | ||
|
Available to order. Add to View Price |
|||
|
#57003E
BAG-ASSY,RH,M.S.BLACK
57003-0061-660
|
$1,066.00 | ||
|
Available to order. Add to View Price |
|||
|
#57003F
BAG-ASSY,RH,P.C.WHITE
57003-0061-667
|
$1,066.00 | ||
|
Available to order. Add to View Price |
|||
|
#57003G
BAG-ASSY,RH,C.C.RED
57003-0061-L1
|
$1,066.00 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X12
92009-1870
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,3X8
92009-1871
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1300
|
$1.54 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-1236
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND
92072-1368
|
$47.87 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,SIDE BAG COVER
92093-1486
|
$11.77 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,SIDE BAG,LH
92093-1487
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#92093B
SEAL
92093-1488
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#92093C
SEAL,SIDE BAG,RH
92093-1489
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1450
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-1175
|
$7.61 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING
92145-1200
|
$7.61 | ||
|
Available to order. Add to View Price |
|||
