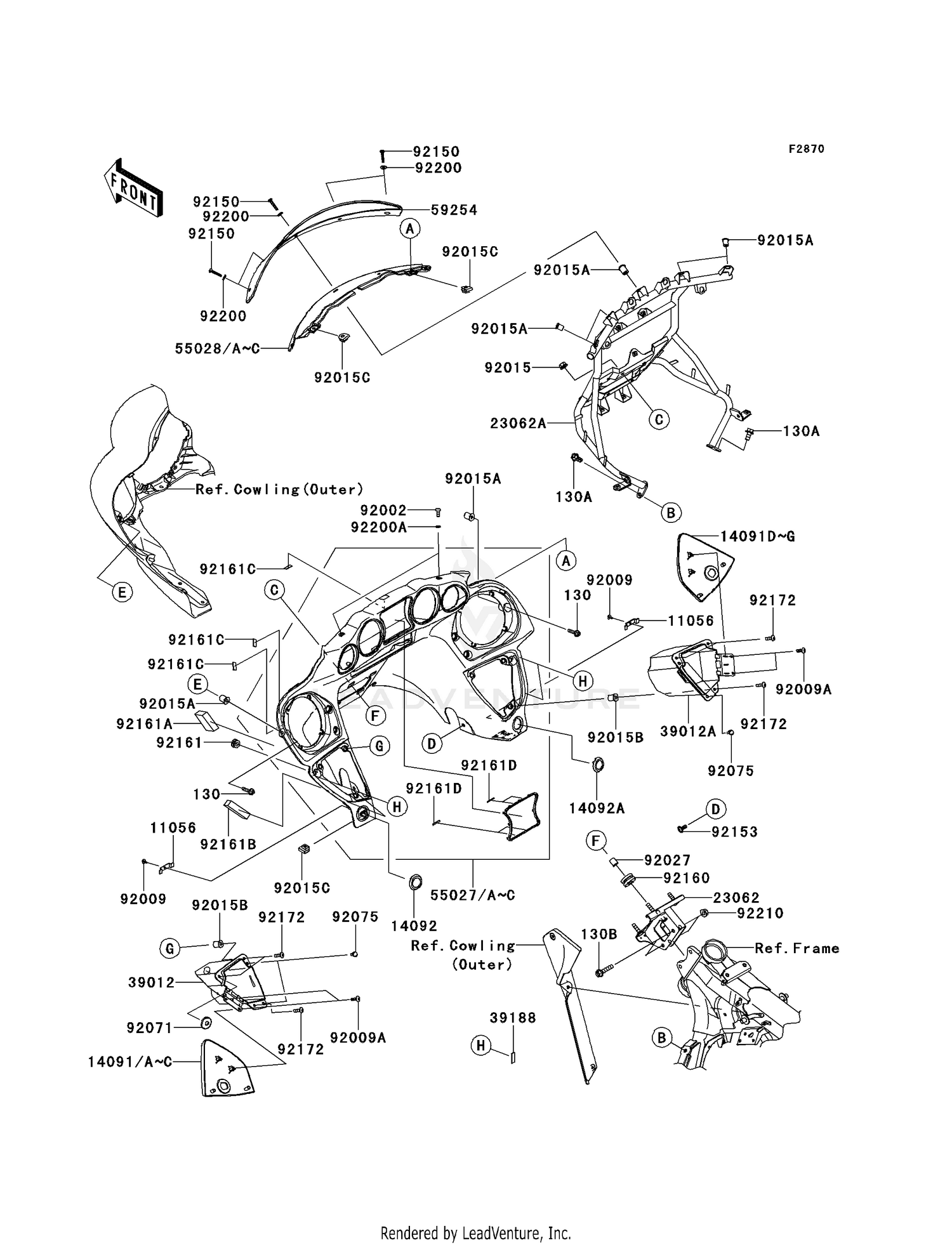

2011 Kawasaki VULCAN 1700 VAQUERO COWLING (INNER) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET
11056-0373
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,STORAGE CASE,LH,F.BLACK
14091-0946-6Z
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#14091E
COVER,STORAGE CASE,RH,F.BLACK
14091-0947-6Z
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,SUB LAMP SW.
14092-0213
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#14092A
COVER,DC SOCKET
14092-0214
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#23062
BRACKET-COMP,HEAD PIP
23062-0105
|
$92.47 | ||
|
Available to order. Add to View Price |
|||
|
#23062A
BRACKET-COMP,COWLING
23062-0720
|
$362.59 | ||
|
Available to order. Add to View Price |
|||
|
#39012
CASE-STORAGE,LH
39012-0027
|
$54.97 | ||
|
Available to order. Add to View Price |
|||
|
#39012A
CASE-STORAGE,RH
39012-0028
|
$54.97 | ||
|
Available to order. Add to View Price |
|||
|
#55027A
COWLING-ASSY,UPP,INNER,BLACK
55027-0063-6Z
|
$604.19 | ||
|
Available to order. Add to View Price |
|||
|
#55028A
COWLING,CNT,F.BLACK
55028-0227-6Z
|
$52.92 | ||
|
Available to order. Add to View Price |
|||
|
#59254
DEFLECTOR
59254-0001
|
$81.03 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X22
130BB0622
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,8X16
130BB0816
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED,8X35
130BB0835
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X14
92002-1700
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X8
92009-1155
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,5X10
92009-1332
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,8MM
92015-1406
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT
92015-1700
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,WELL,5MM
92015-1757
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,CLIP,6MM
92015-1904
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,8.8X12X14
92027-012
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,TAIL LAMP WIRE
92071-079
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,6X10X15
92075-1808
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,6X30
92150-1554
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X15
92153-1451
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1007
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0317
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER
92161-0784
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER
92161-0785
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#92161C
DAMPER
92161-0965
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#92161D
DAMPER,3X25X0.3
92161-0996
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,5X18
92172-0428
|
$0.86 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.5X14X1
92200-1388
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,6.2X10X1
92200-1465
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,FLANGED,8MM
92210-0004
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
