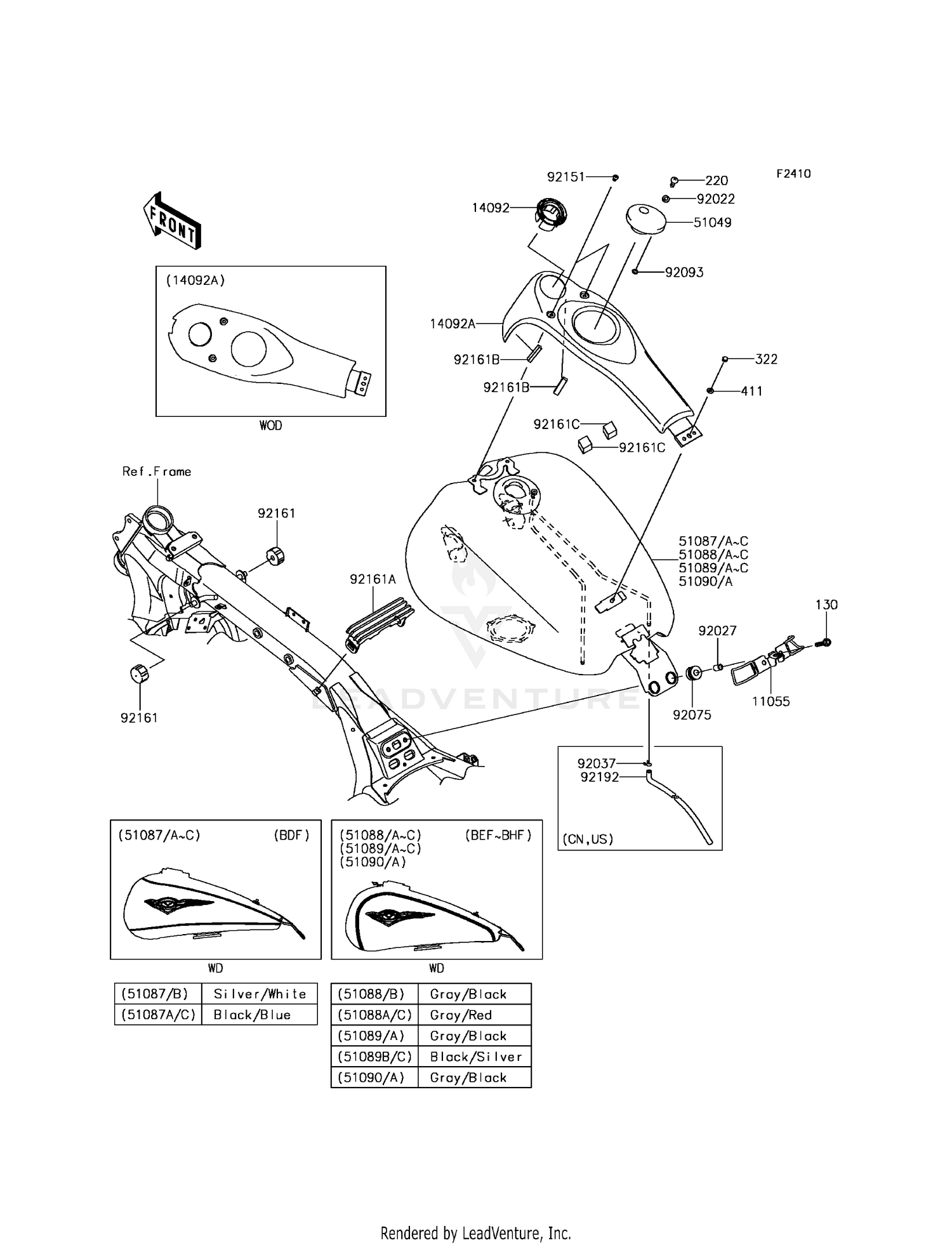

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11055
BRACKET,SEAT
11055-1552
|
$35.38 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,IGNITION SWITCH
14092-0046
|
$53.17 | ||
|
Available to order. Add to View Price |
|||
|
#14092A
COVER,FUEL TANK
14092-0116
|
$233.64 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-0003
|
$105.13 | ||
|
Available to order. Add to View Price |
|||
|
#51089B
TANK-COMP-FUEL,BLACK/
51089-5417-54A
|
$1,911.50 | ||
|
Available to order. Add to View Price |
|||
|
#51089C
TANK-COMP-FUEL,M.S.BL
51089-5431-54A
|
$1,881.10 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.1X10X1.0
92022-1977
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,8.8X12X17
92027-034
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1736
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X10
92151-1449
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,FUEL TANK
92161-0293
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X30
130BA0830
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X10
220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#322
NUT-CAP,6MM
322AB0600
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,6MM
411S0600
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,FUEL TANK
92161-0577
|
$27.24 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER,10X40X7
92161-1502
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#92161C
DAMPER,25X25X13
92161-1503
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,BREATHER
92192-0668
|
$18.48 | ||
|
Available to order. Add to View Price |
|||
