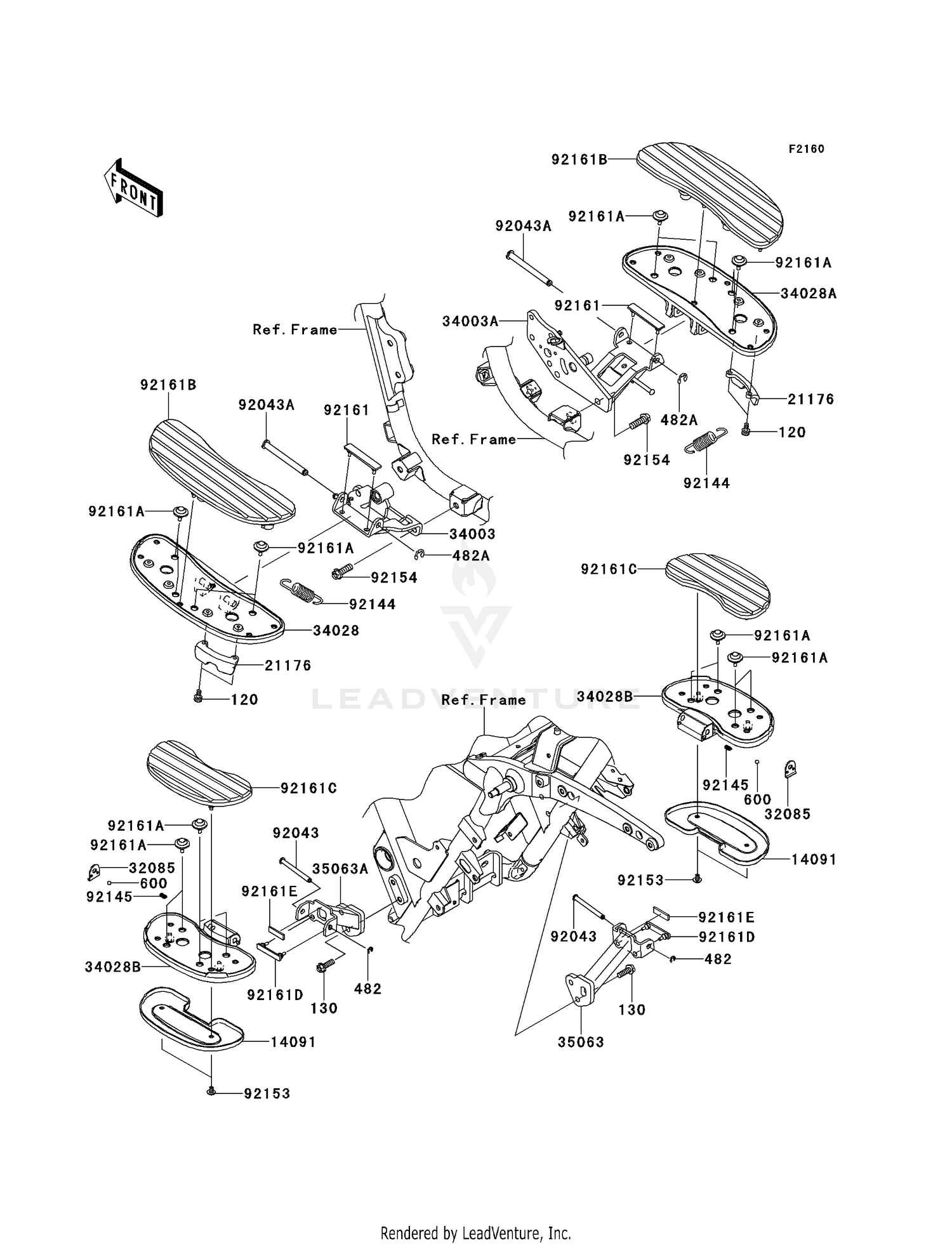

Footrests Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X16
120CB0616
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X25
130BB0825
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#482
CIRCLIP-TYPE-E
482EA7000
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#482A
CIRCLIP-TYPE-E,8MM
482EA8000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,1/4
600A0800
|
$0.61 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,REAR STEP
14091-1808
|
$31.96 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,BANK
21176-0123
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER,REAR STEP
32085-0045
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#34003
HOLDER-STEP,FR,LH,F.S.BLACK
34003-0102-18R
|
$114.73 | ||
|
Available to order. Add to View Price |
|||
|
#34003A
HOLDER-STEP,FR,RH,F.S.BLACK
34003-0103-18R
|
$119.65 | ||
|
Available to order. Add to View Price |
|||
|
#34028
STEP,FR,LH
34028-0124
Superseded by 34028-0143
|
$105.74 | ||
|
Available to order. Add to View Price |
|||
|
#34028A
STEP,FR,RH
34028-0125
Superseded by 34028-0144
|
$105.74 | ||
|
Available to order. Add to View Price |
|||
|
#34028B
STEP,RR
34028-0131
|
$64.06 | ||
|
Available to order. Add to View Price |
|||
|
#35063
STAY,RR,RH,F.S.BLACK
35063-0649-18R
|
$77.67 | ||
|
Available to order. Add to View Price |
|||
|
#35063A
STAY,RR,LH,F.S.BLACK
35063-0669-18R
|
$77.67 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X76.5
92043-0054
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,10X98.5
92043-1707
|
$10.12 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1266
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-1319
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,6X10
92153-1096
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,10X30
92154-0284
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,STEP HOLDER
92161-0746
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,STEP
92161-0766
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER,FOOT BOARD
92161-0770
|
$66.21 | ||
|
Available to order. Add to View Price |
|||
|
#92161C
DAMPER,REAR STEP
92161-0771
|
$52.34 | ||
|
Available to order. Add to View Price |
|||
|
#92161D
DAMPER,REAR STEP
92161-0772
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#92161E
DAMPER,10X35X3
92161-0840
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
