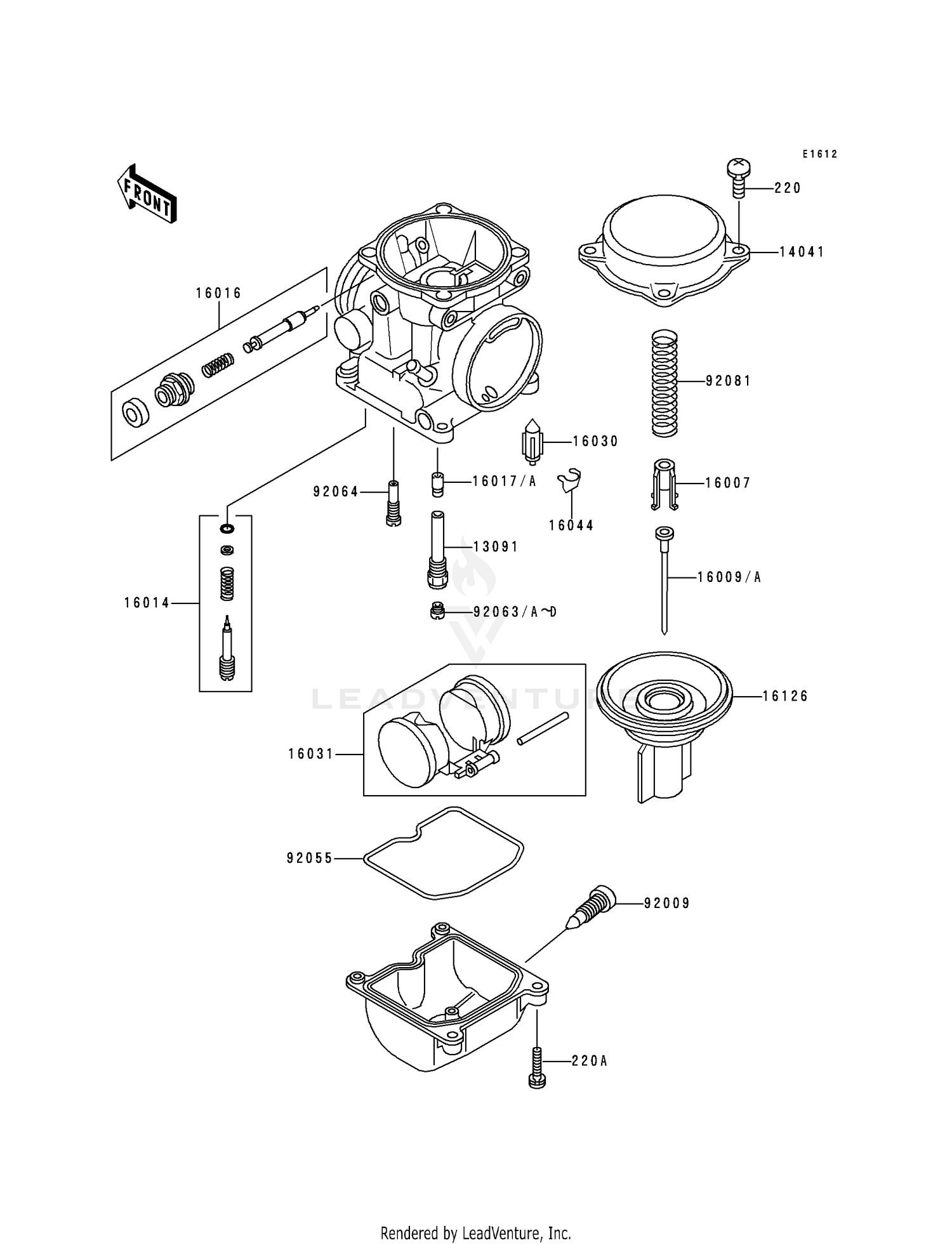

Carburetor Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#220
SCREW-PAN-CROS,4X8
220D0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220D0414
Superseded by 220AA0414
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER
13091-1713
|
$29.59 | ||
|
Available to order. Add to View Price |
|||
|
#14041
TOP-CHAMBER
14041-1076
|
$92.23 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING
16007-1120
|
$25.30 | ||
|
Available to order. Add to View Price |
|||
|
#16009A
NEEDLE-JET,N2WE
16009-1895
|
$34.15 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1081
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER
16016-1092
|
$57.01 | ||
|
Available to order. Add to View Price |
|||
|
#16017A
JET-NEEDLE
16017-1376
|
$46.37 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1077
|
$51.51 | ||
|
Available to order. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,VACUUM
16126-1160
|
$191.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,DRAIN,6X0.75
92009-1551
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FLOAT CHAMBER
92055-1222
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92063
MAIN JET,#2ND,#98
92063-1005
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
MAIN JET,#100
92063-1008
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
MAIN JET,#105
92063-1009
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#102
92063-1090
Superseded by 92063-1115
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#108
92063-1116
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#35
92064-1101
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,VACUUM VALVE
92081-1925
|
$23.74 | ||
|
Available to order. Add to View Price |
|||
