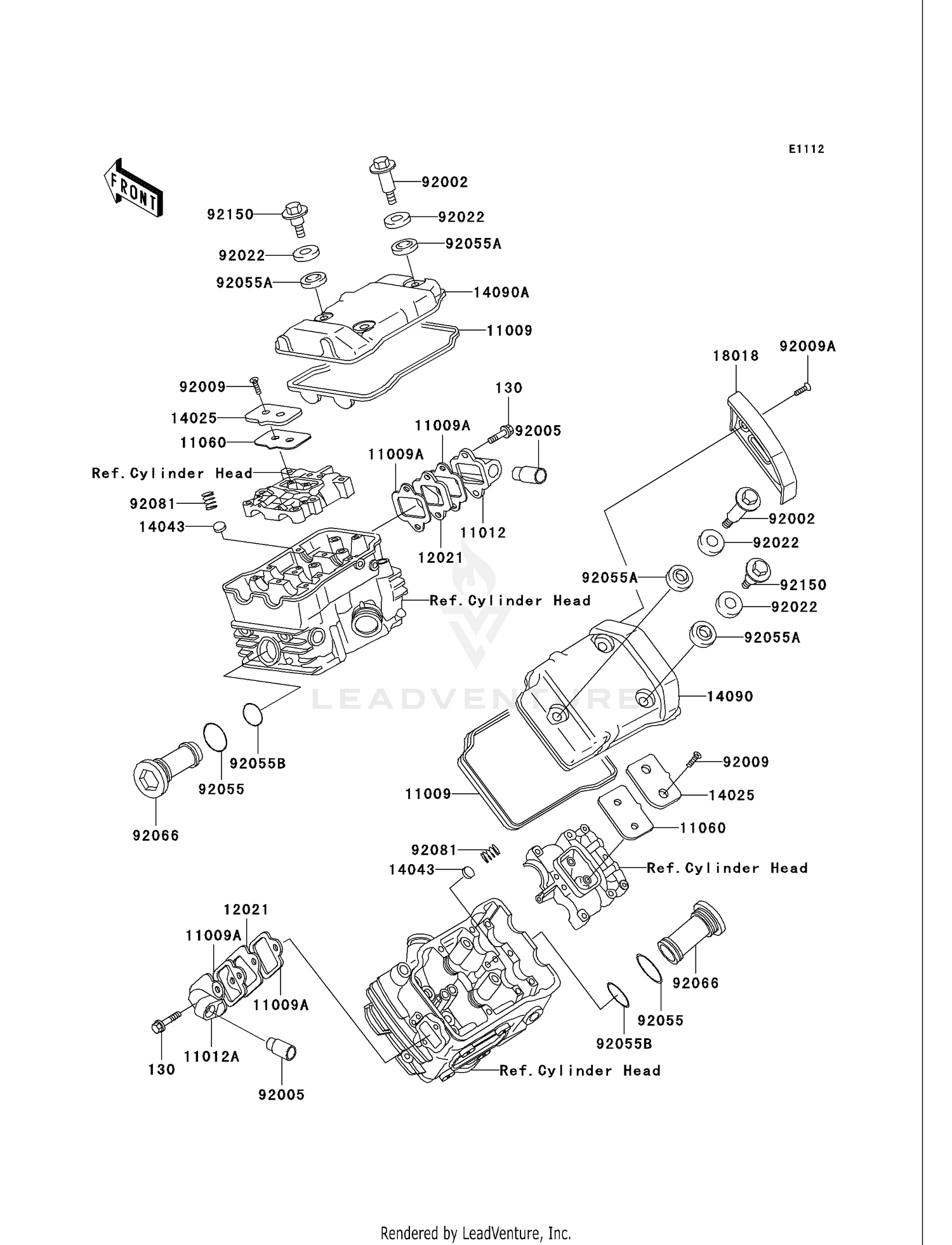

Cylinder Head Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED
130N0620
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,CYLINDER HEAD
11009-1508
|
$49.88 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,REED VALVE
11009-1879
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,REED VALVE,FR
11012-1494
|
$27.27 | ||
|
Available to order. Add to View Price |
|||
|
#11012A
CAP,REED VALVE,RR
11012-1495
|
$41.70 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,SEPARATER COVE
11060-1083
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#12021
VALVE-ASSY-REED
12021-1011
|
$68.75 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,SEPARATER
14025-1738
|
$18.86 | ||
|
Available to order. Add to View Price |
|||
|
#14043
FILTER,OIL
14043-1056
|
$9.94 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,CYLINDER HEAD,R
14090-1400
|
$189.18 | ||
|
Available to order. Add to View Price |
|||
|
#14090A
COVER,CYLINDER HEAD,F
14090-1401
|
$193.93 | ||
|
Available to order. Add to View Price |
|||
|
#18018
PLATE-HEAT GUARD
18018-1063
|
$44.77 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT
92002-1421
|
$20.23 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,REED VALVE
92005-1006
|
$9.46 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X10
92009-1363
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X16
92009-3703
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,HEAD COVER BOL
92022-1637
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,31.5X2.6
92055-049
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,HEAD COVER BOL
92055-1225
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,27.7X1.9
92055-1272
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,CYLINDER HEAD
92066-1224
|
$58.65 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,OIL FILTER
92081-1776
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,HEAD COVER
92150-1447
Superseded by 92153-0793
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
