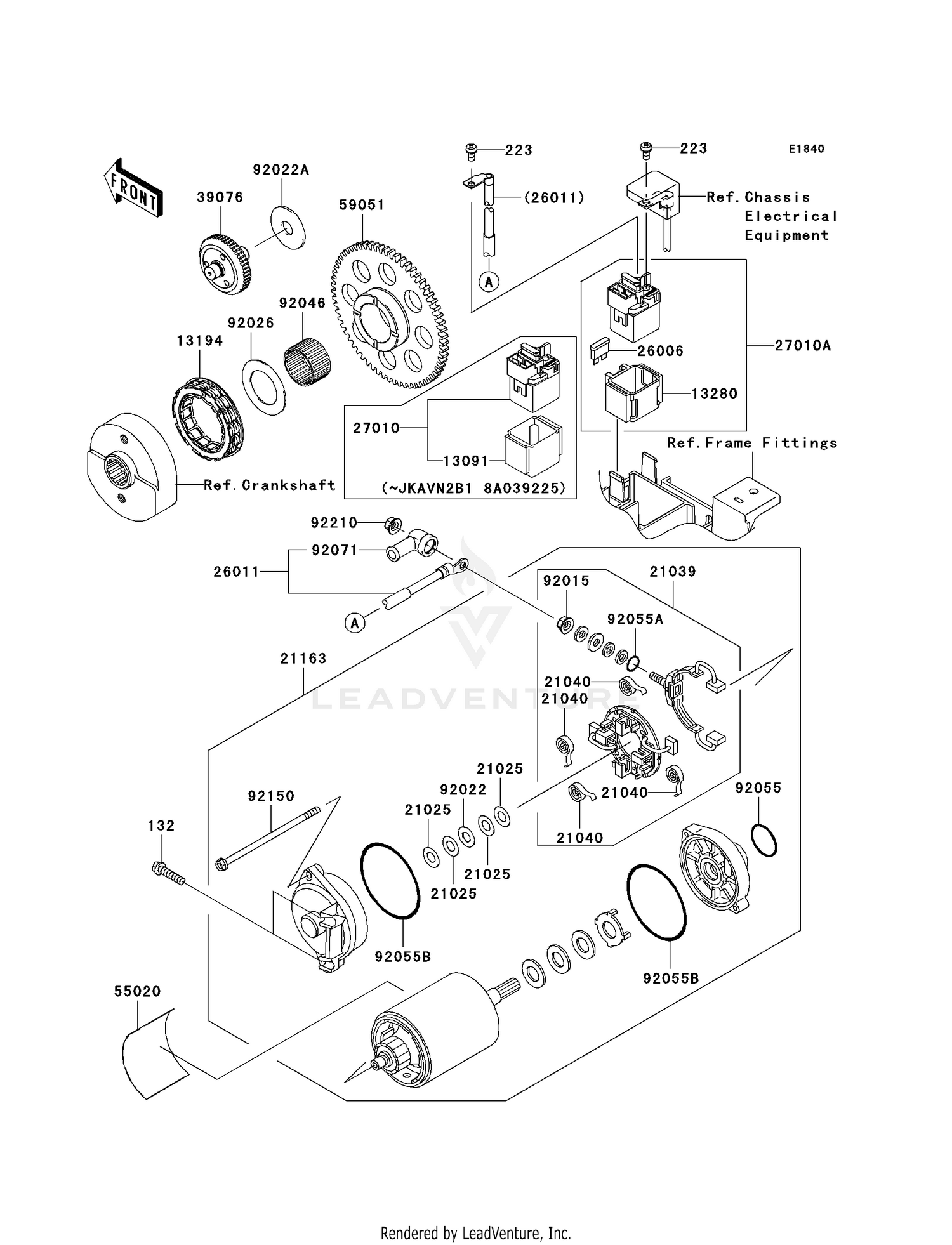

Starter Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X25
132BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,5X10
223AA0510
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#13194
CLUTCH-ONEWAY
13194-0009
|
$150.17 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER
13280-1263
|
$13.23 | ||
|
Available to order. Add to View Price |
|||
|
#21025
WASHER,9.1X18X0.2
21025-011
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#21039
BRUSH,CARBON
21039-1060
|
$81.08 | ||
|
Available to order. Add to View Price |
|||
|
#21040
SPRING-BRUSH
21040-1055
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-1263
|
$509.91 | ||
|
Available to order. Add to View Price |
|||
|
#26006
FUSE,BLADE,30A,GREEN
26006-1006
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,STARTER MOTOR
26011-0126
|
$61.29 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,MAGNETIC
27010-1446
Superseded by 27010-0793
|
$130.77 | ||
|
Available to order. Add to View Price |
|||
|
#39076
LIMITER
39076-0008
|
$122.78 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,STARTER MOTER
55020-1589
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,63T
59051-0060
|
$116.66 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,STARTER MOTOR
92015-1476
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,9.1X18X0.8
92022-1132
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,12.3X38X2.0
92022-1664
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,31X49.5X1.2
92026-1490
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,K30X35X20
92046-1171
|
$21.73 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1276
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,4.5X2.0
92055-1370
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,STARTER MOTOR
92055-1381
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-0024
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,STARTER MOTOR
92150-1913
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,6MM
92210-0188
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
