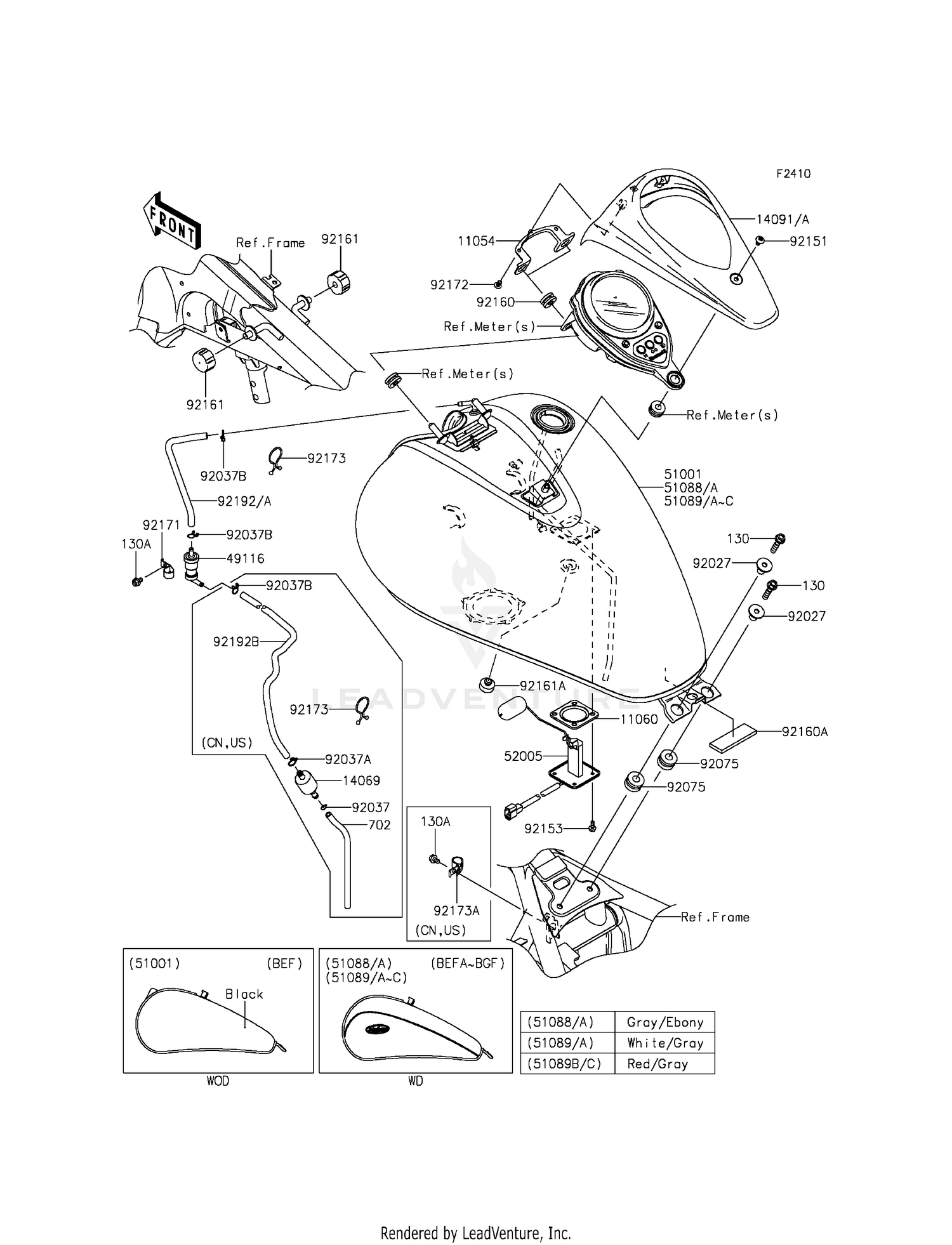

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11054
BRACKET,METER,FR
11054-0034
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,FUEL GAUGE
11060-1952
|
$20.44 | ||
|
Available to order. Add to View Price |
|||
|
#14069
BREATHER,FUEL TANK
14069-1004
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,METER,EBONY
14091-1730-H8
|
$112.77 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY,CHECK
49116-0014
|
$44.56 | ||
|
Available to order. Add to View Price |
|||
|
#51089
TANK-COMP-FUEL,WHITE/
51089-5092-51M
|
$1,568.30 | ||
|
Available to order. Add to View Price |
|||
|
#51089A
TANK-COMP-FUEL,WHITE/GRAY
51089-5109-51M
|
$1,598.46 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,FUEL
52005-0718
|
$114.52 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=19.3
92027-1780
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-010
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,HOSE
92037-1104
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Unavailable |
|||
|
#92075
DAMPER
92075-1736
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,6X12
92151-1940
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,5X12
92153-1421
Superseded by 92154-1856
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1162
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER
92160-1323
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,FUEL TANK
92161-0293
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,SEAT
92161-1065
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X30
130BA0830
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X10
130BB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X10
130BB0610
|
$2.42 | ||
|
Unavailable |
|||
|
#702
TUBE-RUBBER,6X200
702A06200
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0595
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,TAPPING,5X14
92172-0006
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP
92173-0848
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP
92173-0848
|
$2.93 | ||
|
Unavailable |
|||
|
#92173A
CLAMP
92173-0925
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,BREATHER,L=220
92192-1107
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#92192A
TUBE,BREATHER,BLUE,L=220
92192-1108
|
$27.29 | ||
|
Available to order. Add to View Price |
|||
|
#92192B
TUBE,5X10X500/350
92192-1129
|
$16.53 | ||
|
Available to order. Add to View Price |
|||
