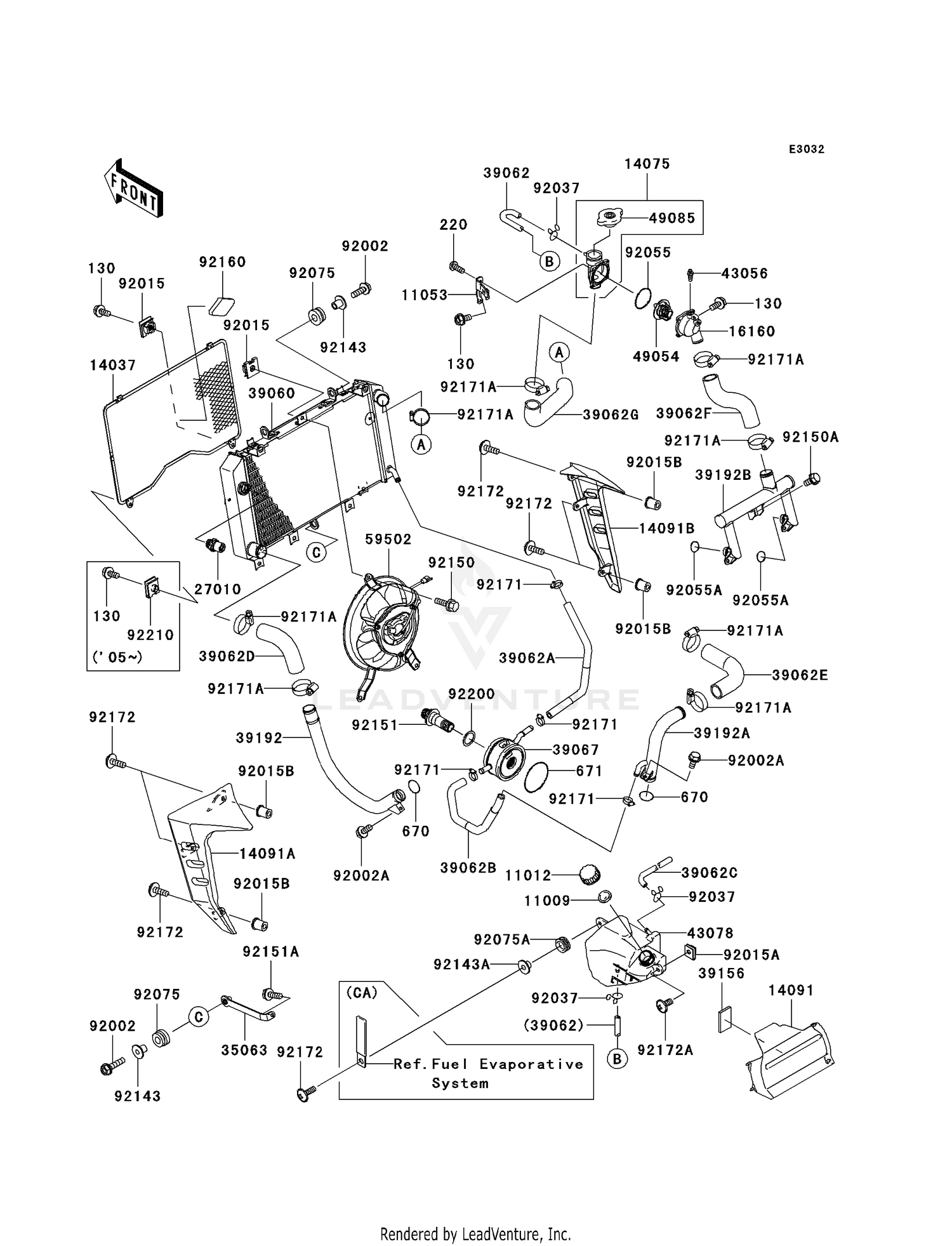

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,RESERVOIR TANK CAP
11009-1145
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1084
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#11053
BRACKET,THERMOSTAT
11053-1070
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN,OIL COOLER
14037-1315
|
$92.91 | ||
|
Available to order. Add to View Price |
|||
|
#14075
CAP-ASSY
14075-0001
|
$136.53 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER
14091-1532
|
$48.56 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,RADIATOR,LH,F.P
14091-1541-458
Superseded by 14091-1541-10C
|
$101.71 | ||
|
Available to order. Add to View Price |
|||
|
#14091B
COVER,RADIATOR,RH,F.P
14091-1542-458
Superseded by 14091-1542-10C
|
$101.71 | ||
|
Available to order. Add to View Price |
|||
|
#16160
BODY,THERMOSTAT,LWR
16160-1360
|
$71.21 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH
27010-1443
|
$129.71 | ||
|
Available to order. Add to View Price |
|||
|
#35063
STAY,RADIATOR
35063-1261
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#39060
RADIATOR
39060-0004
|
$878.62 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,THERMO-R
39062-0013
|
$17.86 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,RADIATOR
39062-0016
|
$32.40 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,OIL COOL
39062-0017
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING,5.5X10.5
39062-1208
Superseded by 39062-0080
|
$36.37 | ||
|
Available to order. Add to View Price |
|||
|
#39062D
HOSE-COOLING
39062-1851
|
$107.59 | ||
|
Available to order. Add to View Price |
|||
|
#39062E
HOSE-COOLING,PUMP-CYL
39062-1914
|
$34.80 | ||
|
Available to order. Add to View Price |
|||
|
#39062F
HOSE-COOLING,HEAD-THE
39062-1916
Superseded by 39062-0674
|
$34.41 | ||
|
Available to order. Add to View Price |
|||
|
#39062G
HOSE-COOLING,THERMO-R
39062-1917
|
$46.88 | ||
|
Available to order. Add to View Price |
|||
|
#39067
COOLER-OIL
39067-0004
|
$724.65 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,TAIL COVER
39156-0018
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#39192
PIPE-WATER
39192-0012
|
$65.52 | ||
|
Available to order. Add to View Price |
|||
|
#39192A
PIPE-WATER
39192-0014
|
$65.52 | ||
|
Available to order. Add to View Price |
|||
|
#39192B
PIPE-WATER
39192-1151
Superseded by 39192-0073
|
$205.05 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BLEEDER SET
43056-003
Superseded by 43085-001
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-1187
|
$36.74 | ||
|
Available to order. Add to View Price |
|||
|
#49054
THERMOSTAT
49054-1067
Superseded by 49054-0004
|
$56.71 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-1066
|
$36.13 | ||
|
Available to order. Add to View Price |
|||
|
#59502
FAN-ASSY
59502-0002
|
$838.65 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,6X25
92002-1086
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT-FLANGED-SMALL,6X12
92002-1569
Superseded by 132BB0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1487
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CLAMP,6MM
92015-1531
Superseded by 92015-1678
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT
92015-1700
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,53.5X2.6
92055-112
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,18.54X2.6
92055-1350
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,RUBBER
92075-1123
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER
92075-1634
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X12
130J0612
Superseded by 130BB0612
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X14
220D0514
Superseded by 220AA0514
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,21MM
670B2021
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,65MM
671B2565
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1353
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR
92143-1962
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X12
92150-1186
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,FLANGED-SMALL,6X12
92150-1841
Superseded by 92154-1888
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,OIL COOLER
92151-1366
|
$84.17 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT-FLANGED,6X16
92151-1774
Superseded by 130CC0616
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1863
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,COOLING HOSE
92171-0142
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-0179
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X18
92172-0002
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW,6X14
92172-0004
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,OIL COOLER
92200-1379
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-1125
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
