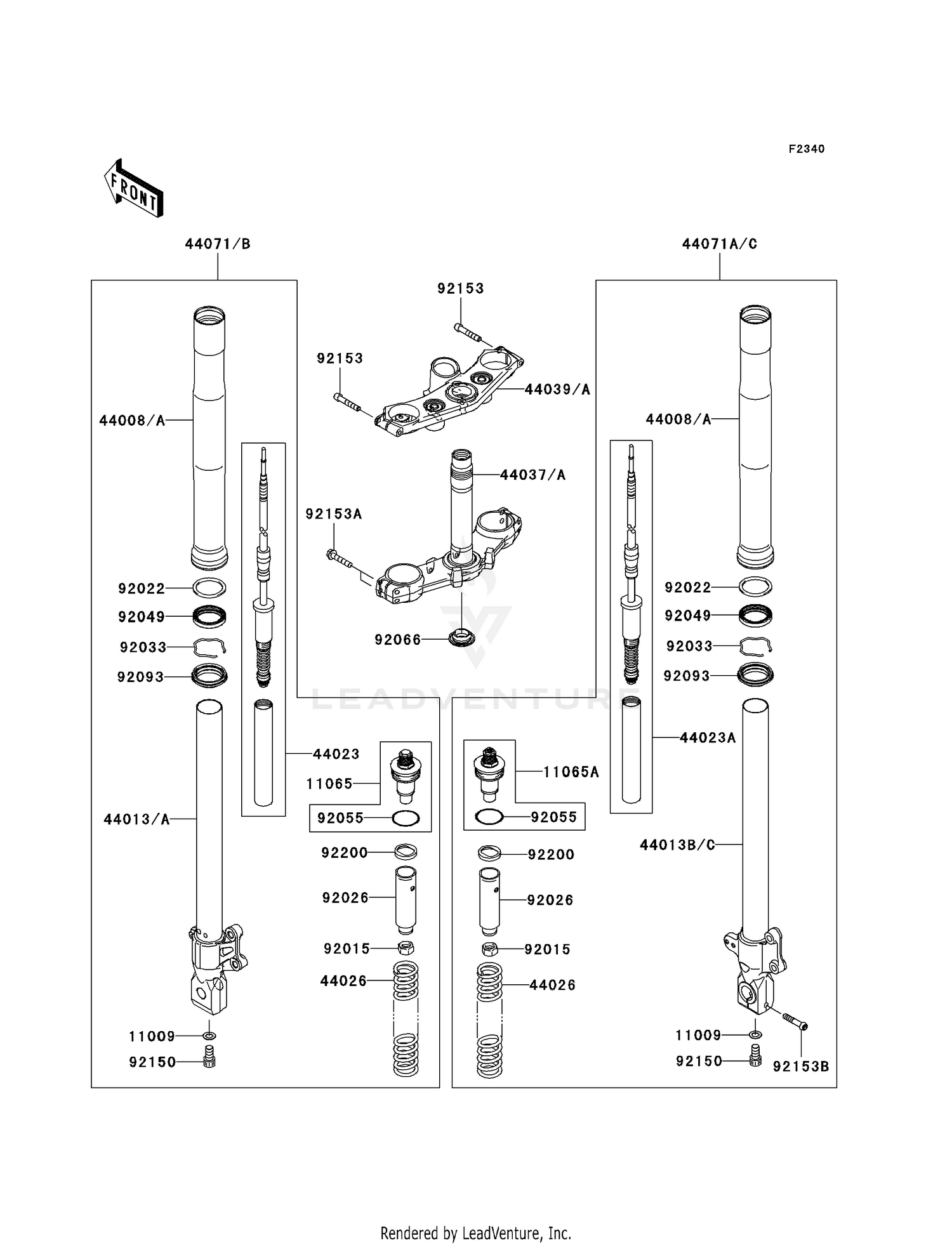

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER BOLT
11009-1127
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP,FORK BOLT,LH,A.BL
11065-0188-499
|
$123.29 | ||
|
Available to order. Add to View Price |
|||
|
#11065A
CAP,FORK BOLT,RH,A.BL
11065-0189-499
|
$123.29 | ||
|
Available to order. Add to View Price |
|||
|
#44008A
PIPE-FORK OUTER,A.BLA
44008-0030-499
|
$401.88 | ||
|
Available to order. Add to View Price |
|||
|
#44013A
PIPE-FORK INNER,LH,F.
44013-0084-21
|
$423.10 | ||
|
Available to order. Add to View Price |
|||
|
#44013C
PIPE-FORK INNER,RH,F.
44013-0085-21
|
$423.10 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK,LH
44023-0053
|
$471.41 | ||
|
Available to order. Add to View Price |
|||
|
#44023A
CYLINDER-SET-FORK,RH
44023-0054
|
$471.41 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-0102
|
$93.23 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER,F.S
44037-0066-11E
|
$580.45 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER,F.S
44039-0057-11E
|
$323.71 | ||
|
Available to order. Add to View Price |
|||
|
#44071
DAMPER-ASSY,FORK,LH
44071-5044
|
$838.16 | ||
|
Available to order. Add to View Price |
|||
|
#44071A
DAMPER-ASSY,FORK,RH
44071-5045
|
$838.16 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1795
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FORK OUTER TUBE
92022-1298
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK
92026-0045
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1036
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-0073
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FORK,AIR TUBE
92055-1333
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-0032
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1472
|
$22.92 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,12X22
92150-1398
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-0425
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,8X40
92153-0484
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,8X40
92153-0506
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-0085
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
