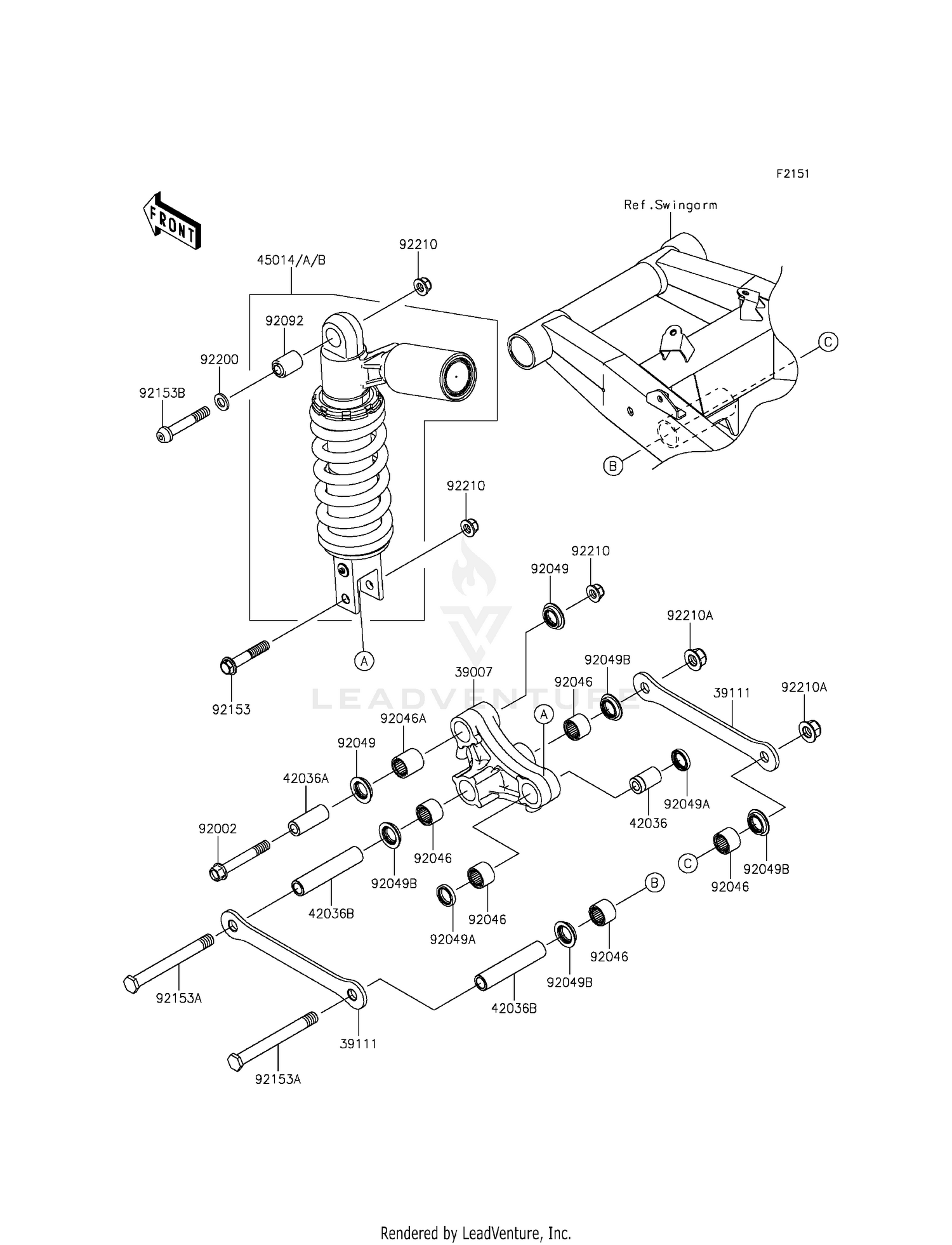

Suspension/shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#39007
ARM-SUSP,UNI TRAK
39007-0003
|
$244.37 | ||
|
Available to order. Add to View Price |
|||
|
#39111
ROD-TIE,SUSPENSION
39111-0017
|
$31.75 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,10.1X18X30
42036-0717
|
$20.63 | ||
|
Available to order. Add to View Price |
|||
|
#42036A
SLEEVE,10.1X17X44.5
42036-0718
|
$23.16 | ||
|
Available to order. Add to View Price |
|||
|
#42036B
SLEEVE,12.1X18X90
42036-1360
|
$15.42 | ||
|
Available to order. Add to View Price |
|||
|
#45014B
SHOCKABSORBER,SPG GRN
45014-0386-37Z
|
$995.70 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,10X70
92002-1183
Superseded by 92001-1618
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,SFYZM182417
92046-1272
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,SFYZM172425
92046-1273
|
$17.06 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,MHA17245.7F
92049-1223
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,MHA18244
92049-1225
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,KCR MF018N1
92049-1493
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER
92092-0003
|
$30.63 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,10X55
92153-1546
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,12X114
92153-1662
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,10X60
92153-1837
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,10.5X19X2.3
92200-1042
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-1139
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,LOCK,FLANGED,12MM
92210-1150
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
