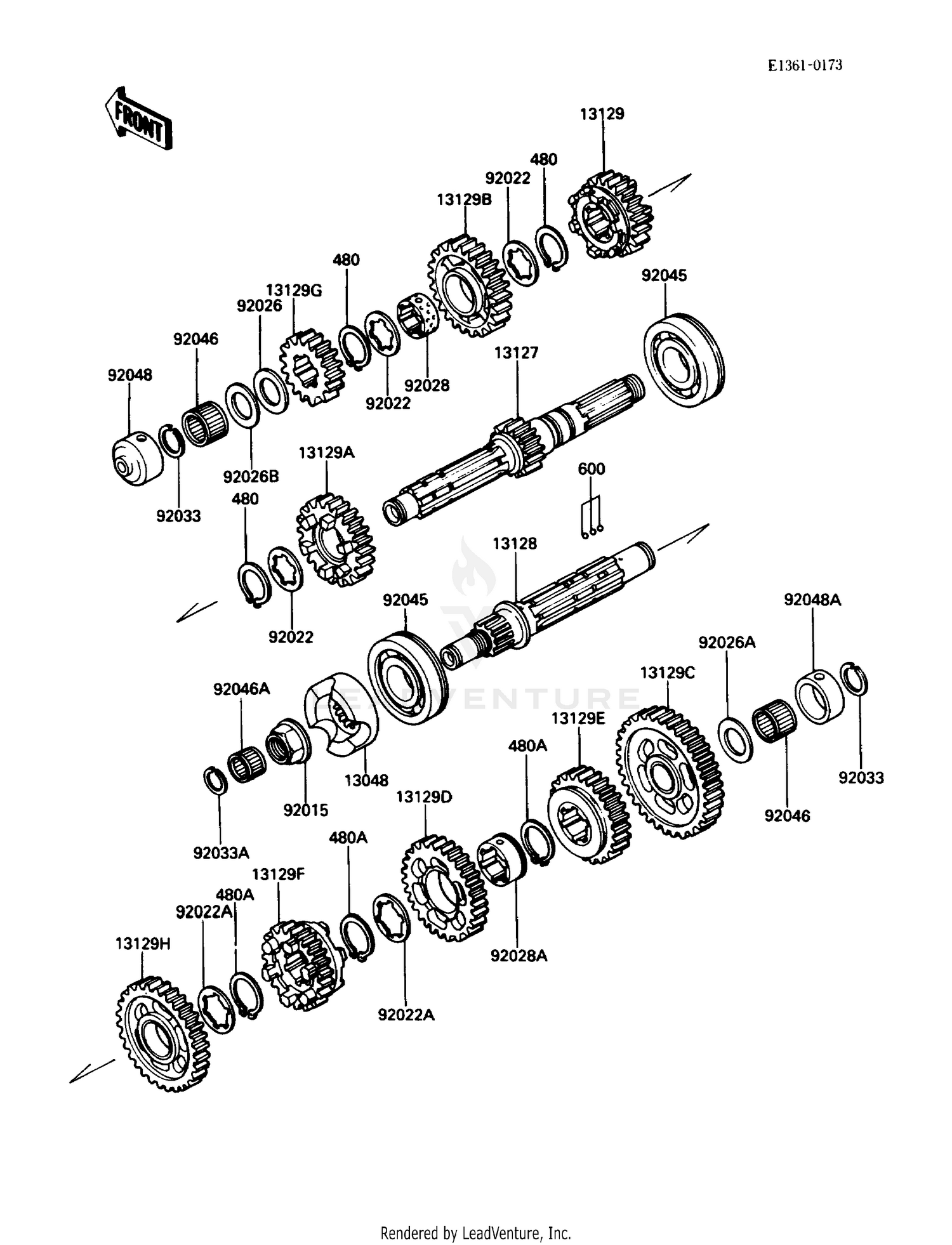

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#480
CIRCLIP-TYPE-C,28MM
480J2800
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#480A
CIRCLIP
480J2900
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,5/32
600A0500
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#13048
CAM-DAMPER
13048-1066
|
$100.56 | ||
|
Available to order. Add to View Price |
|||
|
#13127
SHAFT-TRANSMISSION IN
13127-1133
|
$348.20 | ||
|
Available to order. Add to View Price |
|||
|
#13128
SHAFT-TRANSMISSION OU
13128-1130
|
$236.54 | ||
|
Available to order. Add to View Price |
|||
|
#13129
GEAR,INPUT 3RD,24T
13129-1765
|
$292.46 | ||
|
Available to order. Add to View Price |
|||
|
#13129A
GEAR,INPUT 4TH,28T
13129-1766
|
$228.87 | ||
|
Available to order. Add to View Price |
|||
|
#13129B
GEAR,INPUT TOP,31T
13129-1767
|
$247.87 | ||
|
Available to order. Add to View Price |
|||
|
#13129C
GEAR,OUTPUT LOW,41T
13129-1768
|
$287.46 | ||
|
Available to order. Add to View Price |
|||
|
#13129D
GEAR,OUTPUT 3RD,32T
13129-1770
|
$255.04 | ||
|
Available to order. Add to View Price |
|||
|
#13129E
GEAR-TRANSMISSION SPU
13129-1771
Superseded by 13262-0017
|
$278.46 | ||
|
Available to order. Add to View Price |
|||
|
#13129F
GEAR,OUTPUT TOP,26T
13129-1772
|
$255.04 | ||
|
Available to order. Add to View Price |
|||
|
#13129G
GEAR-TRANSMISSION SPU
13129-1836
|
$206.66 | ||
|
Available to order. Add to View Price |
|||
|
#13129H
GEAR-TRANSMISSION SPU
13129-1837
|
$336.12 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1543
|
$18.96 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,THRUST,26MM
92024-042
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,TOOTHED,30.3X40X1.5
92024-043
|
$12.61 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER (I.D=22 O.D=35
92026-1020
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,22X35.5X2.4
92026-1225
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#92026B
SPACER,22X35.5X1.8
92026-1226
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,TOP GEAR
92028-1124
|
$43.72 | ||
|
Available to order. Add to View Price |
|||
|
#92028A
BUSHING
92028-1403
|
$43.72 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20X25.5X1.2
92033-025
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP
92033-1208
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL
92045-1197
|
$45.49 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,FWF-223014
92046-031
|
$19.01 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,K182420V1
92046-1154
|
$24.96 | ||
|
Available to order. Add to View Price |
|||
|
#92048
RACE,INPUT SHAFT
92048-1052
|
$53.66 | ||
|
Available to order. Add to View Price |
|||
|
#92048A
RACE,30X38X15
92048-1053
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
