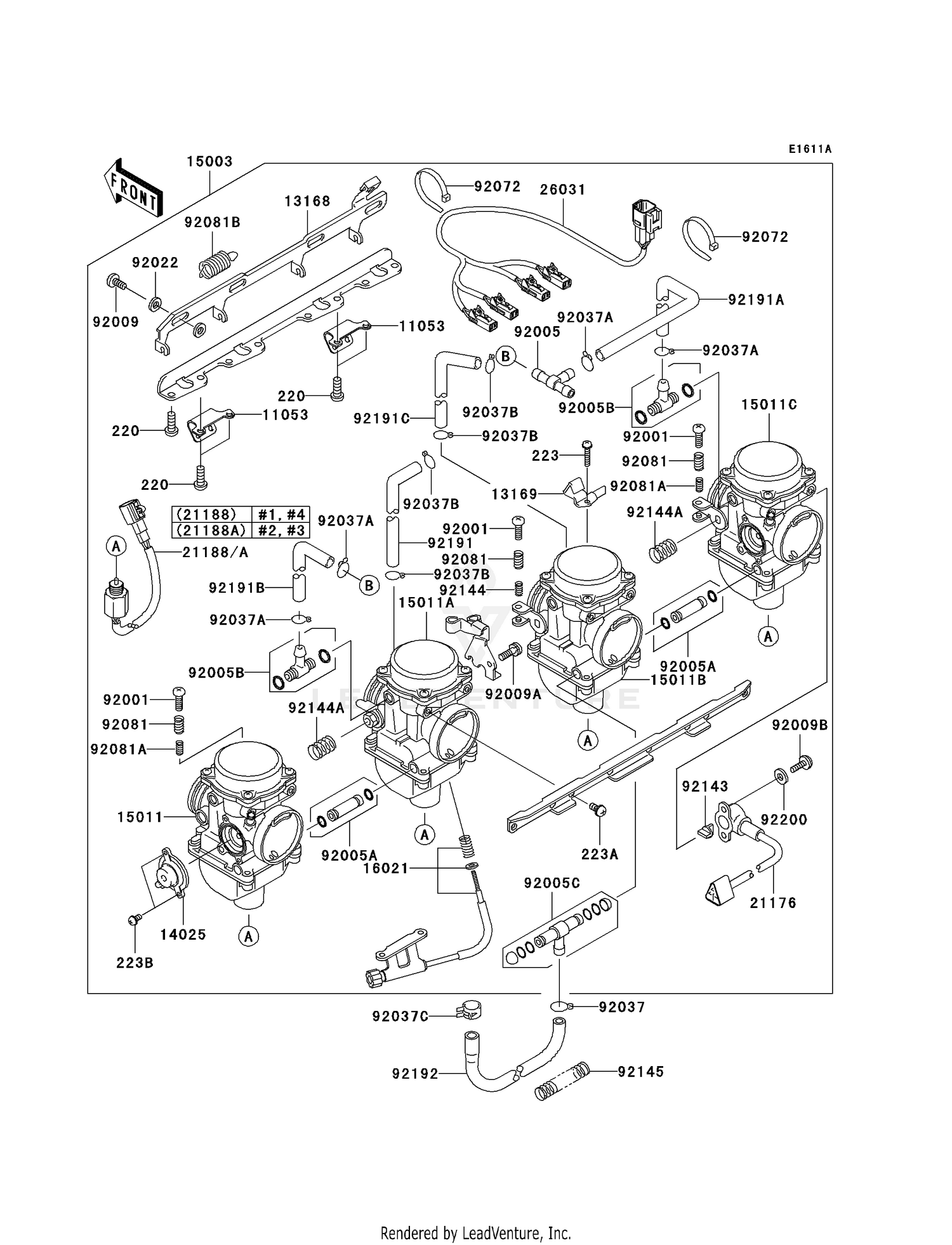

Carburetor (ca) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11053
BRACKET
11053-1406
|
$18.30 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,STARTER
13168-1245
|
$118.18 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE
13169-1871
|
$26.38 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,AIR CUT VALVE
14025-1903
|
$56.17 | ||
|
Available to order. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY
15003-0037
|
$1,939.08 | ||
|
Available to order. Add to View Price |
|||
|
#15011
CARBURETOR,LH,OUTSIDE
15011-0062
|
$713.88 | ||
|
Available to order. Add to View Price |
|||
|
#15011A
CARBURETOR,LH,INSIDE
15011-0063
|
$713.88 | ||
|
Available to order. Add to View Price |
|||
|
#15011B
CARBURETOR,RH,INSIDE
15011-0064
|
$713.88 | ||
|
Available to order. Add to View Price |
|||
|
#15011C
CARBURETOR,RH,OUTSIDE
15011-0065
|
$713.88 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1172
|
$94.17 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR
21176-1073
|
$468.21 | ||
|
Available to order. Add to View Price |
|||
|
#21188
SOLENOID,#1
21188-1006
|
$161.89 | ||
|
Available to order. Add to View Price |
|||
|
#21188A
SOLENOID,#2
21188-1007
|
$143.27 | ||
|
Available to order. Add to View Price |
|||
|
#26031
HARNESS
26031-0206
|
$163.61 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,THROTTLE ADJUST
92001-1998
|
$16.34 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING,T-TYPE
92005-1119
Superseded by 92005-1135
|
$23.74 | ||
|
Available to order. Add to View Price |
|||
|
#92005A
FITTING
92005-1310
|
$32.46 | ||
|
Available to order. Add to View Price |
|||
|
#92005B
FITTING
92005-1314
|
$38.96 | ||
|
Available to order. Add to View Price |
|||
|
#92005C
FITTING,FUEL
92005-1392
|
$26.79 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1262
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X10
92009-1365
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW
92009-1781
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS
223C0420
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#223A
SCREW-PAN-WS-CROS,5X10
223C0510
Superseded by 223AB0510
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X11X0.8,POLYACETAL
92022-1199
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HOSE
92037-1104
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1185
Superseded by 92037-1682
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP
92037-1201
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP
92037-2082
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,SUB-HARNESS
92072-0012
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING
92081-1620
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,THROTTLE ADJUST LWR
92081-1621
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,STARTER LEVER
92081-1762
|
$23.46 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1907
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1451
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,THROTTLE ADJUS
92144-1986
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,FUEL TUBE
92145-0227
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE
92191-1017
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#92191A
TUBE,7X11X187
92191-1680
|
$15.74 | ||
|
Available to order. Add to View Price |
|||
|
#92191B
TUBE,7X11X54
92191-1681
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92191C
TUBE,4.5X8X110
92191-1682
|
$13.81 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,FUEL
92192-0148
|
$13.52 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1369
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#223B
SCREW-PAN-WS-CROS,4X8
223D0408
Superseded by 223AA0408
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
