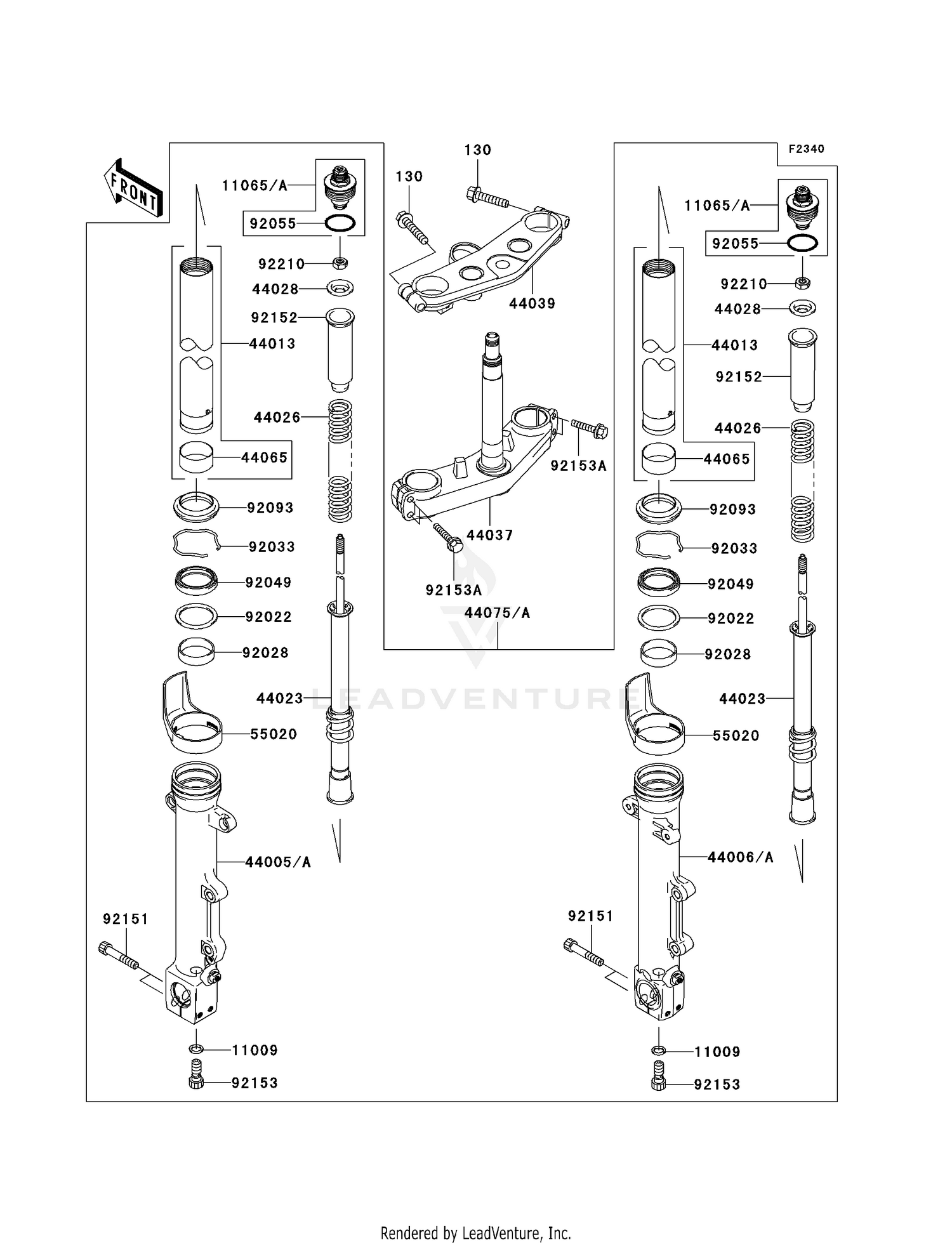

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED
130J1045
Superseded by 130BB1045
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,FORK CYLINDER
11009-1325
Superseded by 44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-0076
|
$146.83 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-0026
|
$488.28 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-0026
|
$488.28 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-0021
|
$412.77 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-0024
|
$468.71 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-0049
|
$94.12 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE-FORK SPRING
44028-0002
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-0018
|
$594.31 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1318
|
$336.77 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK,IN
44065-1142
|
$18.15 | ||
|
Available to order. Add to View Price |
|||
|
#44075
DAMPER-SET-FORK
44075-0050
|
$1,762.44 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,FORK
55020-1691
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1299
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1784
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1077
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER T
92049-1496
|
$21.70 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0062
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1480
|
$17.92 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,8X45
92151-1991
|
$7.43 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,FORK
92152-0207
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,10X25
92153-0548
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,8X40
92153-0739
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-0158
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
