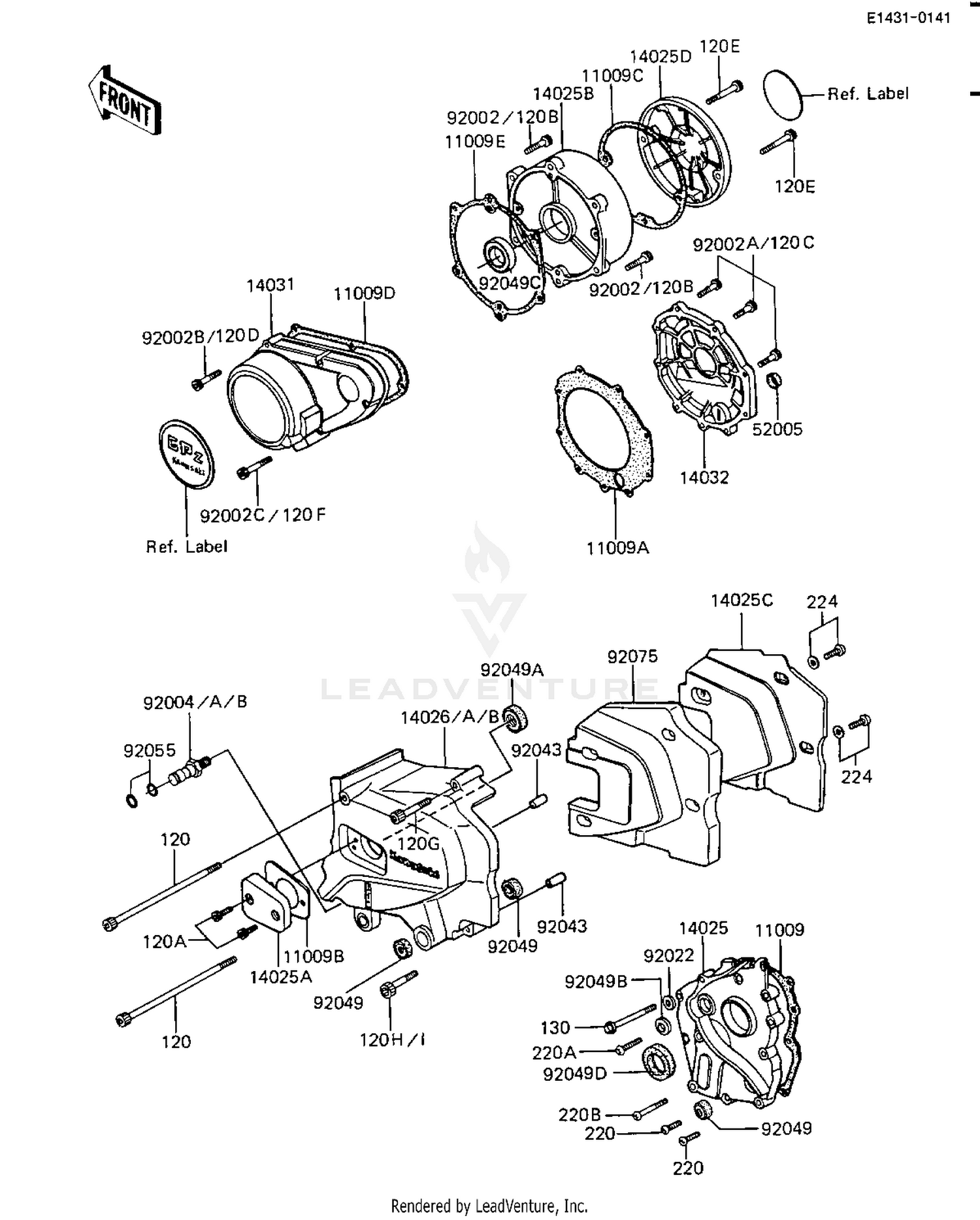

Engine Covers Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,TRANSMISSION C
11060-1069
|
$17.12 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,CLUTCH COVER
11060-1070
Superseded by 11061-1126
|
$29.15 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET,CLUTCH ADJUSTI
11060-1073
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#11009C
GASKET,PULSING COIL C
11060-1072
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#11009D
GASKET,GENERATOR COVE
11060-1075
Superseded by 11061-1082
|
$21.04 | ||
|
Available to order. Add to View Price |
|||
|
#11009E
GASKET,RH ENGINE COVE
11060-1071
Superseded by 11061-1129
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,TRANSMISSION
14025-1240
|
$130.50 | ||
|
Available to order. Add to View Price |
|||
|
#14025A
COVER,CLUTCH RELEASES
14025-1409
|
$36.46 | ||
|
Available to order. Add to View Price |
|||
|
#14025B
COVER,ENGINE,RH,BLACK
14025-1609
|
$261.16 | ||
|
Available to order. Add to View Price |
|||
|
#14025C
COVER,SOUND ARRESTER
14025-1638
|
$24.37 | ||
|
Available to order. Add to View Price |
|||
|
#14025D
COVER,PULSING COIL,BL
14025-1671
|
$84.96 | ||
|
Available to order. Add to View Price |
|||
|
#14026
COVER-CHAIN,BLACK
14026-1105
|
$221.00 | ||
|
Available to order. Add to View Price |
|||
|
#14026A
COVER-CHAIN,BLACK
14026-1105
|
$221.00 | ||
|
Unavailable |
|||
|
#14026B
COVER-CHAIN,BLACK
14026-1105
|
$221.00 | ||
|
Unavailable |
|||
|
#14031
COVER-GENERATOR,BLACK
14031-1117
|
$301.91 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH,BLACK
14032-1112
|
$221.89 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-1009
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT-SOCKET,6X22
92002-1326
Superseded by 120CB0622
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,6X25
92002-1093
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,6X30
92002-1095
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#92002C
BOLT-SOCKET,6X40
120S0640
Superseded by 120W0640
|
$0.97 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,CHANGE PEDAL PIV
92004-1034
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#92004A
STUD,CHANGE PEDAL PIV
92004-1107
|
$27.44 | ||
|
Available to order. Add to View Price |
|||
|
#92004B
STUD,CHANGE PEDAL PIV
92004-1123
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL SB12205
92049-004
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
OIL SEAL,CLUTCH RELES
92049-1003
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,SD-8187
92049-1017
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#92049C
SEAL-OIL,SC32487
92049-1033
|
$18.16 | ||
|
Available to order. Add to View Price |
|||
|
#92049D
SEAL-OIL
92049-1070
Superseded by 92049-1567
|
$15.97 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,8.8X1.9
92055-099
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,SOUND
92075-1444
|
$28.27 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X125,BLA
120S06125
|
$16.69 | ||
|
Available to order. Add to View Price |
|||
|
#120A
BOLT-SOCKET,6X14
120S0614
Superseded by 120CB0614
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#120B
BOLT-SOCKET,6X22
92002-1326
Superseded by 120CB0622
|
$5.14 | ||
|
Unavailable |
|||
|
#120C
BOLT-SOCKET,6X25
120S0625
Superseded by 120CB0625
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#120D
BOLT-SOCKET,6X30
120S0630
Superseded by 120CB0630
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#120E
BOLT-SOCKET,6X35
120S0635
Superseded by 120CB0635
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#120F
BOLT-SOCKET,6X40
120S0640
Superseded by 120W0640
|
$0.97 | ||
|
Unavailable |
|||
|
#120G
BOLT-SOCKET,6X70,BLAC
120S0670
Superseded by 120CB0670
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#120H
BOLT-SOCKET,6X80,BLAC
120S0680
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#120I
BOLT-SOCKET,6X80,BLAC
120S0680
|
$3.49 | ||
|
Unavailable |
|||
|
#130
BOLT,FLANGED,6X55
130G0655
Superseded by 130BA0655
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X20
220B0620
Superseded by 220AA0620
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN HEAD,6X28
220B0628
Superseded by 220AA0628
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#220B
SCREW-PAN HEAD,6X40
220B0640
Superseded by 220AA0640
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#224
SCREW-PAN-WP-CROS
224B0612
Superseded by 224AA0612
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
