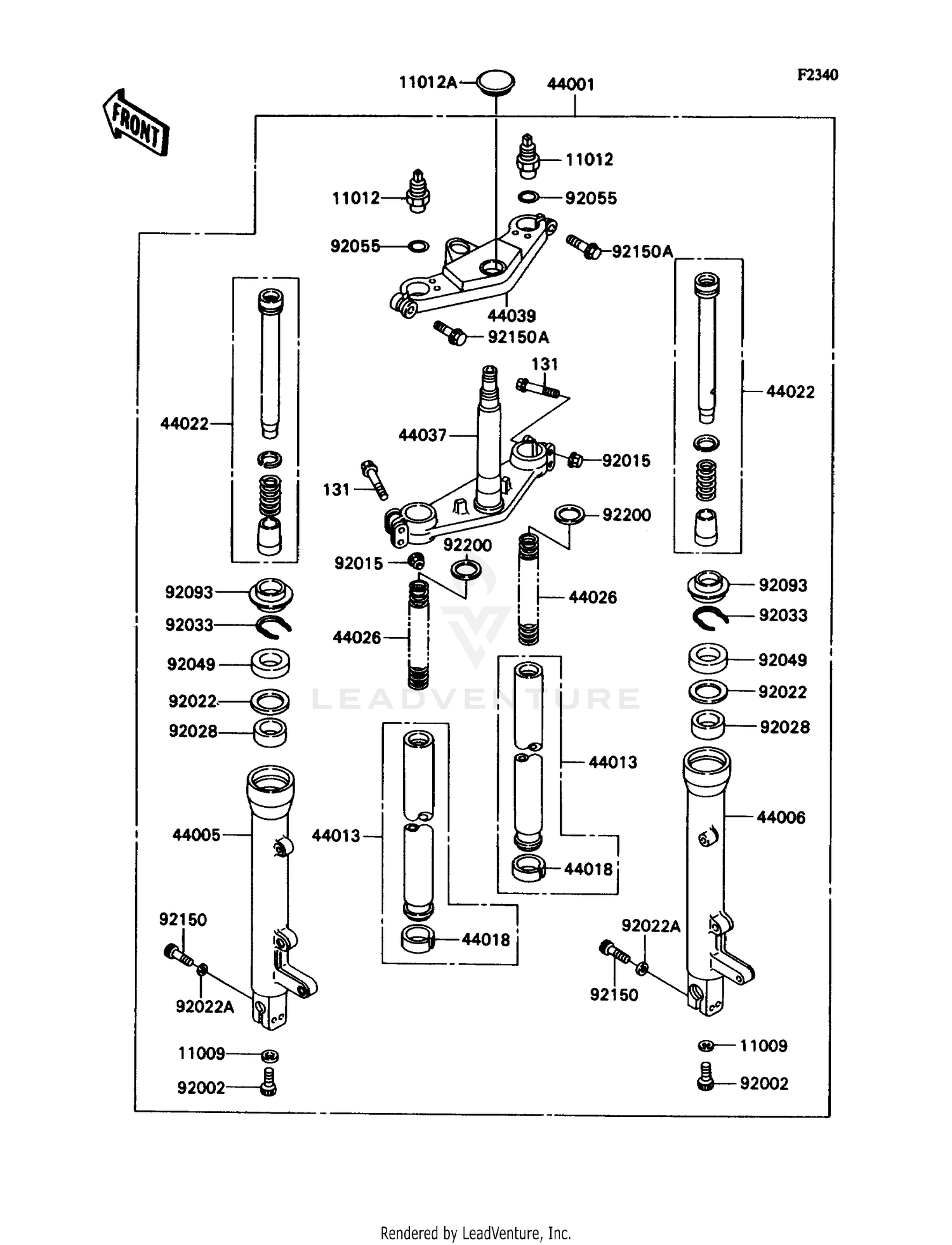

Front Fork (zx1100-c1/c2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK DRAIN PLUG
11009-1553
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,FORK
11012-1744
Superseded by 11012-1848
|
$215.98 | ||
|
Available to order. Add to View Price |
|||
|
#11012A
CAP,FORK,G.GRAY
11012-1750-GD
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#44001
FORK-FRONT,BLACK
44001-1824-10
|
$3,168.27 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER,
44005-1305-10
|
$434.05 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1302-10
|
$434.05 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1316
|
$446.25 | ||
|
Available to order. Add to View Price |
|||
|
#44018
PISTON-FORK,INNER PIPE
44018-1053
Superseded by 44018-1056
|
$27.35 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1251
|
$159.09 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1457
|
$84.07 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1266
|
$530.71 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER,G.G
44039-1200-GD
|
$292.06 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FORK DRAIN
92002-1650
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,8MM
92015-1485
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1299
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER
92022-1598
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1553
Superseded by 92028-1581
|
$21.02 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1077
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER T
92049-1392
|
$22.98 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1123
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1330
|
$22.57 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT-SOCKET,8X40
92150-1194
Superseded by 120CA0840
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,FLANGED,10X45
92150-1210
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1023
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#131
BOLT-FLANGED,8X50
131G0850
Superseded by 130BA0850
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
