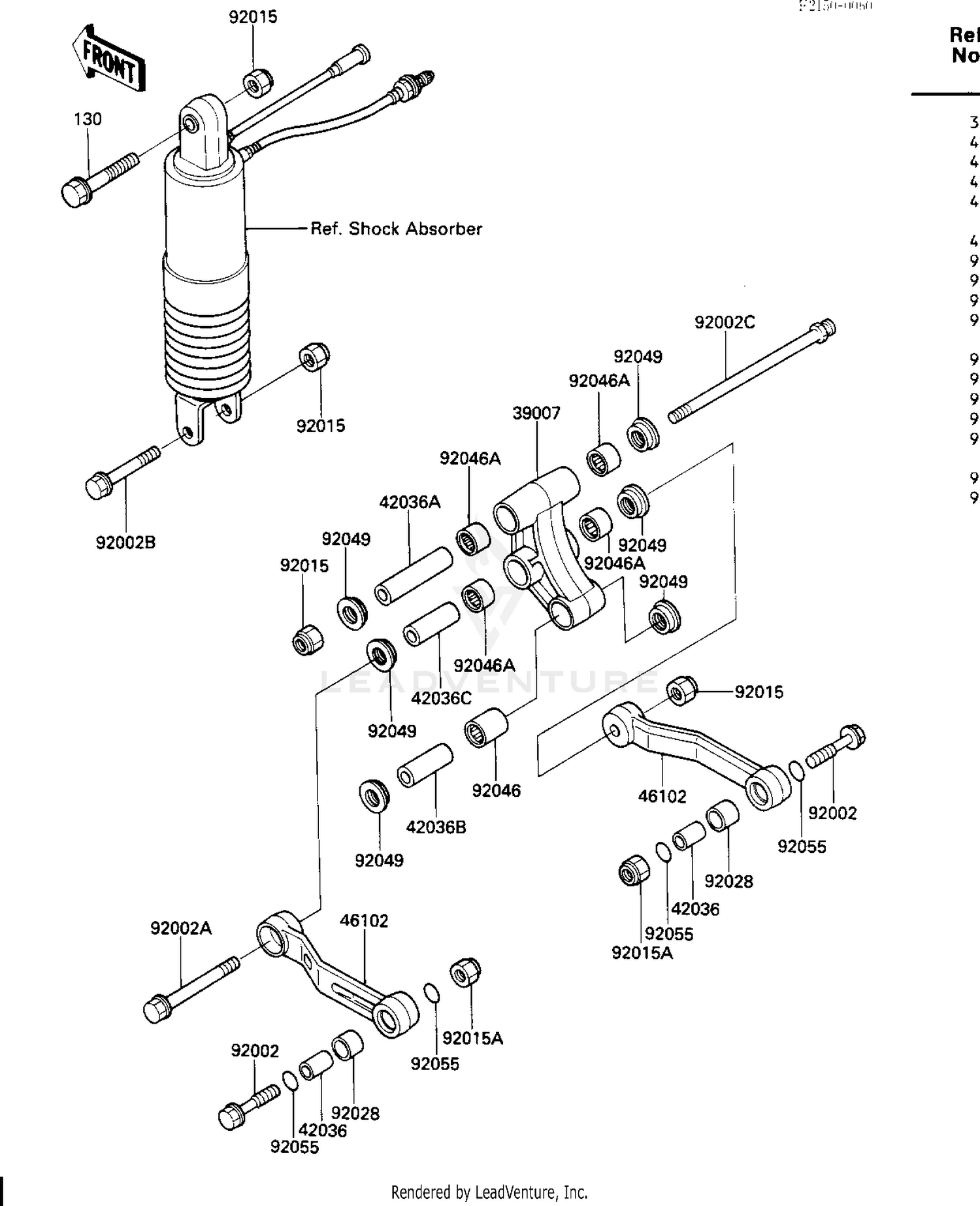

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#39007
ARM-SUSP,UNI TRAK
39007-1127
|
$148.18 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,TIE ROD,UPP
42036-1076
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#42036A
SLEEVE,12.1X20X74
42036-1102
|
$27.61 | ||
|
Available to order. Add to View Price |
|||
|
#42036B
SLEEVE,12.1X20X40
42036-1108
|
$20.97 | ||
|
Available to order. Add to View Price |
|||
|
#42036C
SLEEVE,12.1X20X50
42036-1111
|
$21.21 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,UNI TRAK
46102-1140
|
$91.06 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,12X45
92001-1939
Superseded by 92154-0366
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,12X85
92002-1463
|
$18.16 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,FLANGED,12X60
92002-1464
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#92002C
BOLT,SUSPENSION ARM
92002-1490
|
$33.30 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,12MM,BLACK
92015-1190
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,12MM
92015-1375
Superseded by 92210-1247
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1599
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,BM202726
92046-1110
|
$22.61 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,BM202715
92046-1112
|
$20.15 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,ARM
92049-1109
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,19.8X2.2
92055-1215
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED
130G1250
Superseded by 130BA1250
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
