1987 Kawasaki ZX600B1 NINJA 600RX Front Fork OEM Parts

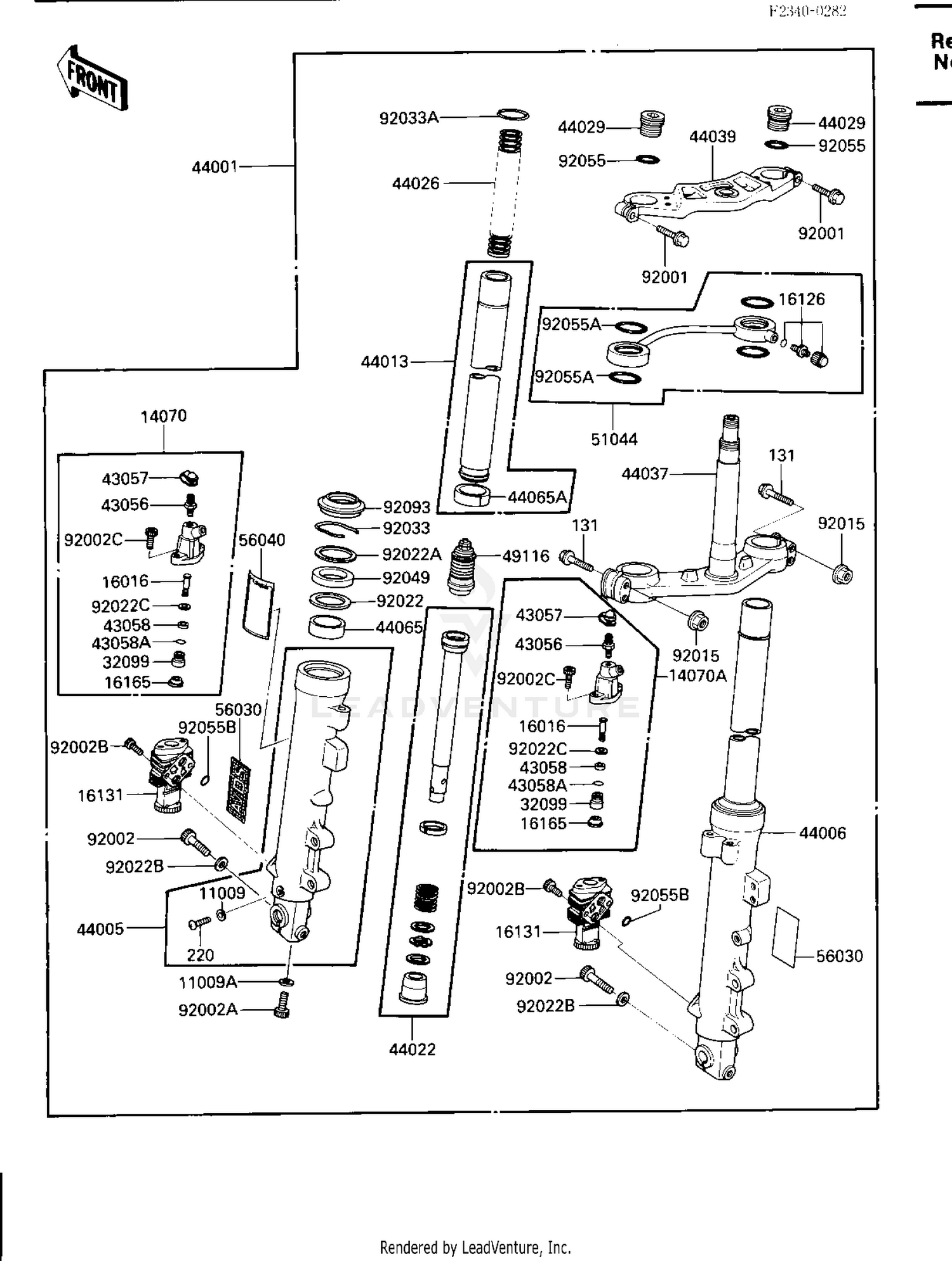

Front Fork Diagram

Item	MSRP	Qty
#11009 GASKET,FORK DRAIN PLUG 44045-002	$5.02
Available to order. Add to View Price
#11009A GASKET,FORK CYLINDER 44045-057	$4.71
Available to order. Add to View Price
#14070 BODY-BREATHER,ANTI-DI 14070-1070	$264.70
Available to order. Add to View Price
#14070A BODY-BREATHER,ANTI-DI 14070-1060 Superseded by 14070-1071	$264.70
Available to order. Add to View Price
#16016 PLUNGER,ANTI-DIVE 16016-1067	$39.37
Available to order. Add to View Price
#16126 VALVE AIR 16126-1052	$33.72
Available to order. Add to View Price
#16131 BODY-VALVE,FORK,ANTI- 16131-1058	$204.95
Available to order. Add to View Price
#16165 SEPARATOR 16165-1051	$9.56
Available to order. Add to View Price
#32099 CASE 32099-1067	$48.39
Available to order. Add to View Price
#43056 BLEEDER SET 43056-003 Superseded by 43085-001	$23.70
Available to order. Add to View Price
#43057 CAP-BREATHER 43057-003	$2.38
Available to order. Add to View Price
#43058 RING 43058-1052	$7.45
Available to order. Add to View Price
#43058A RING 43058-1053	$5.26
Available to order. Add to View Price
#44001 FORK-FRONT 44001-1664	$1,133.78
Available to order. Add to View Price
#44005 PIPE-LEFT FORK OUTER 44005-1255	$247.26
Available to order. Add to View Price
#44006 PIPE-RIGHT FORK OUTER 44006-1252	$247.26
Available to order. Add to View Price
#44013 PIPE-FORK INNER 44013-1231	$322.21
Available to order. Add to View Price
#44022 CYLINDER-FORK 44022-1181	$86.23
Available to order. Add to View Price
#44026 SPRING-FRONT FORK,K=0 44026-1302	$78.83
Available to order. Add to View Price
#44029 SEAT-FORK SPRING 44029-1121	$38.63
Available to order. Add to View Price
#44037 HOLDER-FORK UNDER 44037-1209	$313.66
Available to order. Add to View Price
#44039 HOLDER-FORK UPPER 44039-1157	$232.03
Available to order. Add to View Price
#44065 BUSHING-FRONT FORK 44065-1051 Superseded by 44065-1084	$22.33
Available to order. Add to View Price
#44065A BUSHING-FRONT FORK 44065-1058	$34.11
Available to order. Add to View Price
#49116 VALVE-ASSY,FORK 49116-1058	$118.91
Available to order. Add to View Price
#51044 TUBE-ASSY 51044-1069	$144.83
Available to order. Add to View Price
#56030 LABEL,AVDS MARK 56030-1057	$5.26
Available to order. Add to View Price
#56040 LABEL-WARNING,SHOCKAB 56040-1117	$4.90
Unavailable
#92001 BOLT,FLANGED,8X40 92001-1188	$8.33
Available to order. Add to View Price
#92002 BOLT,SOCKET,8X38 92002-1316	$4.60
Available to order. Add to View Price
#92002A BOLT 92002-1317	$8.02
Available to order. Add to View Price
#92002B BOLT 92002-1564	$9.47
Available to order. Add to View Price
#92002C BOLT 92002-1565	$9.14
Available to order. Add to View Price
#92015 NUT,FLANGED,8MM 92015-1485	$5.21
Available to order. Add to View Price
#92022 WASHER,FORK OUTER PIP 92022-1455	$7.42
Available to order. Add to View Price
#92022A WASHER,FORK OUTER PIP 92022-1524	$7.08
Available to order. Add to View Price
#92022B WASHER 92022-1598	$7.77
Available to order. Add to View Price
#92022C WASHER 92022-1636	$4.60
Available to order. Add to View Price
#92033 RING-SNAP,FORK 92033-1047	$6.25
Available to order. Add to View Price
#92033A RING-SNAP 92033-1202	$8.57
Available to order. Add to View Price
#92049 SEAL-OIL,FORK OUTERTB 92049-1372 Superseded by 92049-1435	$22.98
Available to order. Add to View Price
#92055 RING-O,FORK TOP CAP 92055-1051	$5.34
Available to order. Add to View Price
#92055A RING-O,TUBE ASSY 92055-1164	$9.70
Available to order. Add to View Price
#92055B O RING,12MM 92055-1201 Superseded by 670B2012	$3.14
Available to order. Add to View Price
#92093 SEAL,FORK OUTER TUBE 92093-1314 Superseded by 92093-1382	$25.04
Available to order. Add to View Price
#131 BOLT-FLANGED,8X50 130G0850 Superseded by 130BA0850	$2.19
Available to order. Add to View Price
#220 SCREW-PAN-CROS 220E0408	$3.21
Available to order. Add to View Price
