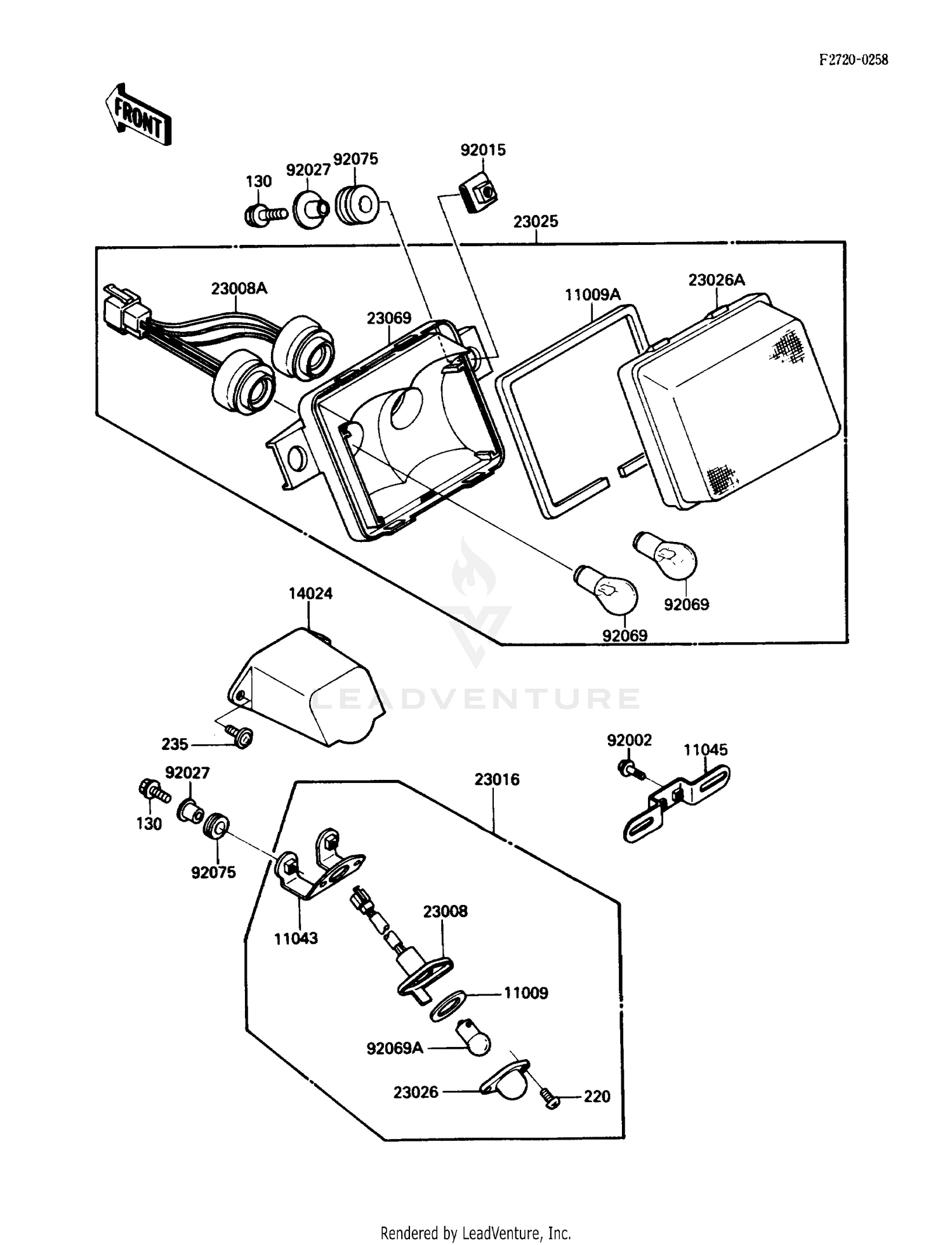

Taillight(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,LICENSE PLATE LAMP
11009-1372
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,TAIL LAMP LENS
11009-1662
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11043
BRACKET,LICENSE PLATE LAMP
11043-1497
|
$17.14 | ||
|
Available to order. Add to View Price |
|||
|
#11045
BRACKET,LICENSE
11045-1387
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,LICENSE PLATE L
14025-1821
|
$19.28 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,LICENSE PLATE LAMP
23008-1221
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#23008A
SOCKET-ASSY,TAIL LAMP
23008-1264
|
$33.79 | ||
|
Available to order. Add to View Price |
|||
|
#23016
LAMP-ASSY,LICENSE PLA
23016-1053
Superseded by 23016-1054
|
$70.14 | ||
|
Available to order. Add to View Price |
|||
|
#23025
LAMP-TAIL
23025-1166
|
$191.46 | ||
|
Available to order. Add to View Price |
|||
|
#23026
LENS,LAMP
23026-1054
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#23026A
LENS,TAIL LAMP
23026-1088
|
$83.39 | ||
|
Available to order. Add to View Price |
|||
|
#23069
LAMP-TAIL
23069-1078
Superseded by 23025-1160
|
$154.03 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X14
92002-1351
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1094
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-251
Superseded by 92152-0365
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 27/8W
92069-059
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 8W
92069-1012
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,10X24X12
92075-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X25
130D0625
Superseded by 130AA0625
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X10
220B0410
Superseded by 220AA0410
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#235
SCREW-PAN-WP-CROS
235C0616
Superseded by 235AB0616
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
