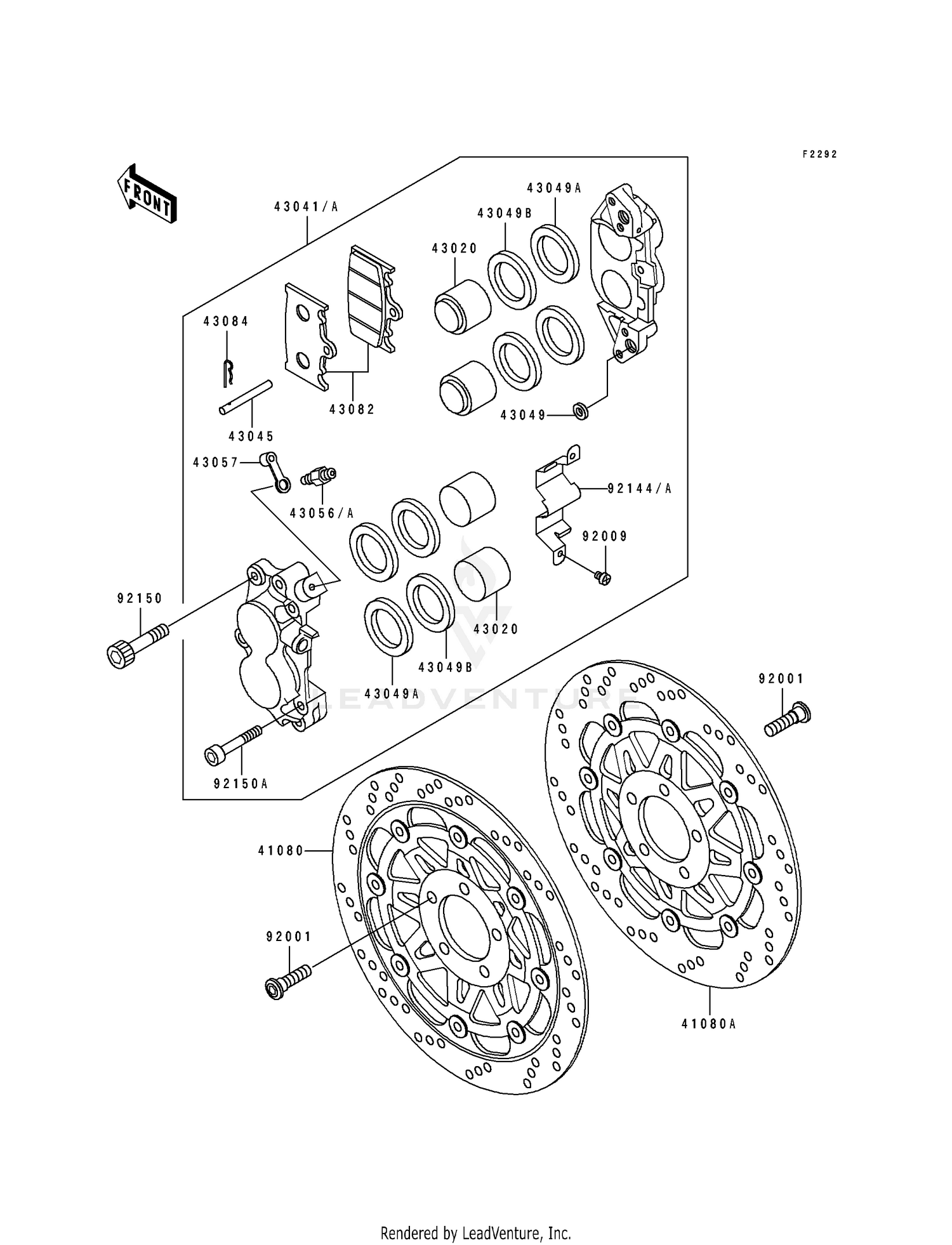

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41080
DISC,FR,LH,GRAY+DISC-
41080-1316-FF
Superseded by 41080-1316-5C
|
$405.36 | ||
|
Available to order. Add to View Price |
|||
|
#41080A
DISC,FR,RH,GRAY+DISC-
41080-1317-FF
Superseded by 41080-1317-5C
|
$405.36 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1092
|
$70.02 | ||
|
Available to order. Add to View Price |
|||
|
#43041
CALIPER-ASSY,FR,LH,M.
43041-1390-FE
|
$324.54 | ||
|
Available to order. Add to View Price |
|||
|
#43041A
CALIPER-ASSY,FR,RH,M.
43041-1391-FE
Superseded by 43041-1511-FE
|
$488.20 | ||
|
Available to order. Add to View Price |
|||
|
#43045
SHAFT-CALIPER
43045-007
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,SEAL,6.5X11.5X2.2
43049-1004
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#43049A
PACKING,PISTON SEAL
43049-1067
Superseded by 43049-1092
|
$10.03 | ||
|
Available to order. Add to View Price |
|||
|
#43049B
PACKING
43049-1068
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BLEEDER SET
43056-003
Superseded by 43085-001
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#43056A
BLEEDER SET
43056-1054
Superseded by 43085-001
|
$23.70 | ||
|
Unavailable |
|||
|
#43057
CAP-BREATHER
43057-003
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#43082
PAD-ASSY-BRAKE
43082-1110
|
$53.35 | ||
|
Available to order. Add to View Price |
|||
|
#43084
CLAMP,PAD
43084-003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,SOCKET,8X30
92001-1951
Superseded by 92154-1865
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009
BOLT,SOCKET,4X6
92009-1569
Superseded by 92009-1758
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1399
Superseded by 92145-1263
|
$29.64 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,COVER
92144-1400
Superseded by 92145-1366
|
$24.39 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,10X37
92150-1261
|
$10.74 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT
92150-1272
Superseded by 92150-1973
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
