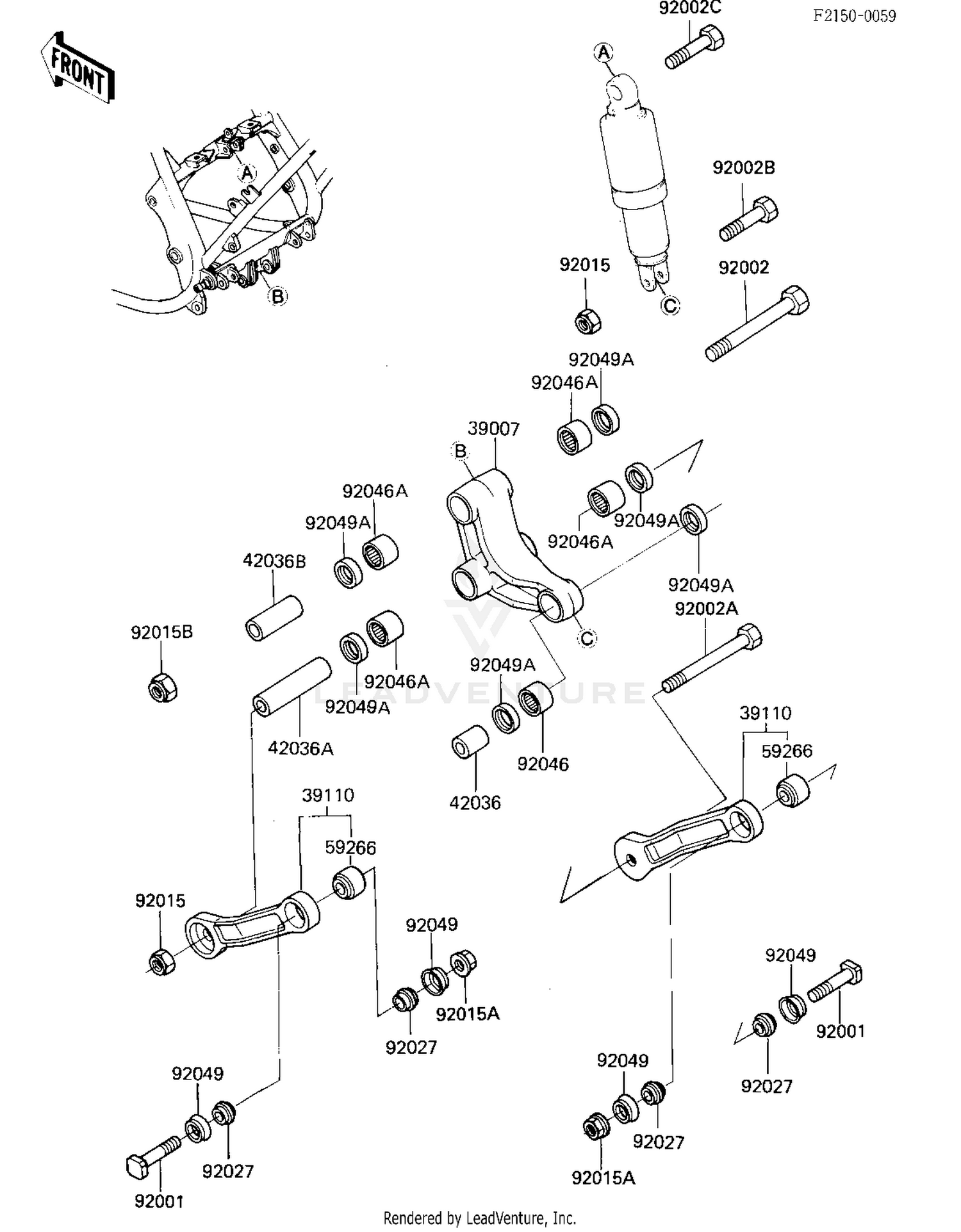

Rear Suspension Diagram

Item MSRP Qty
#39007 ARM-SUSP,UNI TRAK
39007-1026
 $105.71
Available to order.
Add to View Price
#39110 ROD-ASSY-TIE
39110-1017
 $171.20
Available to order.
Add to View Price
#42036 SLEEVE,12.1X20X26
42036-1072
 $17.09
Available to order.
Add to View Price
#42036A SLEEVE,12.1X20X84
42036-1075
 $32.02
Available to order.
Add to View Price
#42036B SLEEVE,14.1X20X55
42036-1084
 $27.94
Available to order.
Add to View Price
#59266 JOINT-BALL
59266-1051
 $115.59
Available to order.
Add to View Price
#92001 BOLT
92150-1402
Superseded by 92150-1736
 $12.02
Available to order.
Add to View Price
#92002 BOLT,14X108
92002-1128
 $17.20
Available to order.
Add to View Price
#92002A BOLT,12X106
92002-1129
 $13.22
Available to order.
Add to View Price
#92002B BOLT,12X55
92002-1130
 $10.28
Available to order.
Add to View Price
#92002C BOLT,10X50
92002-1131
 $5.00
Available to order.
Add to View Price
#92015 NUT,LOCK,12MM,BLACK
92015-1190
 $7.09
Available to order.
Add to View Price
#92015A NUT,OMM
92015-1392
 $5.10
Available to order.
Add to View Price
#92015B NUT-LOCK,14MM
92019-011
 $10.48
Available to order.
Add to View Price
#92027 COLLAR,L=5.5
92027-1392
 $7.04
Available to order.
Add to View Price
#92046 BEARING-NEEDLE
92046-1054
Superseded by 92046-1239
 $19.86
Available to order.
Add to View Price
#92046A BEARING-NEEDLE,FJ-202
92046-1061
 $24.76
Available to order.
Add to View Price
#92049 SEAL-OIL
92049-1083
 $22.69
Available to order.
Add to View Price
#92049A SEAL-OIL,GD20X26X4
92049-1108
 $9.78
Available to order.
Add to View Price
