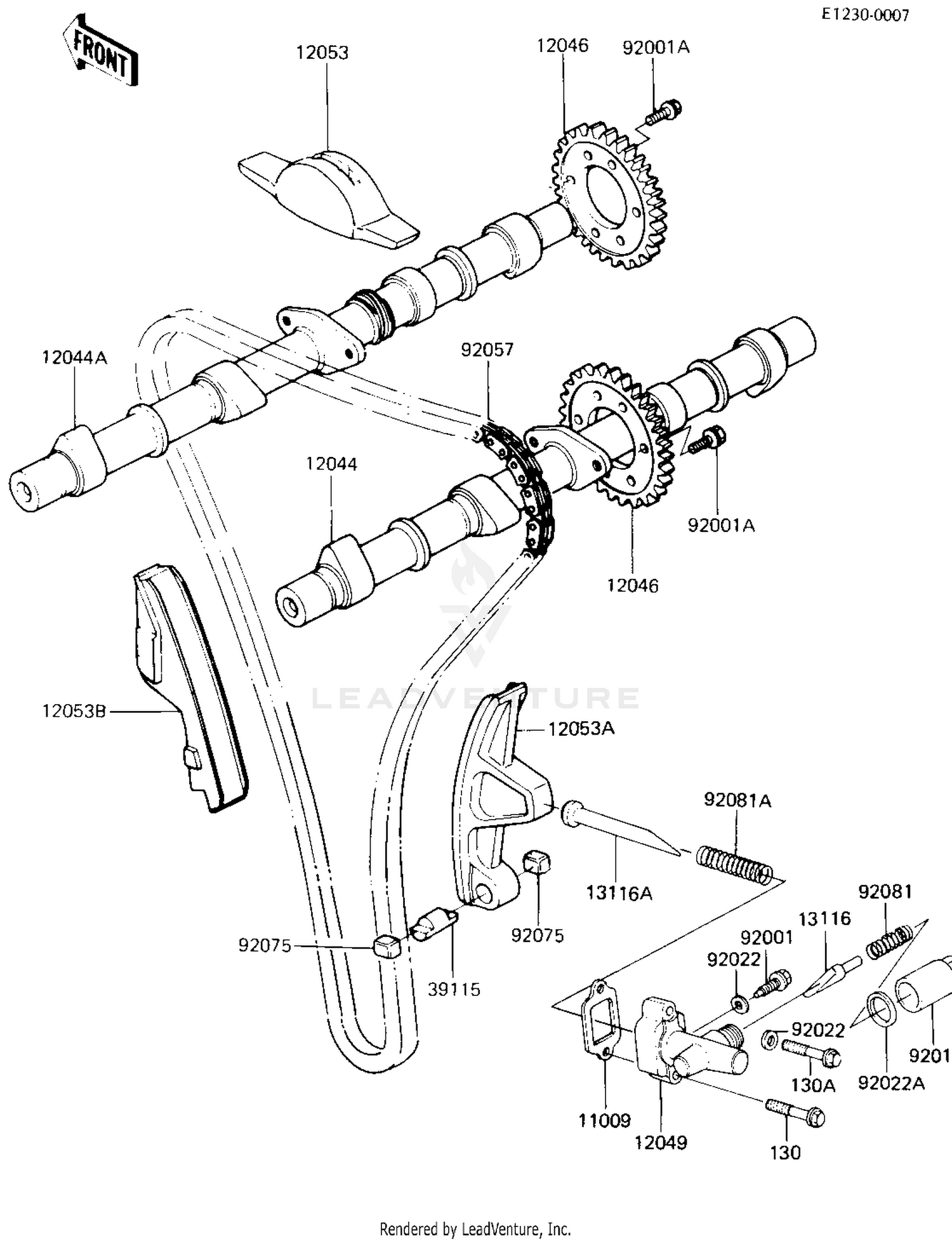

Camshafts/chain/tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,TENSIONER
11009-1980
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#12044
CAM SHAFT,INLET
12044-012
|
$299.14 | ||
|
Available to order. Add to View Price |
|||
|
#12044A
CAM SHAFT,EXHAUST
12044-013
|
$469.69 | ||
|
Available to order. Add to View Price |
|||
|
#12046
SPROCKET,CAMSHAFT 46T
12046-1021
|
$73.49 | ||
|
Available to order. Add to View Price |
|||
|
#12049
TENSIONER,CAM CHAIN
12049-1015
|
$49.74 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE,CHAIN UPPER
12053-1038
|
$32.10 | ||
|
Available to order. Add to View Price |
|||
|
#12053A
GUIDE-CHAIN REAR
12053-1054
|
$49.74 | ||
|
Available to order. Add to View Price |
|||
|
#12053B
GUIDE-CHAIN,FR
12053-1058
|
$37.35 | ||
|
Available to order. Add to View Price |
|||
|
#13116
ROD,PUSH,CAM CHAIN
13116-1012
|
$18.96 | ||
|
Available to order. Add to View Price |
|||
|
#13116A
ROD-PUSH,TENSIONER
13116-1036
|
$55.63 | ||
|
Available to order. Add to View Price |
|||
|
#39115
SHAFT,CAM CHAIN GUIDE
12052-003
|
$13.86 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,TENSIONER ADJUST
92001-1155
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,6X11
92003-208
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92015
CAP,TENSIONER,18M/M
92015-1100
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,18.3X24X1.4T
92022-1175
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,CAM,82RH2015-15
92057-1319
|
$120.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,CAM CHAIN GUID
92075-1314
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,TENSIONER
92081-1302
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,TENSIONER
92081-1374
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X30
130G0630
Superseded by 130BA0630
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X35
130H0635
Superseded by 130BA0635
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
