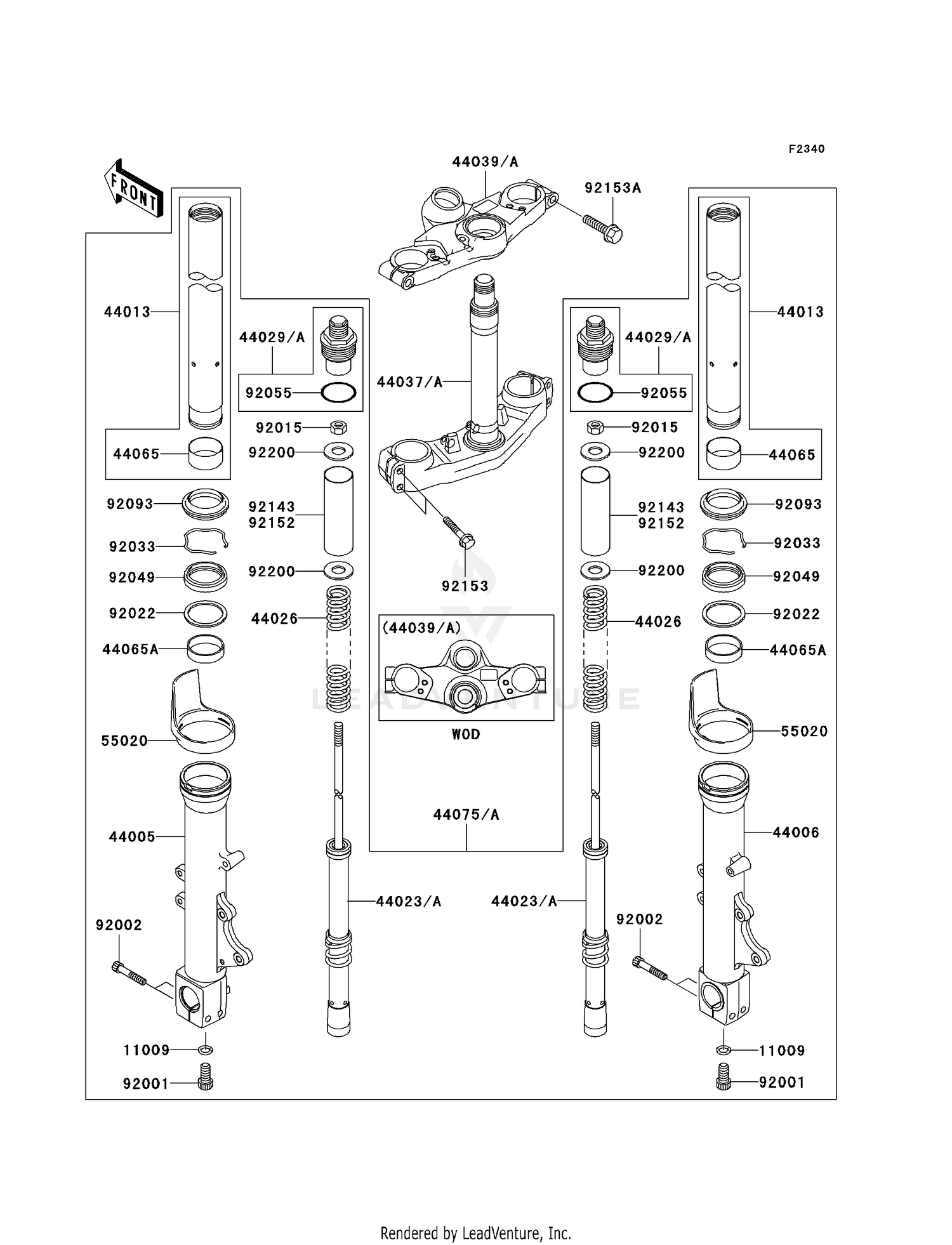

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER BOLT
11009-1127
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER,
44005-1429-458
|
$533.06 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1429-458
|
$533.06 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1504
|
$422.81 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-0010
|
$379.18 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1762
|
$97.67 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-0004
|
$141.84 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-0008
|
$803.66 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER,P.S
44039-0007-458
|
$331.57 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK,IN
44065-1142
|
$18.15 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK
44065-1143
|
$18.15 | ||
|
Available to order. Add to View Price |
|||
|
#44075
DAMPER-SET-FORK,P.SIL
44075-0016-458
|
$1,834.25 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,FORK
55020-1691
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FORK CYLINDER
92001-1309
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT-SOCKET,8X45
92002-1847
Superseded by 120CA0845
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1795
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1299
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1077
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER T
92049-1496
|
$21.70 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1123
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1480
|
$17.92 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,FORK,L=90
92143-1645
|
$24.70 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,8X45
92153-1154
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED,10X45
92153-1155
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1349
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
