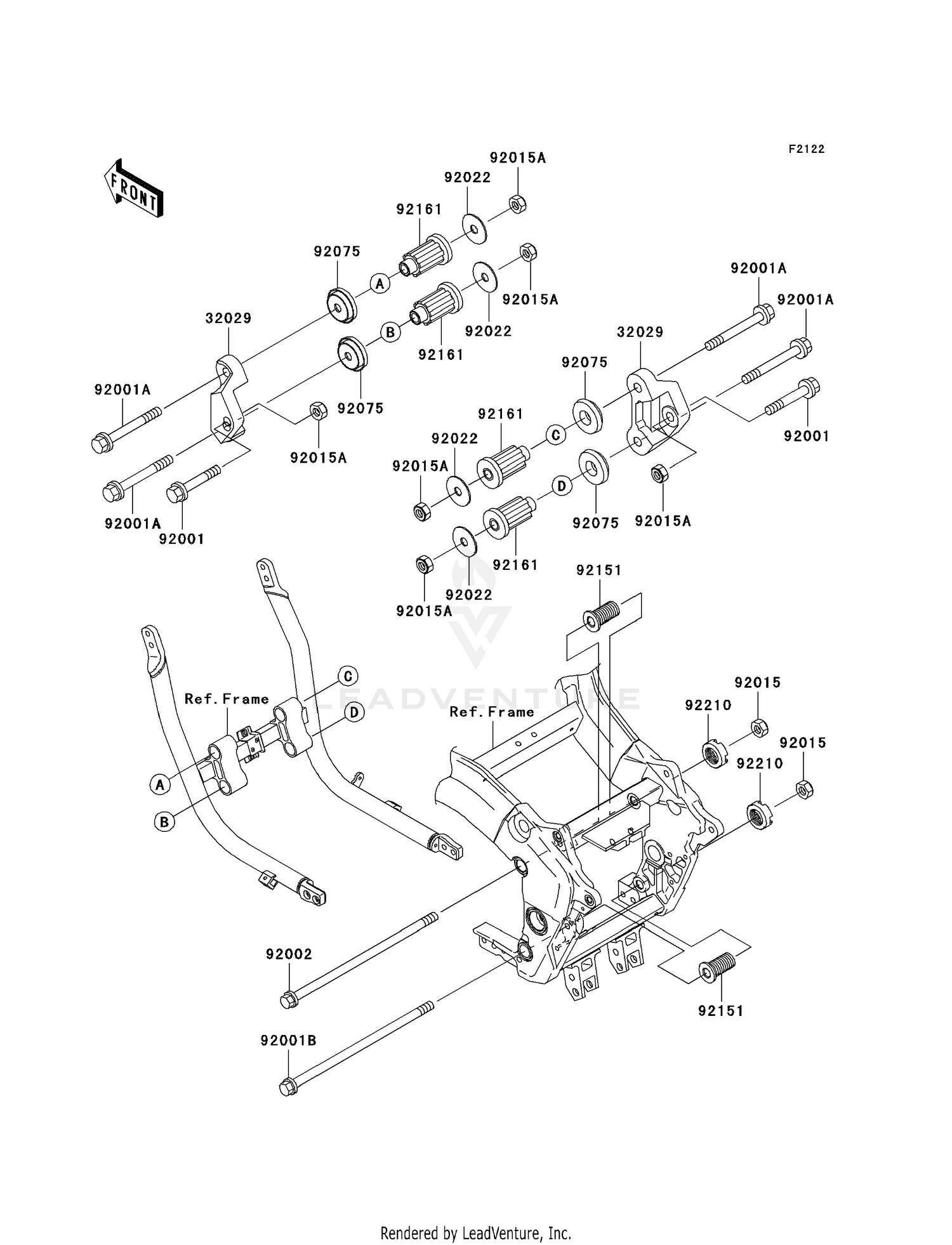

Engine Mount Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#32029
BRACKET-ENGINE
32029-1615
|
$65.44 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FLANGED,10X60
92001-1617
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,FLANGED,10X85
92001-1619
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,FLANGED,10X225,B
92001-1622
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,10X230
92002-1531
|
$20.24 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,10MM,BLACK
92015-1189
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,10MM
92015-1429
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.5X37X1.6
92022-1246
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,ENGINE MOUNT,SIDE
92075-1274
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,ENGINE MOUNT,18M
92151-1609
|
$24.44 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,ENGINE MOUNT,M
92161-1276
|
$34.78 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,18MM
92210-1203
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
