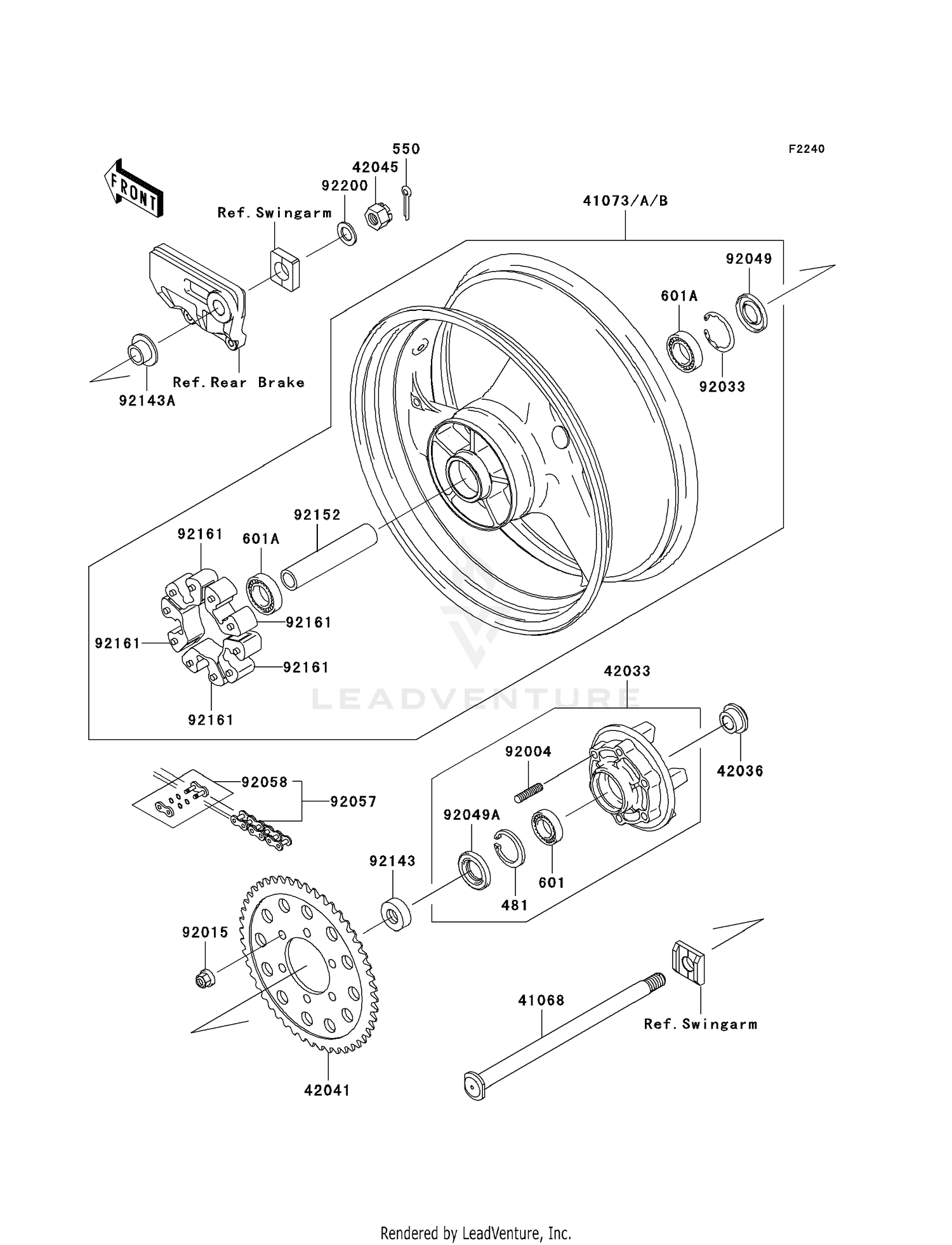

Rear Wheel/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#481
RING-SNAP,55MM
481J5500
Superseded by 92033-1274
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6006G
601B6006G
|
$28.00 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL,#6304UUC3
601B6304UU
|
$33.17 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,FR
41068-1447
|
$121.29 | ||
|
Available to order. Add to View Price |
|||
|
#41073A
WHEEL-ASSY,RR,SILVER
41073-1669-V5
|
$1,071.16 | ||
|
Available to order. Add to View Price |
|||
|
#41073B
WHEEL-ASSY,RR,C.GOLD
41073-1669-457
|
|||
|
Unavailable |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-1203
|
$290.85 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB COUPLIN
42036-1366
|
$22.00 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,44T
42041-1417
|
$104.07 | ||
|
Available to order. Add to View Price |
|||
|
#42045
NUT,CASTLE,18MM
42045-018
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X19
92004-1275
Superseded by 92004-0028
|
$8.61 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,10MM
92015-1335
Superseded by 92210-0276
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,28X52X5
92049-1061
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,PJN40556
92049-1263
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK50ZVX2X
92057-0005
|
$281.27 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-1104
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,REAR AXLE,L=14
92143-1094
|
$31.80 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,RR AXLE,RH,L=1
92143-1915
|
$29.26 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,RR HUB
92152-1319
Superseded by 92152-0129
|
$33.61 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,SHOCK,RR HUB
92161-1069
|
$29.15 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,19X32X2.6
92200-1489
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
