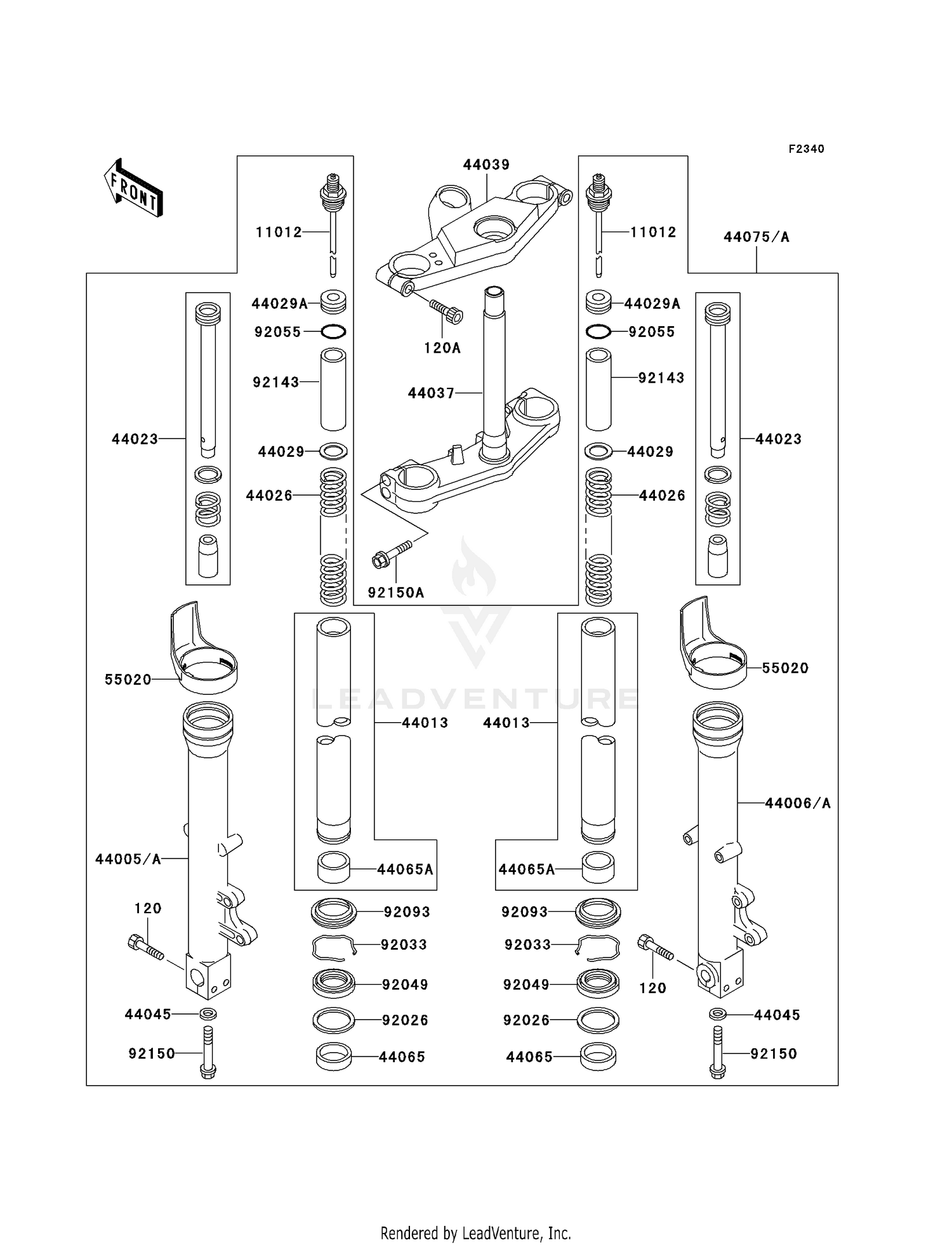

2003 Kawasaki ZZR 600 FRONT FORK OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,8X40
120P0840
Superseded by 120CA0840
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#120A
BOLT-SOCKET,8X40
120S0840
Superseded by 120CB0840
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1928
|
$14.60 | ||
|
Available to order. Add to View Price |
|||
|
#44005A
PIPE-LEFT FORK OUTER,
44005-1387-GD
|
$425.48 | ||
|
Available to order. Add to View Price |
|||
|
#44006A
PIPE-RIGHT FORK OUTER
44006-1387-GD
|
$433.01 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1409
|
$326.74 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-COMP-FORK
44023-1096
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1583
|
$68.83 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1131
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#44029A
SEAT-FORK SPRING
44029-1158
|
$24.94 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1311
|
$360.71 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER,C.G
44039-1251-EZ
|
$263.74 | ||
|
Available to order. Add to View Price |
|||
|
#44045
GASKET,FORK CYLINDER BOLT
44045-051
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK
44065-1079
|
$22.62 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK,INNER PIPE
44065-1087
|
$16.54 | ||
|
Available to order. Add to View Price |
|||
|
#44075A
DAMPER-SET-FORK,G.GRA
44075-1065-GD
|
$1,471.35 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,FORK
55020-1645
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,FORK OUTER
92026-1276
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1222
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1363
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FORK TOP
92055-1420
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK
92093-1268
|
$23.40 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1758
|
$20.55 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X18
92150-1432
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT-SOCKET,8X35
92150-1613
Superseded by 120CB0835
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
