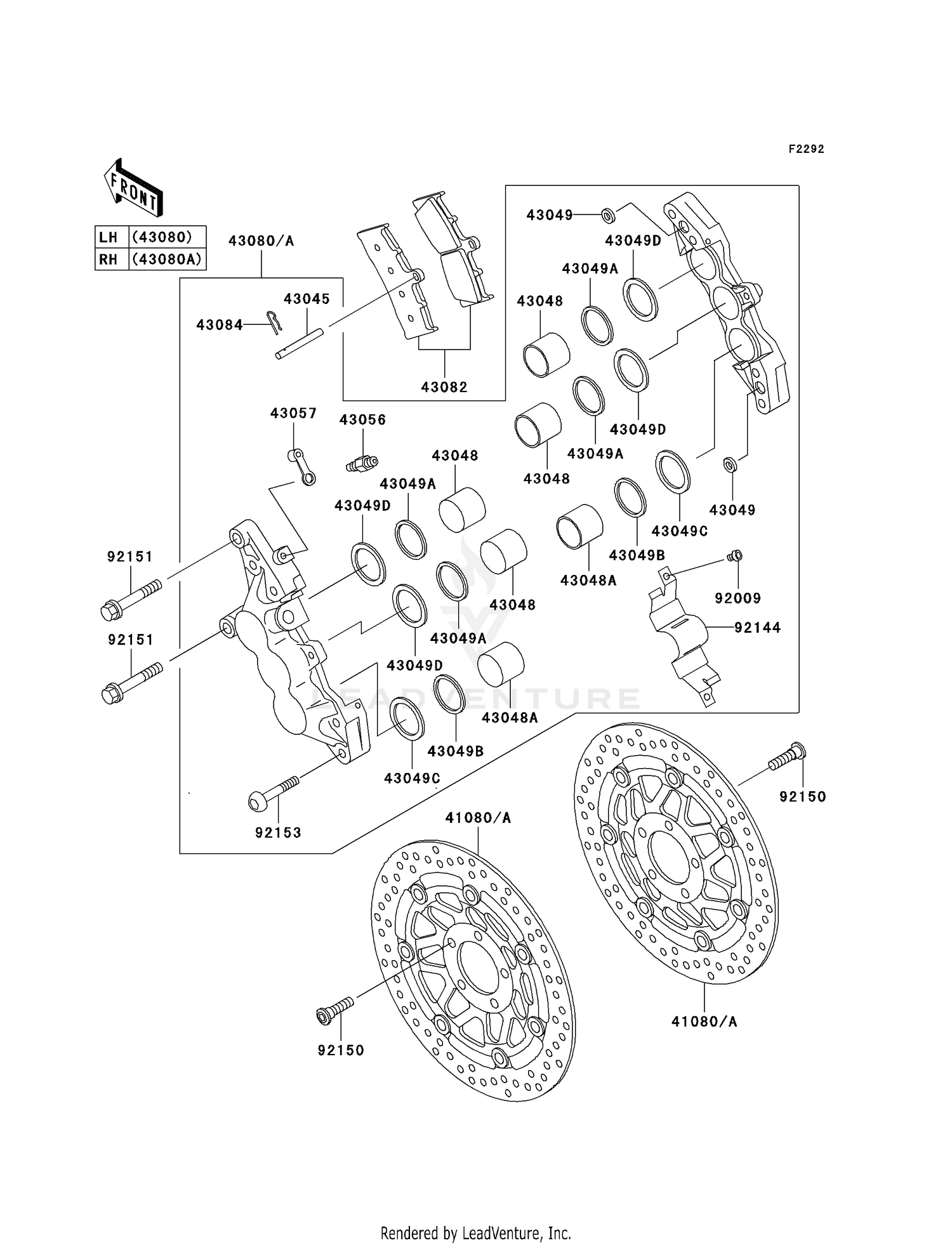

Front Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41080A
DISC,FR,HOUSING BLK+D
41080-1442-5C
|
$446.02 | ||
|
Available to order. Add to View Price |
|||
|
#43045
SHAFT-CALIPER
43045-007
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#43048
PISTON-CALIPER,DIA=26.97
43048-1078
|
$63.53 | ||
|
Available to order. Add to View Price |
|||
|
#43048A
PISTON-CALIPER
43048-1079
|
$70.91 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,SEAL,6.5X11.5X2.2
43049-1004
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#43049A
PACKING,PISTON
43049-1055
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#43049B
PACKING,PISTON
43049-1059
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#43049C
PACKING,PISTON SEAL
43049-1090
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#43049D
PACKING,PISTON SEAL
43049-1096
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BLEEDER SET
43056-1054
Superseded by 43085-001
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-003
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#43080
CALIPER-SUB-ASSY,FR,L
43080-0024-GN
|
$415.90 | ||
|
Available to order. Add to View Price |
|||
|
#43080A
CALIPER-SUB-ASSY,FR,R
43080-0025-GN
|
$415.90 | ||
|
Available to order. Add to View Price |
|||
|
#43082
PAD-ASSY-BRAKE
43082-1259
|
$68.85 | ||
|
Available to order. Add to View Price |
|||
|
#43084
CLAMP,PAD
43084-003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92009
BOLT,SOCKET,4X6
92009-1758
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1903
|
$17.97 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X30
92150-1771
Superseded by 92154-1865
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,10X37
92151-1610
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X40
92153-0360
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
