1994 KTM 125 EGS Wiring Harness 3 OEM Parts

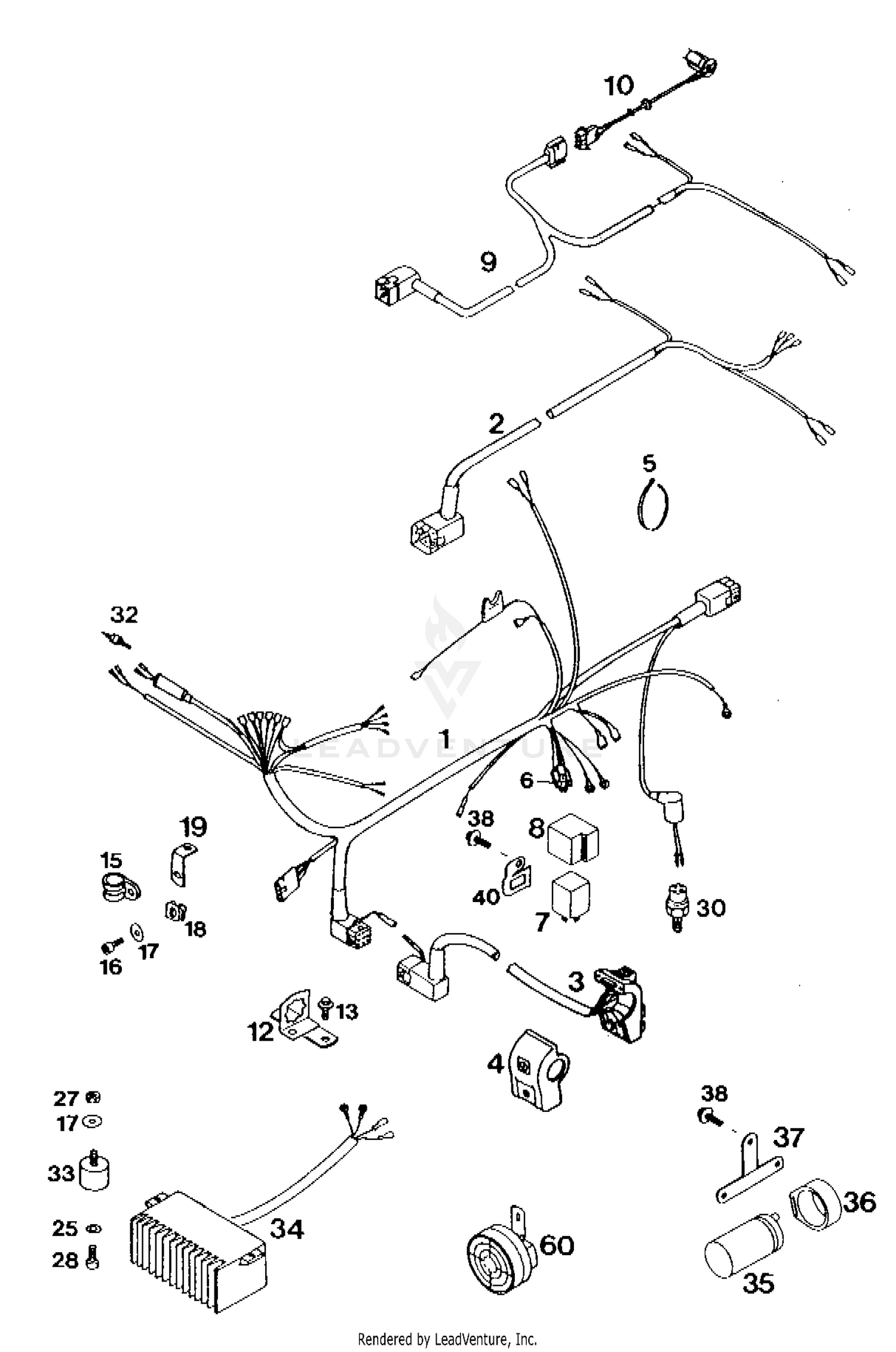

Wiring Harness 3 Diagram

Item	MSRP	Qty
#1 WIRING HARNESS 54611475100
Unavailable
#2 WIRING HARNESS 54611476100
Unavailable
#3 HEAD LAMP SWITCH 54611470100
Unavailable
#4 SWITCH SUPPORT 57011070050
Unavailable
#5 CABLE TIE 300/4,8MM BLACK 44011076305	$2.41
Available to order. Add to View Price
#6 CABLE CONNECTOR 44111006000
Unavailable
#7 FLASHER UNIT 44611207000
Unavailable
#8 SUPPORTING RING 54511046000
Unavailable
#9 WIRNING HARNESS 54611277000
Unavailable
#10 REAR WIRNING HARNESS '93 58311276000	$49.59
Available to order. Add to View Price
#12 BRACKET 54611083100
Unavailable
#13 HH COLLAR SCREW M6X10 TX30 0014060103 Superseded by 0024060106	$3.62
Available to order. Add to View Price
#15 CLAMP 54211052100
Unavailable
#16 AH SCREW DIN0912-M 6X16 0912060163	$1.20
Available to order. Add to View Price
#17 WASHER DIN9021-A 6,4 0021060003	$2.41
Available to order. Add to View Price
#18 clip nut M6 50235033300 Superseded by 54603048100	$4.83
Available to order. Add to View Price
#19 BRACKET 13106038000
Unavailable
#27 hex nut DIN 934 M6 0934060003	$1.20
Available to order. Add to View Price
#28 AH SCREW DIN0912-M 6X10 0912060103	$1.20
Available to order. Add to View Price
#30 BRAKE LIGHT SWITCH 42013121000	$37.76
Available to order. Add to View Price
#32 BREAK LIGHT SWITCH 51011050000 Superseded by 51011050100	$23.42
Available to order. Add to View Price
#33 RUBBER GROMMET 20X15-M6X10 (2) 54335031000	$9.19
Unavailable
#34 VOLTAGE REGULATOR 54611434000
Unavailable
#35 CONDENSATOR 25V, 10.000 MF 49111435100	$67.75
Available to order. Add to View Price
#36 CAPACITOR BRACKET 54511048000	$5.22
Available to order. Add to View Price
#37 BRACKET 54611448000
Unavailable
#38 HH COLLAR SCREW M6X10 TX30 0014060103 Superseded by 0024060106	$3.62
Unavailable
#40 RETAINING PLATE 58011031000
Unavailable
#60 DIRECT CURR. HORN 54511060000
Unavailable
