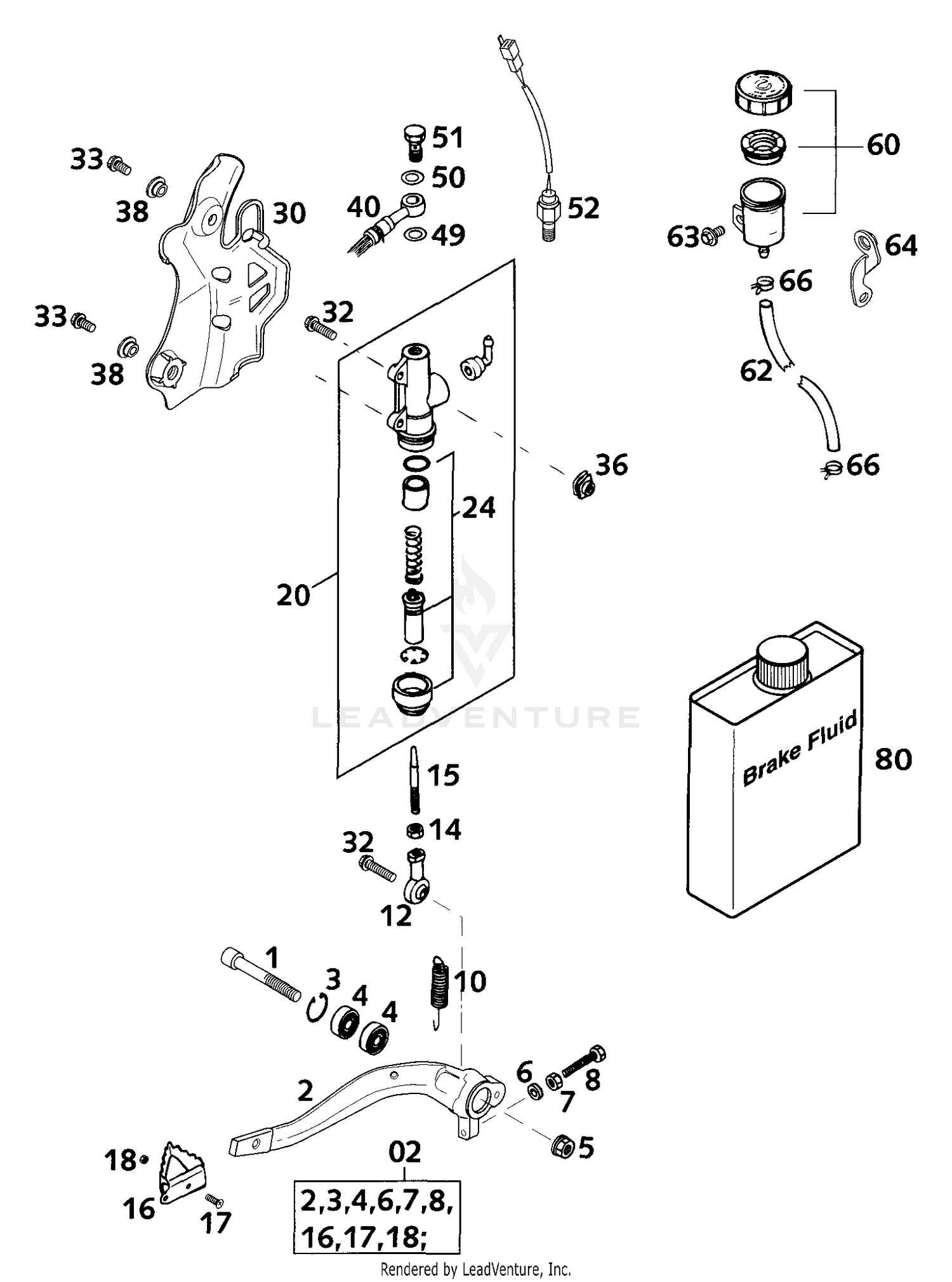

Rear Brake Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AH SCREW DIN0912-M 8X60
0912080603
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#02
REAR FOOT BRAKE LEVER CPL.2000
59003060044
|
$82.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP DIN0472-22X1
0472022100
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
SELF LOCKING NUT M8 10.9
54310086200
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER 6 X 12 X 3
12011016000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
hex nut DIN 934 M6
0934060003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
HH SCREW DIN0933-M 6X35
0933060353
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
Return spring for brake lever
54603062000
Superseded by 54603062200
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWIVEL HEAD M6 FOOT BRAKE LEV.
54603069000
|
$43.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
hex nut DIN 934 M6
0934060003
|
$1.20 | ||
|
Unavailable |
|||
|
#15
PRESSURE ROD ALU 250 '90
54603068000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
STEP PLATE FOR BRAKE LEVER
54603060150
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
OVAL HEAD SCREW DIN0966-M 5X20
0966050203
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#20
FOOTBRAKE CYLINDER D=12MM 2000
50313060000
|
$81.59 | ||
|
Available to order. Add to View Price |
|||
|
#24
REP. KIT PISTON 12MM 2000
50313061000
|
$40.91 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRAKECYL.PROTECTOR RACING 2000
59003093000
|
$6.80 | ||
|
Unavailable |
|||
|
#32
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#33
HH collar screw M6x12 TX30
0015060123
Superseded by 0025060126
|
$3.62 | ||
|
Unavailable |
|||
|
#36
clip nut M6
50235033300
Superseded by 54603048100
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#38
Collar bushing 6x11x16x5áMM
50308052000
Superseded by 79608152000
|
$2.30 | ||
|
Unavailable |
|||
|
#40
BRAKE HOSE RE.590MM 125-380'98
50313070000
|
$68.24 | ||
|
Unavailable |
|||
|
#49
CU-SEAL RING DIN7603-10X16X1,5
42013026000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#51
HOLLOW SCREW M10X1X19
50213025000
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#52
BRAKE LIGHT SWITCH REAR '98
50311051100
|
$43.44 | ||
|
Available to order. Add to View Price |
|||
|
#60
BRAKE FLUID RESERVOIR '89
54513030044
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#62
Hose reservoir 6x1,5
58007016101
Superseded by 57313072001
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#63
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#64
BRACKET BRAKE FLUID RESERVOIR
59013068000
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#66
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#80
BRAKE FLUID DOT 5.1
306054
|
|||
|
Unavailable |
|||
