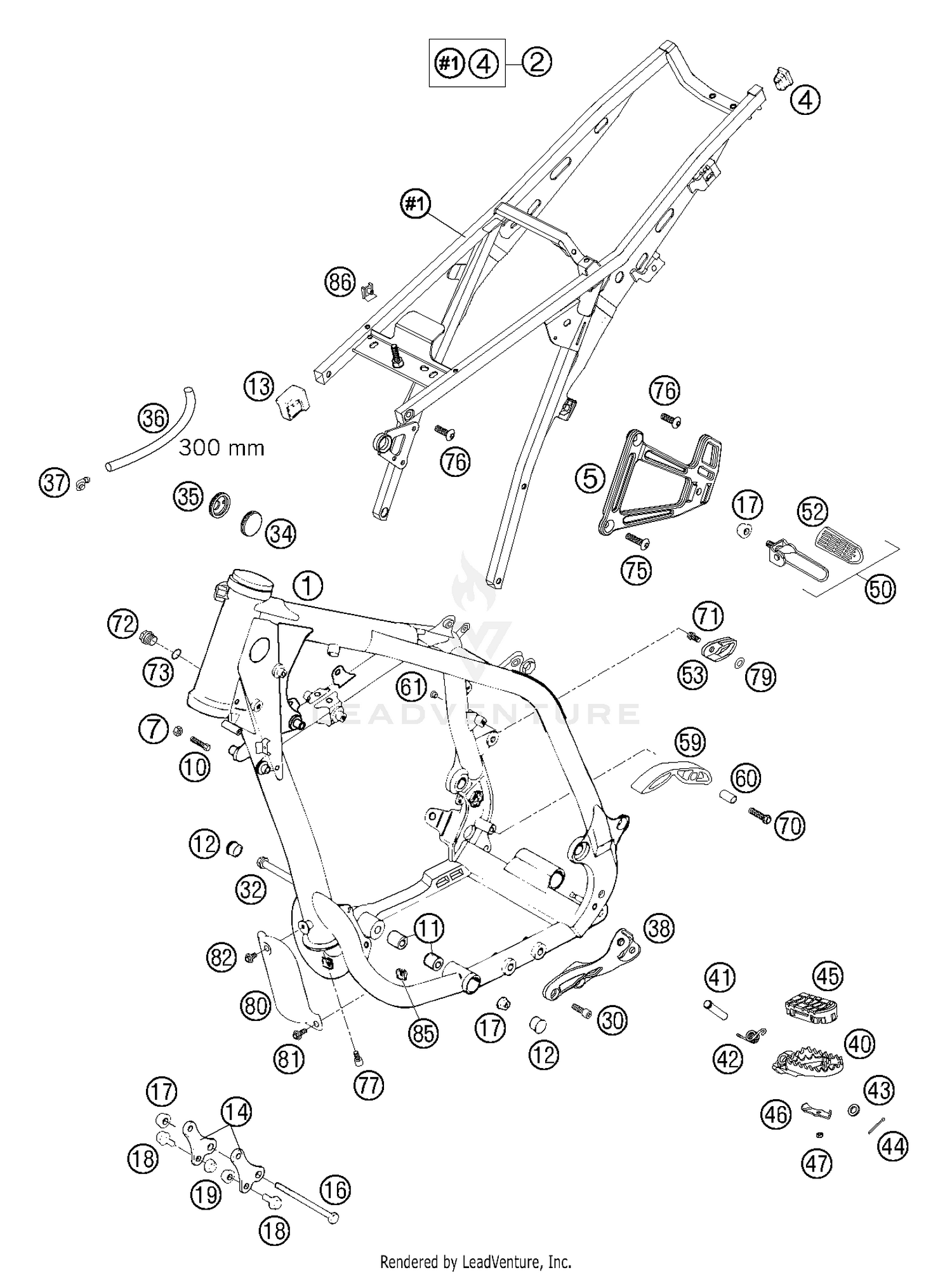

Frame, Sub Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME CPL. "EE05" 640 SM 05
58403101044/30
|
|||
|
Unavailable |
|||
|
#2
SUBFRAME CPL. ''P5'' 05
5860300204430
|
$485.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG 12 X 17 MM
58303002090
|
$1.09 | ||
|
Unavailable |
|||
|
#5
FOOTREST BRACKET R/S BLACK
5810300420030
|
$70.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
FOOTREST BRACKET RE.L/S BLA.04
5870304800030
|
|||
|
Unavailable |
|||
|
#7
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER ROLLER 10,3X20X22
58003012000
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
PVC CAP D=22MM
71001012100
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK SUPPORT '93
58307015000
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
ENGINE SUPPORT AGW '94
58303055000
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
ENGINE BRAC.SCREW M10X110 WS13
58403013000
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH COLLAR SCREW M 8X16 WS=13
49109481052
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
SELF LOCKING NUT M8 10.9
54310086200
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
AH-COLLAR SCREW M10X25 ISA45
0912100250
Superseded by 0032100256S
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#32
ENGINE BRAC.SCREW M10X160 WS13
58403014000
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLUG 37MM
54606004000
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLUG 37MM PERFORATED 04
54606004100
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#36
PVC-HOSE 7X10 PER METER
55007016001
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
ANGLE PIECE '97
50303089000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#38
FOOTREST BRACKET LEFT ALU 05
58403038000
Superseded by 58403038100
|
$98.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST L/S 08
59003040250
Superseded by 78003040050
|
$46.69 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST R/S 08
59003041250
Superseded by 78003041050
|
$46.69 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#42
FOOTREST SPRING L/S & R/S
54603041000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#43
washer DIN 125 A 10.5
0125100003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#45
FOOTREST RUBBER FRONT L/S 03
60003040010
|
$23.69 | ||
|
Available to order. Add to View Price |
|||
|
#45
FOOTREST RUBBER FRONT R/S 03
60003041010
|
$23.69 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLOSING PANEL FRONT L/S R/S 03
60003044010
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#50
FOOTREST REAR L/S CPL. '95
58303050044
|
$108.45 | ||
|
Available to order. Add to View Price |
|||
|
#50
FOOT REST REAR R/S CPL.'95
58303150044
|
$106.56 | ||
|
Available to order. Add to View Price |
|||
|
#52
FOOTREST RUBBER L/S&R/S DUKE95
58303051000
|
$16.79 | ||
|
Available to order. Add to View Price |
|||
|
#53
CHAIN SLIDING PIECE 05
58604069000
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#59
CHAIN SLIDING PIECE BELOW '97
51103053000
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#60
BUSHING 8,2X10X20
51103053051
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#61
PLASTIC CAP SFL10
54403135000
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#70
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#71
HH COLLAR SCREW M8X16 TX40
0015080163
Superseded by 0025080166
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#72
PLUG DIN0910-M16X1,5
0910160153
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#73
CU-SEAL RING 16X22X2
0603162220
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#75
COUNTER-SUNK SCREW ISA45 M8X30
54510052200
Superseded by 0019080306S
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#76
COUNTER-SUNK SCREW ISA45 M8X26
54510052100
Superseded by 0019080266S
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#77
AH SCREW DIN7984-M 6X10
0984060103
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#79
washer DIN 125 A -8.4
0125080003
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#80
COVER OIL FILTER '94
58303010000
|
$34.11 | ||
|
Available to order. Add to View Price |
|||
|
#81
HH collar screw M6x15 TX30
0014060153
Superseded by 0024060156
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#82
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#85
clip nut M6
50235033300
Superseded by 54603048100
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#86
clip nut M6
54603048100
|
$4.39 | ||
|
Unavailable |
|||
