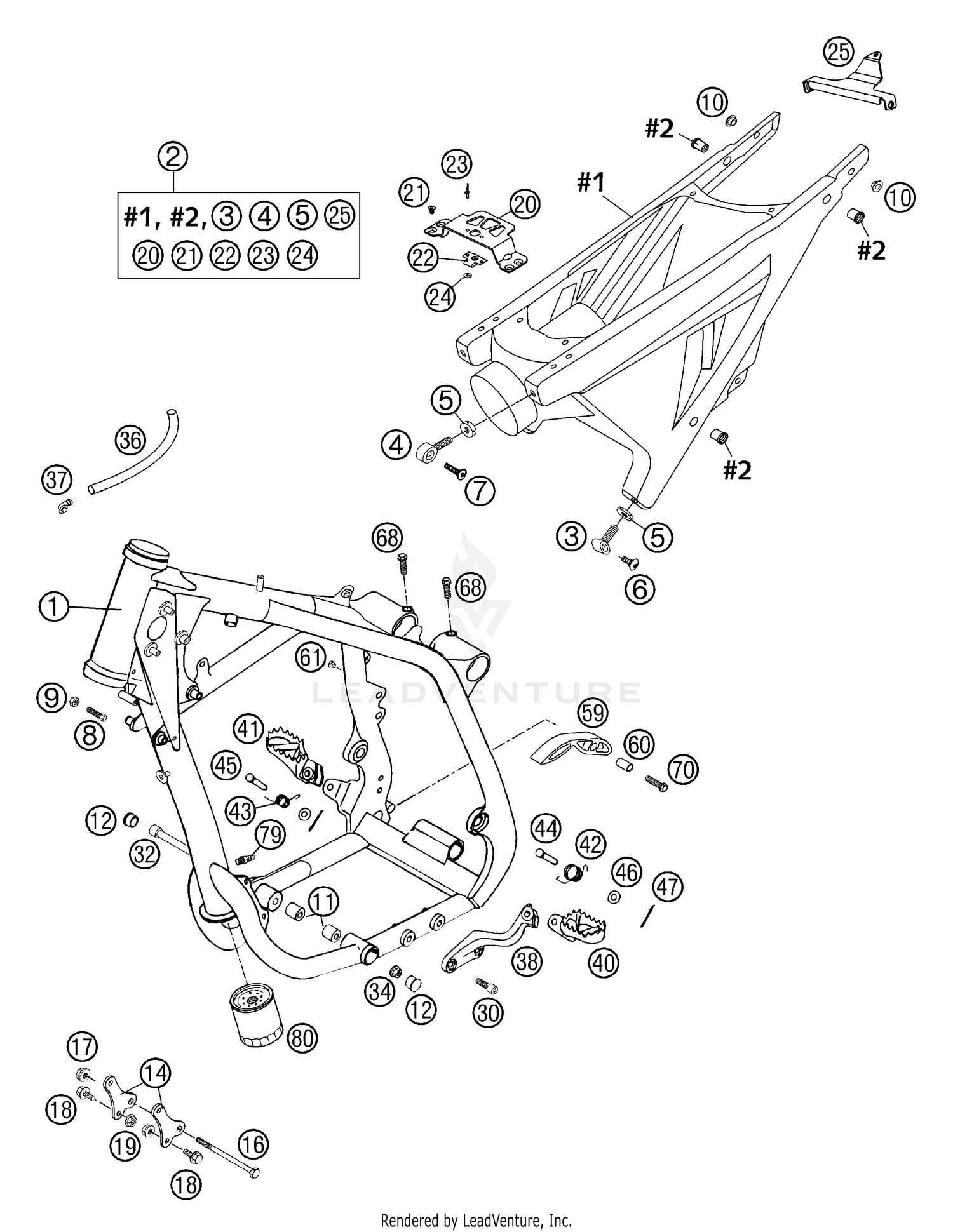

Frame, Sub Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME CPL. 660SM FACTORY 04
57303001144/30
|
|||
|
Unavailable |
|||
|
#2
SUBFRAME REAR CPL. CARBON 2003
57308022044
|
|||
|
Unavailable |
|||
|
#3
EYE BOLT FOR SUBFRAME BOTTOM
57303003200
|
|||
|
Unavailable |
|||
|
#4
EYE BOLT FOR SUB FRAME TOP
57303004200
|
|||
|
Unavailable |
|||
|
#5
HOLE NUT 660 SMS 2003
57303005000
|
|||
|
Unavailable |
|||
|
#6
FLAT HEAD SCREW M. ISA45 M8X20
54610052000
Superseded by 0019080206S
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
COUNTER-SUNK SCREW ISA45 M8X26
54510052100
Superseded by 0019080266S
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSHING FOR SILENCER SUPPORT
57303007050
|
|||
|
Unavailable |
|||
|
#11
SPACER ROLLER 10,3X20X22
58003012000
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
PVC CAP D=22MM
71001012100
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
ENGINE SUPPORT AGW '94
58303055000
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
ENGINE BRAC.SCREW M10X110 WS13
58403013000
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
flanged hex nut DIN 6927 M10 WS15
49009082000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
HH COLLAR SCREW M 8X16 WS=13
49109481052
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
SELF LOCKING NUT M8 10.9
54310086200
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
SUPPORT BRACKET FOR SEAT 03
57303011000
|
|||
|
Unavailable |
|||
|
#21
FLAT H.SCEW DIN7991-M5X10 10.9
0991050102
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
QUICK RELEASE LATCHPLATE
45007040050
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUMMY RIVET 3,2X10 STEEL
0011321001
|
|||
|
Unavailable |
|||
|
#24
WASHER DIN0134- 3,2
0134030003
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
TAIL STRUTTING 660 SMS
57303002050
|
|||
|
Unavailable |
|||
|
#30
AH-COLLAR SCREW M10X25 ISA45
0912100250
Superseded by 0032100256S
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#32
ENGINE BRAC.SCREW M10X160 WS13
58403014000
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#36
PVC-HOSE 6X9
31007107001
Superseded by 50335030001
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#37
ANGLE PIECE '97
50303089000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#38
FOOTREST BRACKET LEFT BLACK 04
57303038100/30
|
|||
|
Unavailable |
|||
|
#40
FOOTREST L/S BLACK
5830304000030
|
$28.09 | ||
|
Available to order. Add to View Price |
|||
|
#41
FOOTREST R/S BLACK 03
57303140000/30
|
|||
|
Unavailable |
|||
|
#42
FOOTREST SPRING L/S '93
58303041000
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
FOOTREST SPRING L/S & R/S
54603041000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT FOR FOOTREST
58303044000
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIN FOR FOOT PED 51.5X9.8 MM
54603044000
Superseded by 54803044000
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#46
washer DIN 125 A 10.5
0125100003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#59
CHAIN SLIDING PIECE BELOW '97
51103053000
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#60
BUSHING 8,2X10X20
51103053051
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#61
PLASTIC CAP SFL10
54403135000
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#68
HH collar screw M8x25
0015080253
Superseded by 0025080256
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#70
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#79
CONNECT. FOR VENTILATION M6 02
57331096052
|
|||
|
Unavailable |
|||
|
#80
OVERFLOW RESERVOIR SUPERM. 02
57303096000
|
|||
|
Unavailable |
|||
