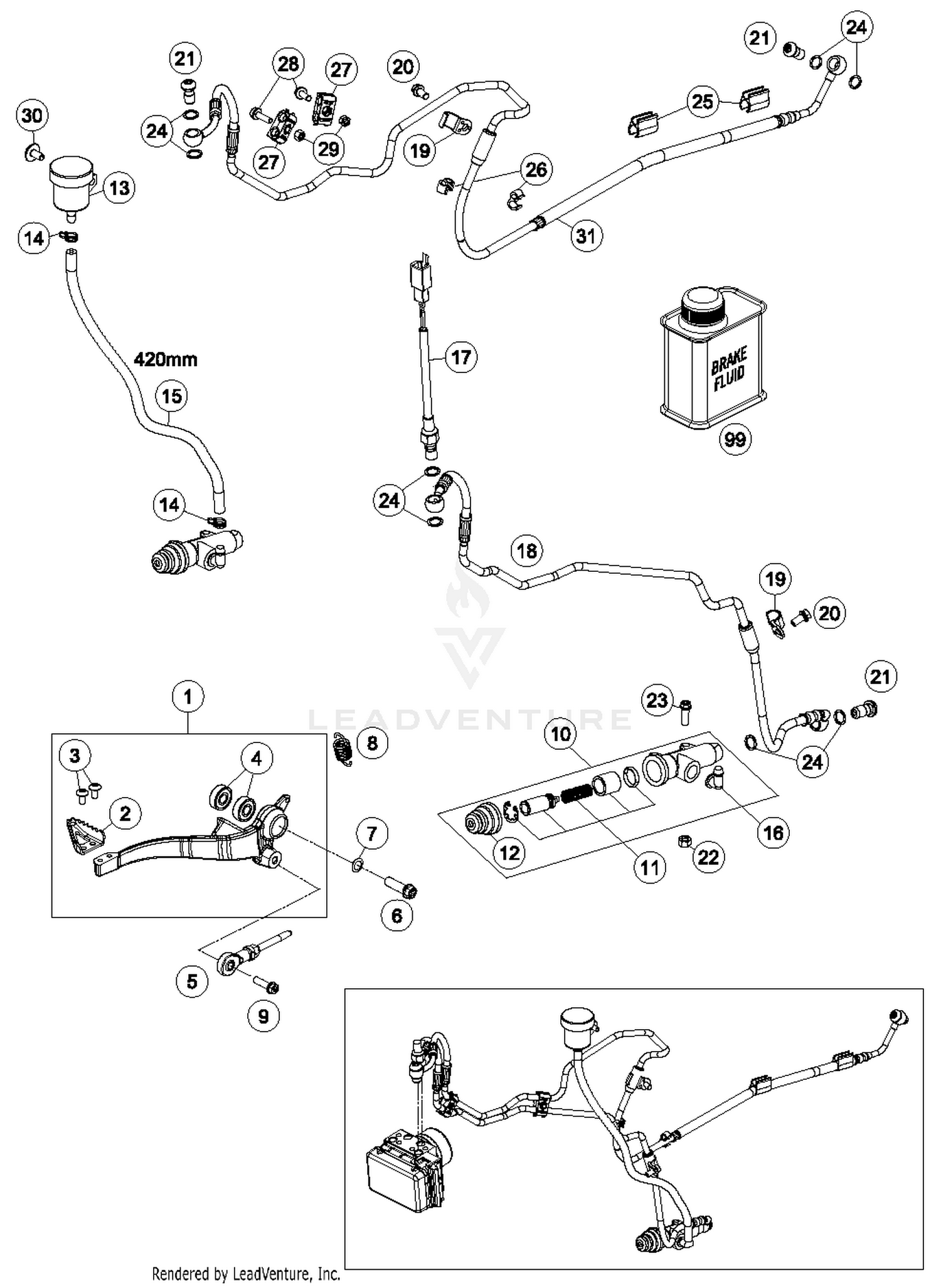

Rear Brake Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOT BRAKE LEVER CPL. 11
7651305024401
|
$145.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
STEP PLATE FOOT BRAKE LEVER 03
60013051000
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW TORX M5X10 05
58605083010
|
$2.41 | ||
|
Unavailable |
|||
|
#4
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
PUSH ROD CPL.
76513056144
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
HH COLLAR SCREW M8X25 TX40
0025080256S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK WASHER 8MM
36003014000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
Return spring for brake lever
54603062000
Superseded by 54603062200
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
HH collar screw M6x20 TX30
0025060206S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
MAIN BRAKE CYLINDER
54513101044
Superseded by 54513101144
|
$149.09 | ||
|
Unavailable |
|||
|
#11
REPAIR KIT PISTON 13MM
76513061000
|
$69.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER SLEEVE
54513151000
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRAKE FLUID RESERVOIR '89
54513030044
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
Hose reservoir 6x1,5
69013069001
Superseded by 57313072001
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
ANGLE PIECE
54513155000
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRAKE LIGHT SWITCH REAR
62111051000
|
$34.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRAKE HOSE REAR MASTER CYL.
76542003000
|
$151.46 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
76542050000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
HH collar screw M6x12 TX30
0025060126
|
$3.62 | ||
|
Unavailable |
|||
|
#21
banjo bolt M10x1x19.5
62113020100
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
STOP NUT M6 DIN6926 A2-70
0926060000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
HH collar screw M6x25 TX30
0025060256
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
sealing ring DIN 7603 10x14x1
0603100141
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE SUPPORT 10/6MM 06
54813026000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP 5/7 MM 06
60111094000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
SUPPORT FOR BRAKE HOSE M5
60113146000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
HH collar screw M5x16 TX30
0025050166
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#29
HEXAGON NUT DIN0934-M 5
0934050003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#30
HH collar screw M6x13 TX30
0024060136
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRAKE HOSE REAR CALIPER
76542001000
|
$177.20 | ||
|
Available to order. Add to View Price |
|||
|
#99
BRAKE FLUID DOT5.1 0,25L
00062030000
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
