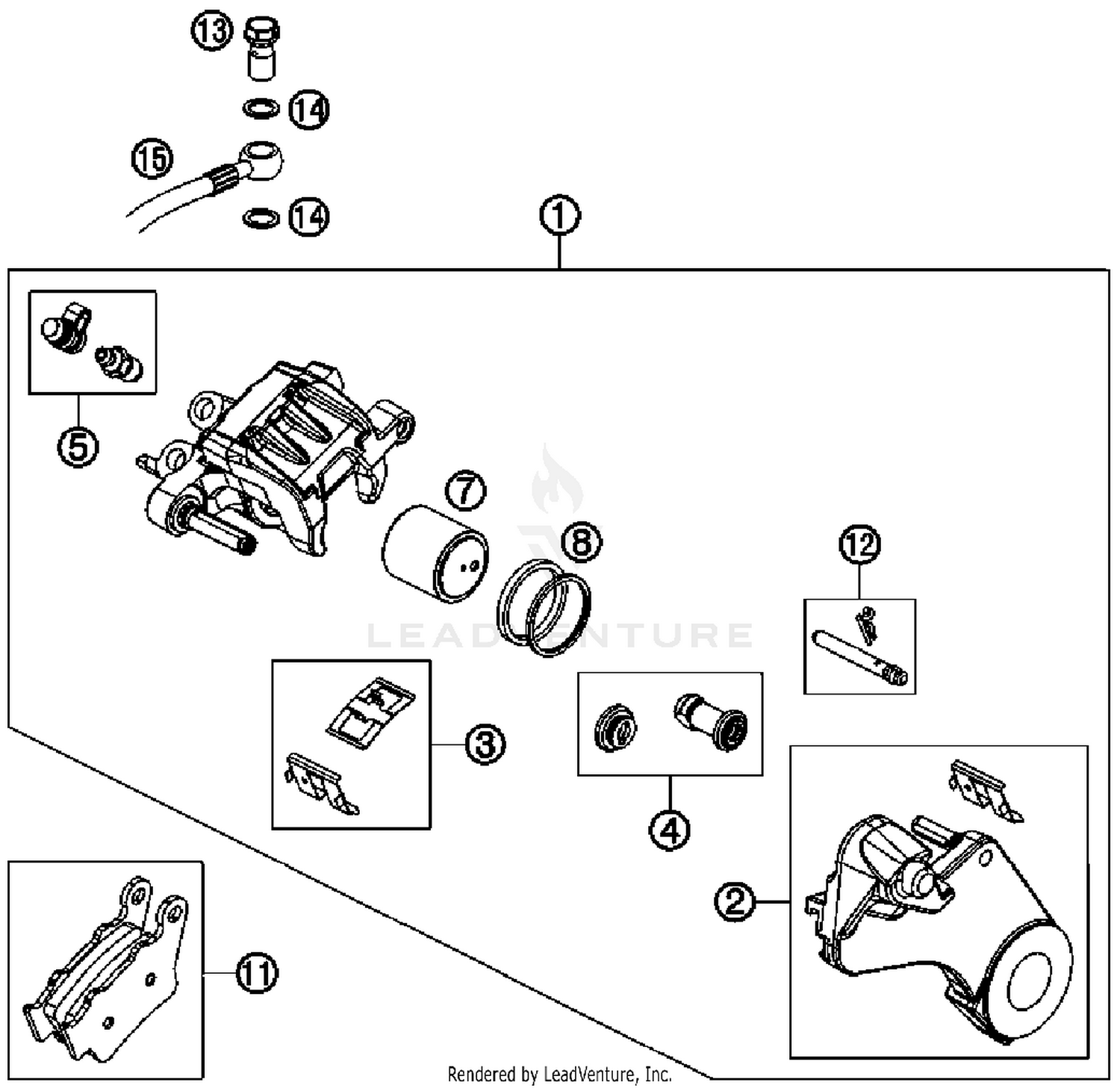

Brake Caliper Rear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Rear brake caliper without lining
7651308000101
Superseded by 7601308010101
|
$310.89 | ||
|
Unavailable |
|||
|
#2
BRAKE CALIPER SUPPORT REAR 08
76513075000
|
$139.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RETAINING SPRING SET
54613311200
|
$16.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUP SET SHORT
54613218000
Superseded by 54613218100
|
$25.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
BLEEDER SCREW WITH CAP
61013020200
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKE PISTON 32MM
50313083000
|
$34.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
REPAIR KIT SEALING RINGS 32MM
50313081000
|
$17.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE PAD SET REAR SBS-S-40GF
75013090000
|
$49.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT SET 05
61013082000
|
$20.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
banjo bolt M10x1x19 black
54813020100
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
sealing ring DIN 7603 10x14x1
0603100141
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRAKE HOSE REAR 805MM
76513072000
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
