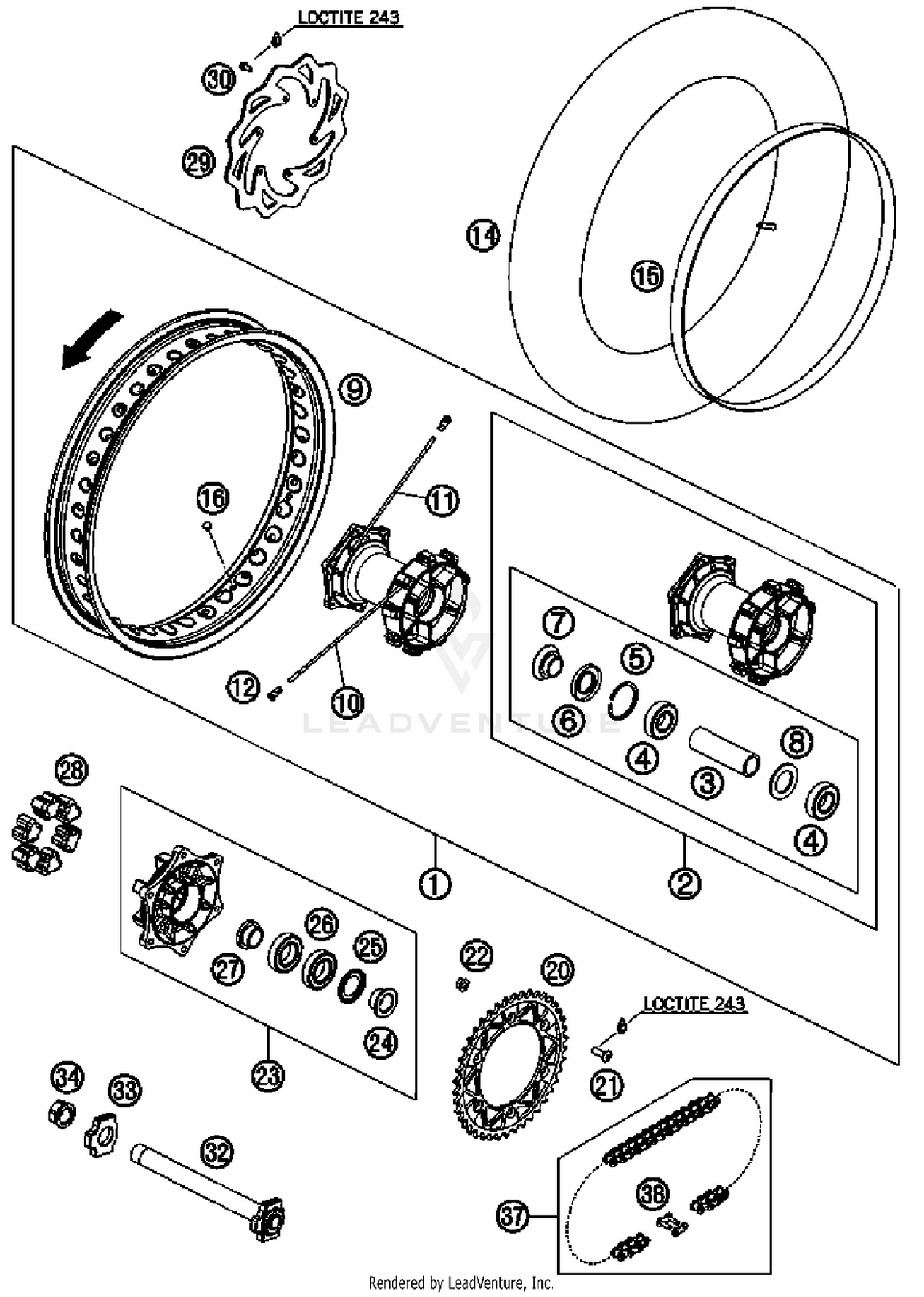

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL CPL. 2,50X18'' 08
7651000104430
|
$857.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
REAR WHEEL HUB CPL.
75310010044
Superseded by 7531001004491
|
$324.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING SPACER TUBE L=106MM 07
75310011000
|
$22.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
GR.BALL BEAR. 6205-2RSHC3HMTF7
0625062052
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP DIN0472-52X2
0472052200
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT SEAL RING 30X52X7
0760305271
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER BUSH. REAR WHEEL R/S 06
60110013000
|
$24.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER RING 03
60010015000
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIM 2,50X18'' DID BLACK 08
7651007000030
|
$339.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPOKE M5X217 -17G 18'' INOX
75310073217
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPOKE M5X207-27G 18'' INOX
75310173207
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
Spoke nipple Quadrax M5
58309072000
Superseded by 60310072200
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE 110/100C-18
50310075100
|
$35.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIM BAND REAR 2MM 2003
58410073200
|
$10.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG FOR RIM
55003135000
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPROCKET STEALTH 42T 07
75010051042
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPROCKET 45T 08
75010051045
|
$71.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
SELF LOCKING NUT M8 10.9
54310086200
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPROCKET SUPPORT CPL. SILVER
75010050044
Superseded by 7501005004491
|
$234.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER BUSH. SPROCKET SUPP. 06
60110012000
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NILOS RING 6006AV
60110016000
|
$10.39 | ||
|
Available to order. Add to View Price |
|||
|
#26
BALL BEARING 6006 DDU2CG23S6NM
0625060060
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER BUSH. SPR. SUPP. IN. 06
60110014000
|
$18.59 | ||
|
Available to order. Add to View Price |
|||
|
#28
RUBBER DAMPING BLOCK '91
54610459000
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRAKE DISC REAR D=240MM
76510060000
|
$203.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
WHEEL SPINDLE CPL.
75310085044
Superseded by 75310085144
|
$84.39 | ||
|
Available to order. Add to View Price |
|||
|
#33
CHAIN TENSIONER R/S LC8 03
60010084000
|
$24.39 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR NUT WH. SPINDLE REAR 03
60010086000
|
$15.59 | ||
|
Available to order. Add to View Price |
|||
|
#37
CHAIN DID 118 LINKS
76510065116
Superseded by 78010267118
|
$134.39 | ||
|
Available to order. Add to View Price |
|||
|
#38
RIVET LINK FOR 76510065116
76510066000
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
