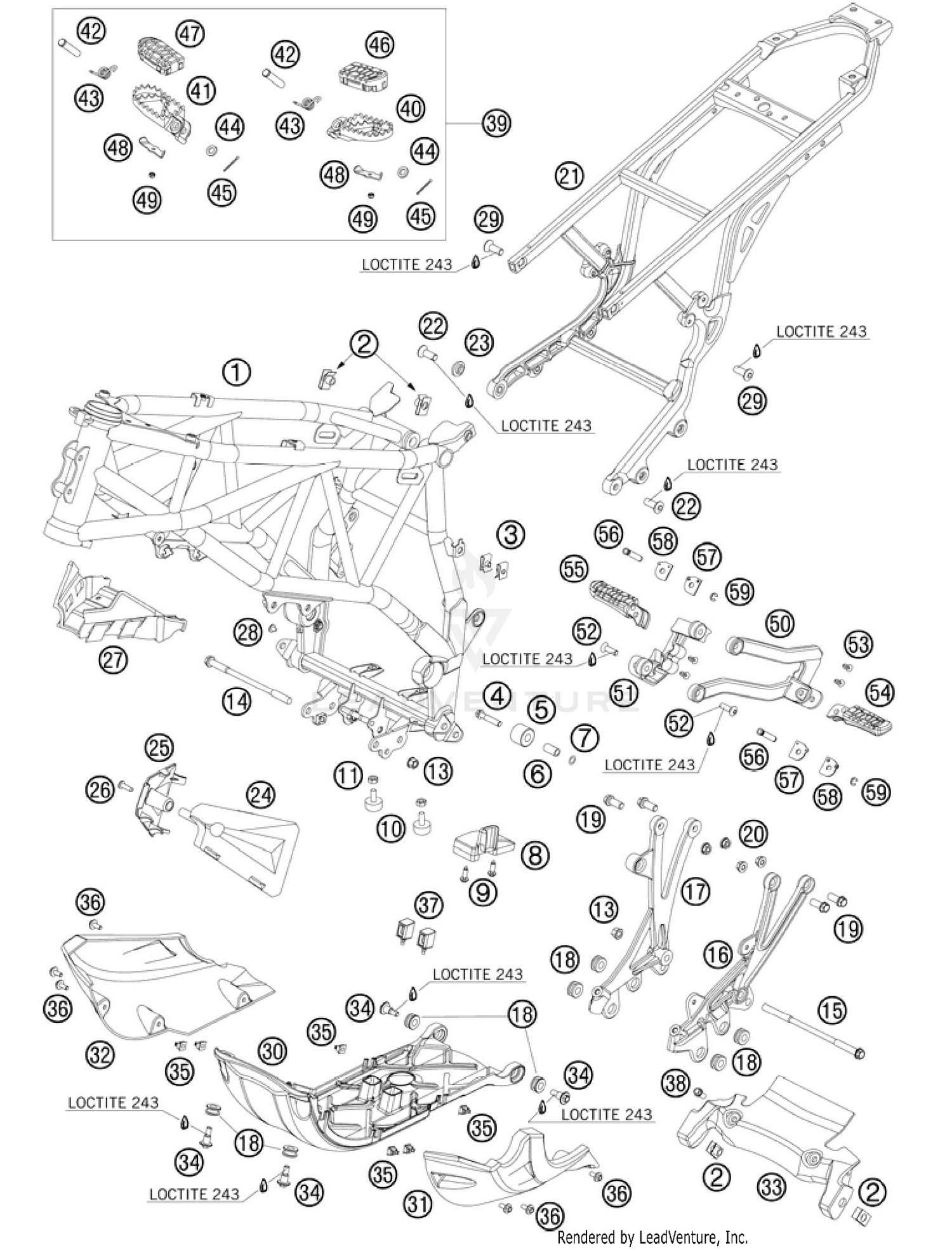

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME "FD07" ORANGE
6010300110004
|
|||
|
Unavailable |
|||
|
#2
RANGE CHANGE METAL NUT M8
54603048000
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
clip nut M6
54603048100
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
HH COLLAR SCREW M8X40 TX40
0025080406
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN ROLL 12X29X22,5 '98
58403060000
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH CHAIN ROLL 8X12X23 '98
58403060065
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK WASHER 8MM
36003014000
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
CHAIN SLIDING BLOCK 05
60004076100
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW F. PLASTIC K60X20AL SW6
0017060204
Superseded by 0017060206
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUMP RUBBER M8X25MM
58303070100
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
ENGINE BRAC. SCREW M10X172 03
60003013000
|
$15.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
ENGINE BRAC. SCREW M10X206 03
60003014000
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
ENGINE SUPPORT LEFT
6000300500001
|
|||
|
Unavailable |
|||
|
#17
ENGINE SUPPORT RIGHT 07
6000300600001
Superseded by 6000300600001S
|
$170.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
RUBBER SLEEVE 03
60003098000
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHCS M10x24 TX45
0035100249
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
SUB FRAME BLACK 09
6000300200033
|
$819.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
COUNTERSUNK SCREW ISA45 M10X23
0019100239S
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR BUSHING 10X15X25X4 03
60003001051
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER FRAME L/S FRONT 05
62503085000
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER FRAME R/S FRONT 05
62503086000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW FOR PLASTIC K50X18 T20
0081050181
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPLASH PROTECTOR FRAME 05
60003087000
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#29
COUNTERSUNK SCREW ISA45 M10X28
0019100289S
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#30
UNDERRIDE PROTECTION 10
6000309100092
|
$121.79 | ||
|
Available to order. Add to View Price |
|||
|
#31
UNDERRIDE PROTECTION LEFT 06
60003092100
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#32
UNDERRIDE PROTECTION RIGHT 06
60003093100
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
LOWER TANK HOLDER FRONT 10
6000309400092
|
$154.08 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR SCREW M8 03
60003097000
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#35
CAGE NUT M6 SL 4MM 03
60003095000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#36
HH collar screw M6x15 TX30
0024060156
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#37
VIBRATION DAMPER 03
60003096000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#38
HH COLLAR SCREW M8X16 TX40
0025080166
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#39
FOOTPEG LS+RS CPL.
60003040033
Superseded by 60003040133
|
$157.29 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST L/S 08
59003040250
Superseded by 78003040050
|
$46.69 | ||
|
Available to order. Add to View Price |
|||
|
#41
FOOTREST R/S 08
59003041250
Superseded by 78003041050
|
$46.69 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#43
FOOTREST SPRING L/S & R/S
54603041000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#44
washer DIN 125 A 10.5
0125100003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#45
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#46
FOOTREST RUBBER FRONT L/S 03
60003040010
|
$23.69 | ||
|
Available to order. Add to View Price |
|||
|
#47
FOOTREST RUBBER FRONT R/S 03
60003041010
|
$23.69 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLOSING PANEL FRONT L/S R/S 03
60003044010
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#50
FOOTREST BRACKET REAR L/S 09
6000304800033S
|
$146.09 | ||
|
Available to order. Add to View Price |
|||
|
#51
FOOTREST BRACKET REAR R/S 09
6000304900033S
|
$146.09 | ||
|
Available to order. Add to View Price |
|||
|
#52
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#53
PLASTIC CAP SFL10
54403135000
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#54
FOOTREST CPL. L/S REAR 03
60003050000
|
$65.69 | ||
|
Available to order. Add to View Price |
|||
|
#55
FOOTREST CPL. R/S REAR 03
60003051000
|
$66.19 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT FOR FOOTREST REAR 03
60003044000
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
ENGAGE PANEL FOOTREST L/S 03
60003152000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#58
ENGAGE PANEL FOOTREST R/S 03
60003052000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#59
retaining washer DIN 6799 - 6
0799060003
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
