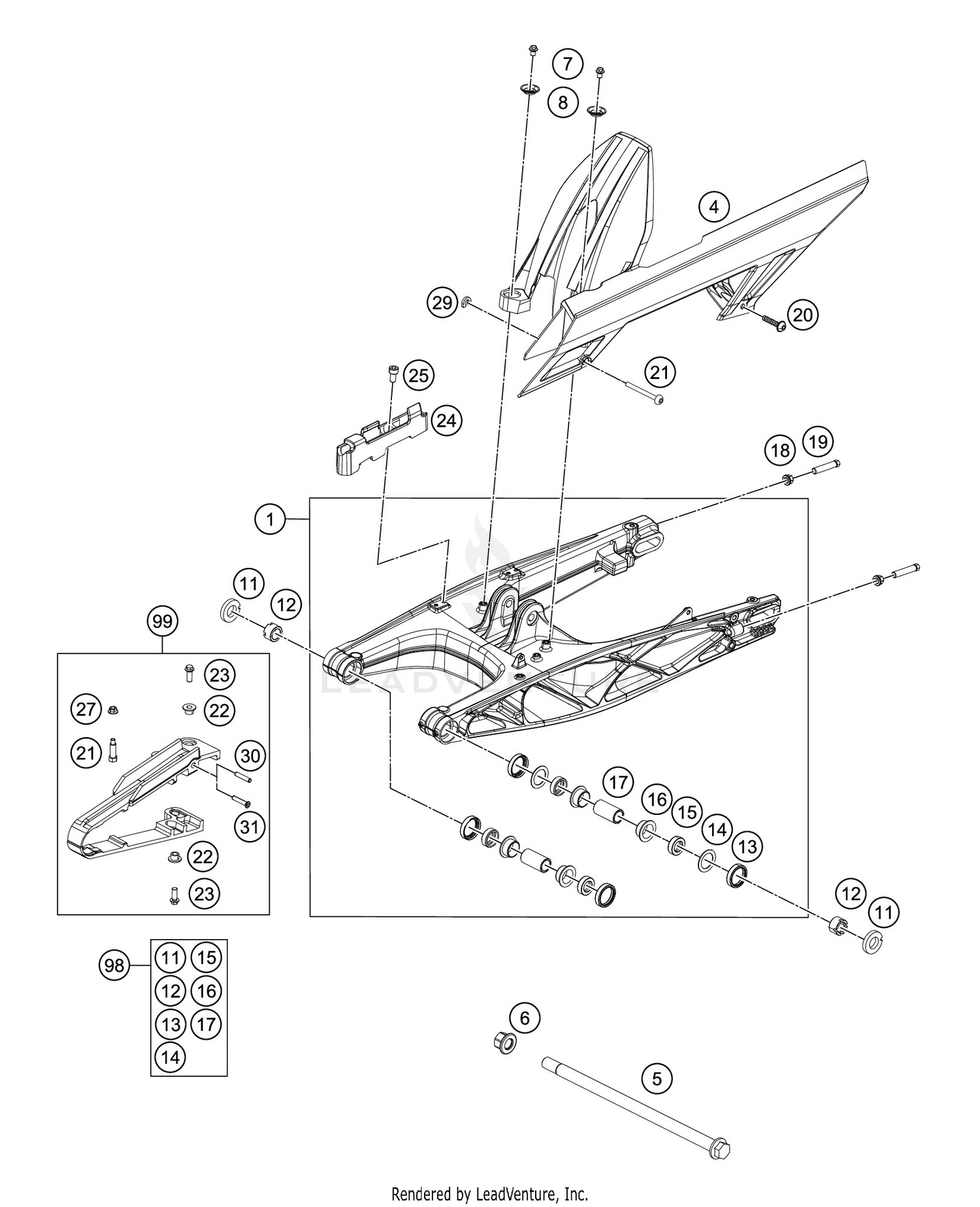

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Swing Arm Sub Assy Duke 390 MY20
90504030044
Superseded by 28104030044BA
|
$467.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
Chain cover
93004060100
|
$29.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
Shaft swing arm L=299mm
90104037000
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLANGED NUT M14X1,5
90104038000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH COLLAR SCREW M6X8 SW8
J025060083
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
Supporting shell
93004051000
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
Special wahser
93004042000
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
swingarm adjusting ring
90104046000
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL RING 25X32X7
90104034001
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
Thrust washer 22.2x31.7x1
90104036000
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
cup for radial shaft seal
90104034000
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
Igus plain bearing
90104031000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
sleeve bushing 15.1x20x38
90104032000
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
flanged hex nut M10x1.25 WS13
90104010002
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT HEX M10X1,25X50 WS10
90104040000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
Plastic screw 6x30
93004064000
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
hexagon socket screw M5X0.8X55
93004065000
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
chain slider bushing
90604062000
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
HH COLLAR SCREW M6X16 SW8
J025060169
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
Support
93013047000
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
AH SCREW M5X10
J912050101
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#27
HH COLLAR NUT
90204060001
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER CHAIN SLIDING GUARD
90504067000
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#30
SLEEVE CHAIN GUARD
90104070020
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
SLEEVE CHAIN GUARD
90904070020
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#98
SWINGARM REP. KIT 11-17
90104230010
|
$74.59 | ||
|
Available to order. Add to View Price |
|||
|
#99
CHAIN GUARD KIT 250/390
90104066210
|
$31.89 | ||
|
Available to order. Add to View Price |
|||
