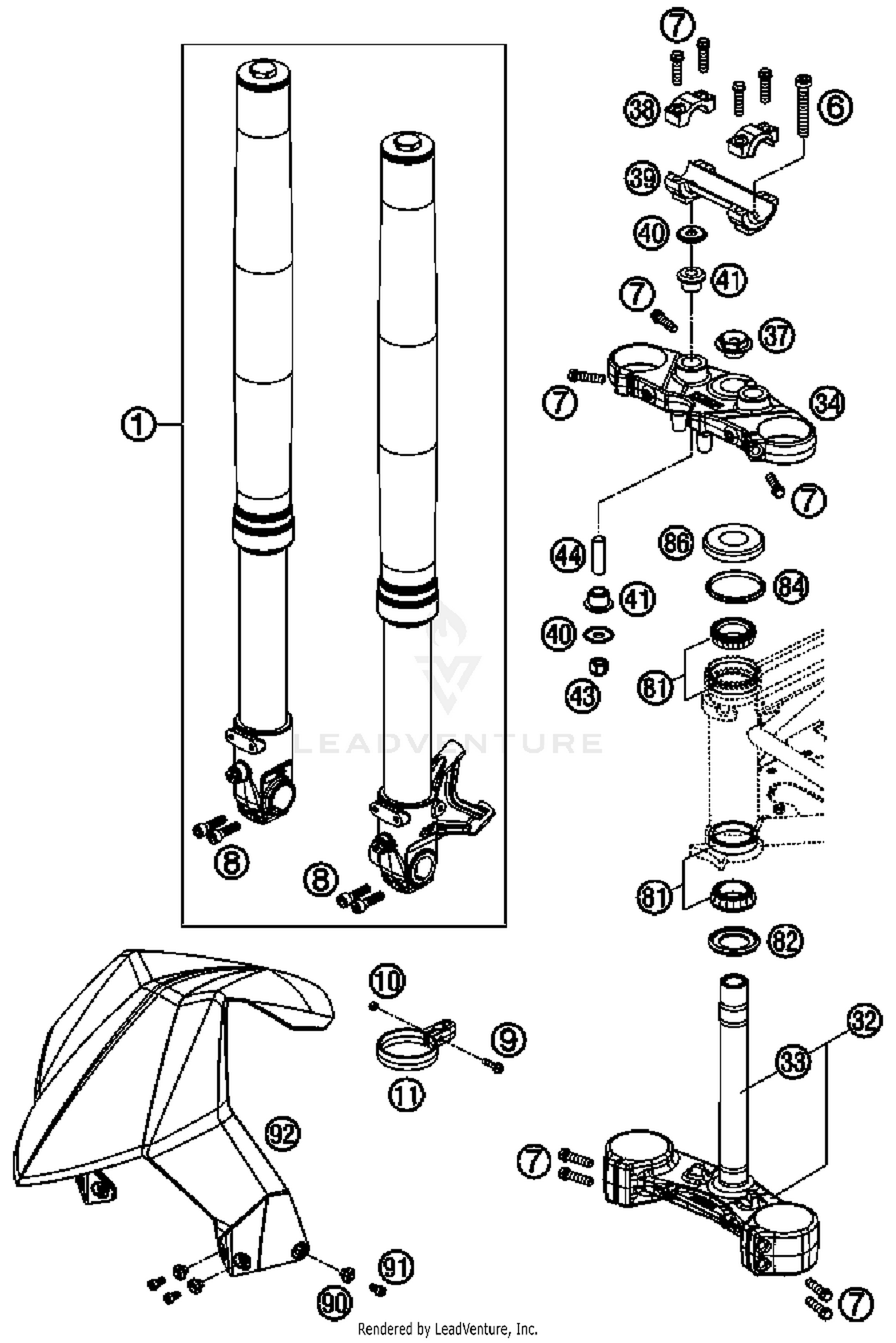

Front Fork, Triple Clamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK KTM 690 DUKE 2009
14187D09
Superseded by 14187E0901
|
$2,899.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH SCREW DIN6912-M10X60
0012100603
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH collar screw M8x30
0025080306
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
AH SCREW DIN0912-M 8X30
0912080303
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
HH collar screw M5x20 TX30
0025050206
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP BRAKE HOSE 07
75001070000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOTTOM TRIPLE CLAMP CPL. 07
7500103203201S
|
$423.69 | ||
|
Available to order. Add to View Price |
|||
|
#33
FORK TUBE LC8 ADV 03
60001033000
|
$69.69 | ||
|
Available to order. Add to View Price |
|||
|
#34
TOP TRIPLE CLAMP 54MM 07
7500103403201S
|
$244.85 | ||
|
Available to order. Add to View Price |
|||
|
#37
Steering head screw M20x1.5 SW=27
54801036000
Superseded by 54801036300
|
$11.99 | ||
|
Unavailable |
|||
|
#38
HANDLEBAR CLAMP 28MM 07
5900103830001S
|
$29.69 | ||
|
Available to order. Add to View Price |
|||
|
#39
Handlebar mount 28ámm 07
5900103920001S
Superseded by 5900103930001
|
$157.49 | ||
|
Unavailable |
|||
|
#40
washer 10.5x32x2
56401042000
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#41
rubber bushing
56401040000
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#43
SELF LOCK.NUT DIN0982-M10 HIGH
0982100003
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#44
spacer tube 10.2x12x38
61001041000
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#81
TAPERED ROLLER BEARING CPL. 06
54201081100
|
$54.59 | ||
|
Available to order. Add to View Price |
|||
|
#82
O-RING SUPPORT W. SEALING LIP
54601084100
Superseded by 77701084000
|
$20.69 | ||
|
Available to order. Add to View Price |
|||
|
#84
STEARING HEAD GASKET TOP
54601184000
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#86
STEERING HEAD COVER 05
61001086000
|
$14.89 | ||
|
Available to order. Add to View Price |
|||
|
#90
BUSHING MUD FLAP 07
75001094010
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#91
AH SCREW DIN6912 M6X12
0012060123
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#92
FENDER FRONT BLACK MET. 08
7560801000040A
|
$212.30 | ||
|
Available to order. Add to View Price |
|||
