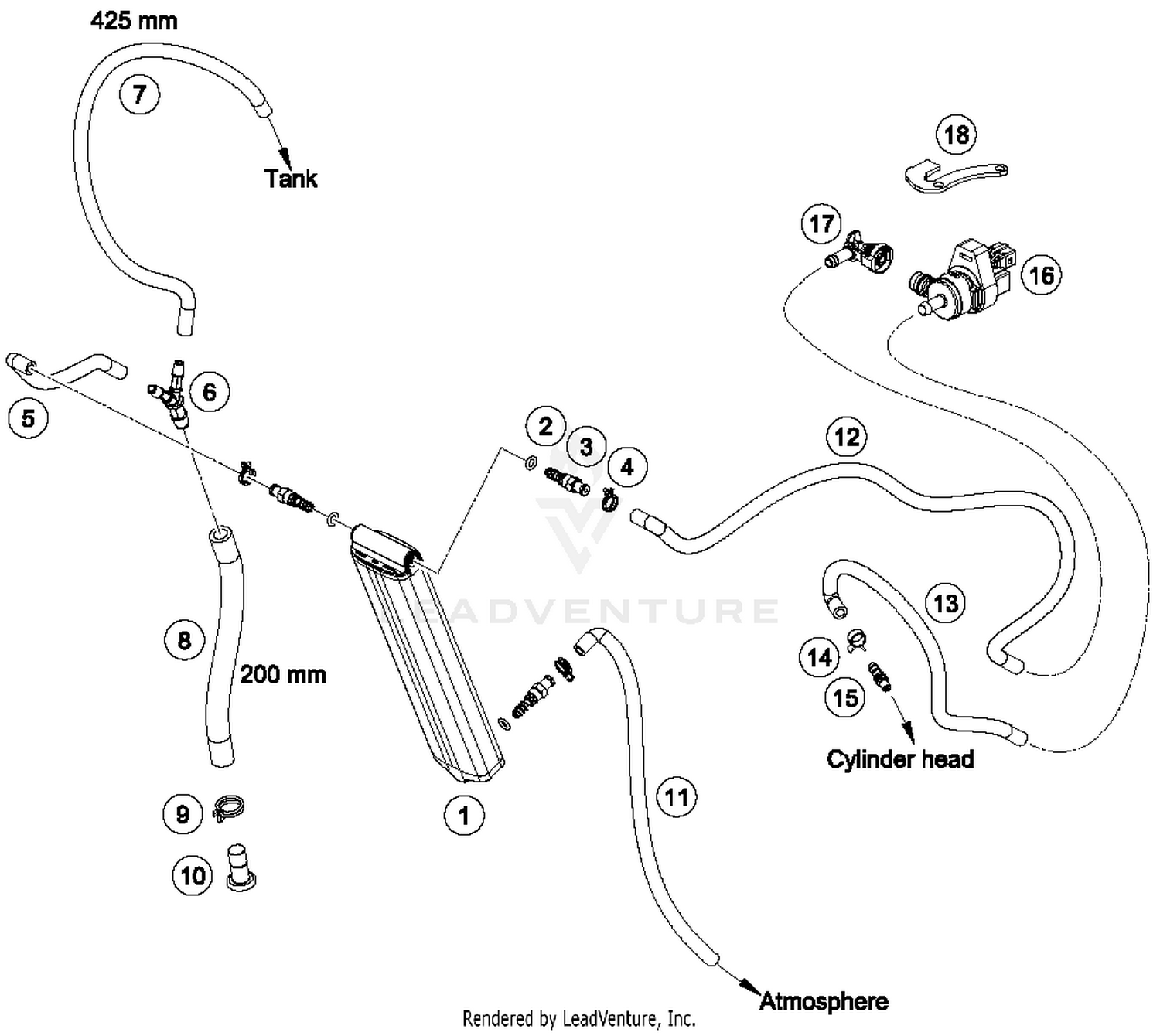

Evaporative Canister Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Activated charcoal filter
79615001000
Superseded by 79615001100
|
$57.08 | ||
|
Unavailable |
|||
|
#2
O-RING 6,00X2,00 NBR 70
0770060020
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hose connection cmpl.
79615019000
Superseded by 79615019133
|
$13.52 | ||
|
Unavailable |
|||
|
#4
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
PREFORMED HOSE 6X10 ECO
79615021000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
Y-CONNECTOR YS 6-10-6
61315028100
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE EPA D=6/10 L=2000MM
78015019000
|
$73.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE EPA D=10/16 L=2000MM
78015119000
|
$287.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
YDNAC-CLAMP 10173 (16MM) '98
58431082100
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw plug ACF
61315026000
Superseded by 61315026100
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
PREFORMED HOSE 6X10 ECO
79615025000
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
PREFORMED HOSE 6X10 ECO
79615023000
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
PREFORMED HOSE 6X10 ECO
79615024000
|
$10.66 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP YDNAC 10096F (9,6MM)
59007017000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
VACUUM CONECTION M6/0,5MM
60036023100
|
$33.21 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE FOR CARBON CANISTER 07
61115015000
|
$75.23 | ||
|
Available to order. Add to View Price |
|||
|
#17
FITTING PIECE NQV2 NW7 90°
61115016000
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET AKF-VALVE
79215002000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
