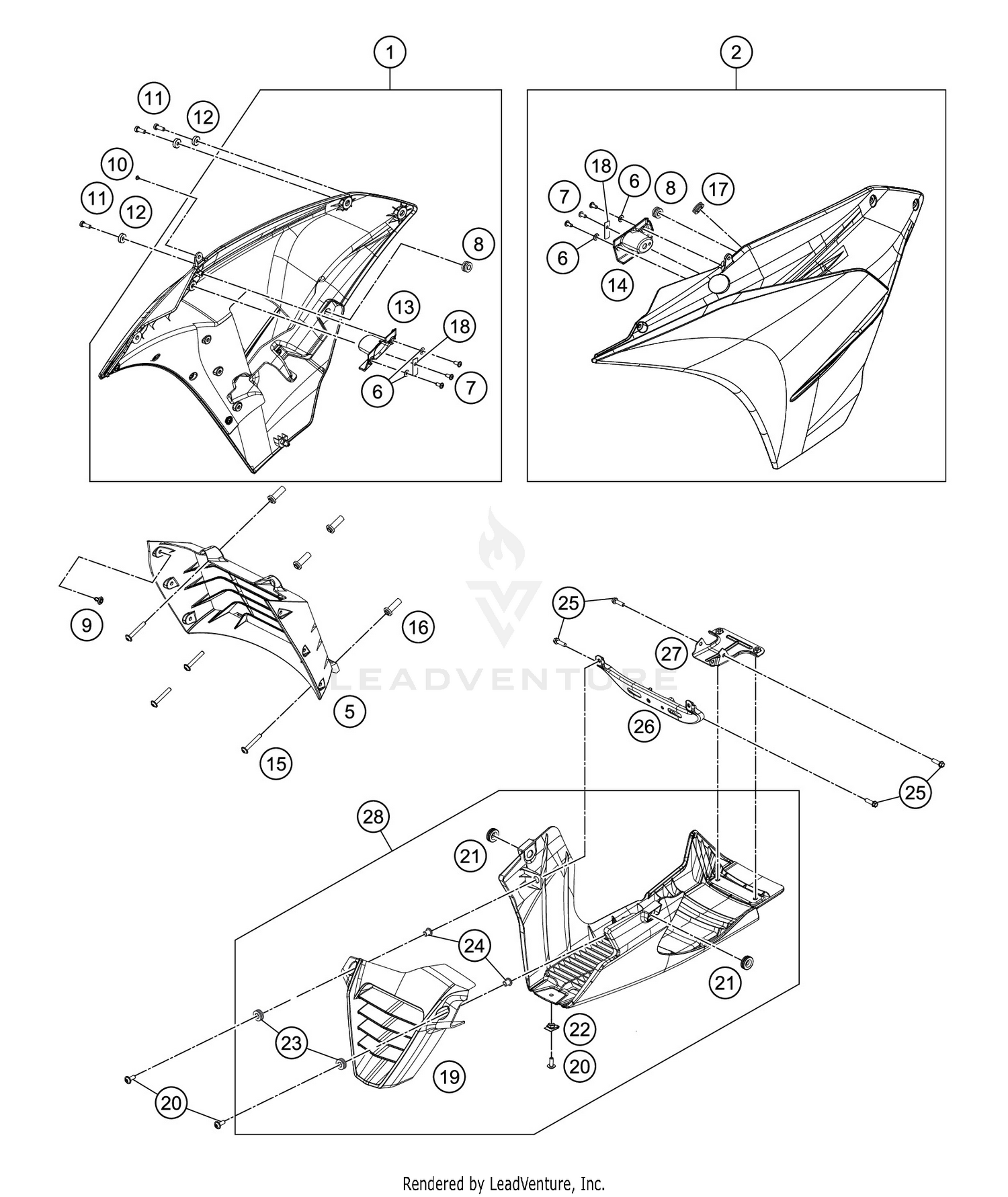

Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Kit side fairing rh cpl. US17
9050855104430
|
$259.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
Kit side fairing lh cpl. US17
9050855004430
|
$259.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
AIR INTAKE
90508011000
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER D=5,5 BLACK
90514007010
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW K50X12 T20
90508041010
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER SLEEVE
90507040001
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
EXPANDING RIVET
90114062001
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
SOCKET HEAD BOLT M6X1X8
90508006004
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT SOCKET M6X1XL
90808043001
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER GFN
90508045000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
PANEL BLINKER MTG FR R/S
90514532000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
PANEL BLINKER MTG FR L/S
90514531000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
AH SCREW M6X42
90508006002
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH RADIATOR MTG
90503007001
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90508010060
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET BLINKER CABLE
90511094000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BELLY PAN
93808020100
|
$20.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
AH SCREW M6X1X20
90508006003
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET SIDE FAIRING
90508055010
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
clip nut
90103097000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET BELLY PAN
93808026100
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
SLEEVE
93808027000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
HH COLLAR SCREW M6X20 SW10
J025060203
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET BELLY PAN FRONT
93808026001
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET BELLY PAN REAR
93808027001
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
Belly pan assly
9380802003330
|
$89.42 | ||
|
Available to order. Add to View Price |
|||
